Delta ADP-330AB Notebook power supply
One spare part number - 3 different notebook power supply units
Are you looking for a power supply with the part number ADP-330AB? Then you need to be careful, because this 330 watt power supply is available in 3 different plug variants, which cannot be distinguished at first glance and are not compatible with each other!
![[Translate to Englisch:] ADP-330AB](https://cms25.ipc-computer.de/fileadmin/user_upload/Landingpages/Produkt_LP/Partnummer_Gruppen/Steckerbilder/steckerbild-3.jpg "[Translate to Englisch:] ADP-330AB")
| ADP-330AB Plug | Length (A) | Exterior Ø (B) | Inside Ø (C) |
|---|---|---|---|
| Variant 1 | 6,5mm | 10,0mm | 1,0mm |
| Variant 2 | 12,5mm | 7,4mm | 5,0mm |
| Variant 3 | 10,5mm | 6,0mm | 3,7mm |
We make sure that you get the right power supply unit for you
It may happen that you order a certain part number and receive a power supply unit with a different part number. This is because the power supply unit supplied is a replacement or a newer generation of the model originally ordered. The performance and compatibility remain the same!

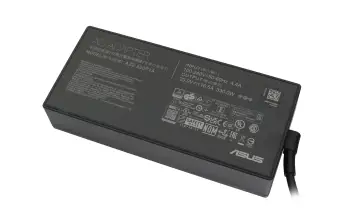

ADP-330AB Variant 1
Alternative for ADP-330AB D Delta Electronics AC-adapter 330.0 Watt from LiteOn
plus shipping charges
ADP-330AB Variant 2
Alternative for ADP-330AB D Delta Electronics AC-adapter 330.0 Watt from LiteOn
plus shipping charges
ADP-330AB B Delta Electronics AC-adapter 330.0 Watt large
plus shipping charges
Plug dimensions - 12.7mm (A) / 7.4mm (B) / 5.0mm (C)
Two power supply models are available. Choose between the Dell power supply unit from Delta Electronics or the power supply unit from LiteOn, which is equipped with an alternative power supply plug. The power supply unit offers the same quality and compatibility as the original at an affordable price.
ADP-330AB Variant 3
Plug dimensions - 11.2mm (A) / 6.0mm (B) / 3.3mm (C)
This power supply is particularly suitable for Asus devices. This power supply is ideal for gaming devices such as the Asus ROG Strix GL702ZC or the Asus ROG Strix Scar 18 G834JZ.
Still unsure? - How to find the right power supply for you
Two ways to find a power supply unit
There are two ways to find your power supply unit. One is via the notebook model and the other is via the dimensions of the power supply plug. We recommend using the model, as experience has shown that this is the easiest and safest way.
1. About the model
Using the model name or model number, you can easily search for your notebook via our search bar, where the matching power supply units for your notebook will be suggested. If you have difficulties finding the model name or model number, click here.
2. Via the power supply plug
Simply take a caliper or ruler and measure the plug according to the following dimensions:
Plug outer diameter / Ø (B)
Plug diameter inside / Ø (C)
Use our diagram as a guide to find the right dimensions for you!
The plug length (A) is not always decisive!
You have concerns because the plug length is not identical? No problem! Sometimes plug lengths differ, but this is no cause for concern. The internal and external dimensions are important. The inner dimension must not differ by more than 0.01 mm.
Still unsure?
For further support, please contact our customer service. You can reach us at any time via this contact form.
Find out more in our FAQs to get answers to your questions.
Why you should not order a notebook power supply via the part number
Notebook power supply units are among the most sought-after spare parts of all. Nevertheless, there are often problems when ordering.

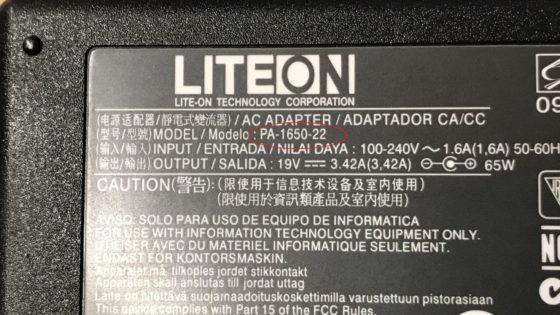

Call for help from a customer: Power supply plug does not fit, despite correct product number
Unfortunately, the plug on my new notebook power supply no longer fits into the notebook - even though I ordered using the spare part number of the old power supply - how can that be?
