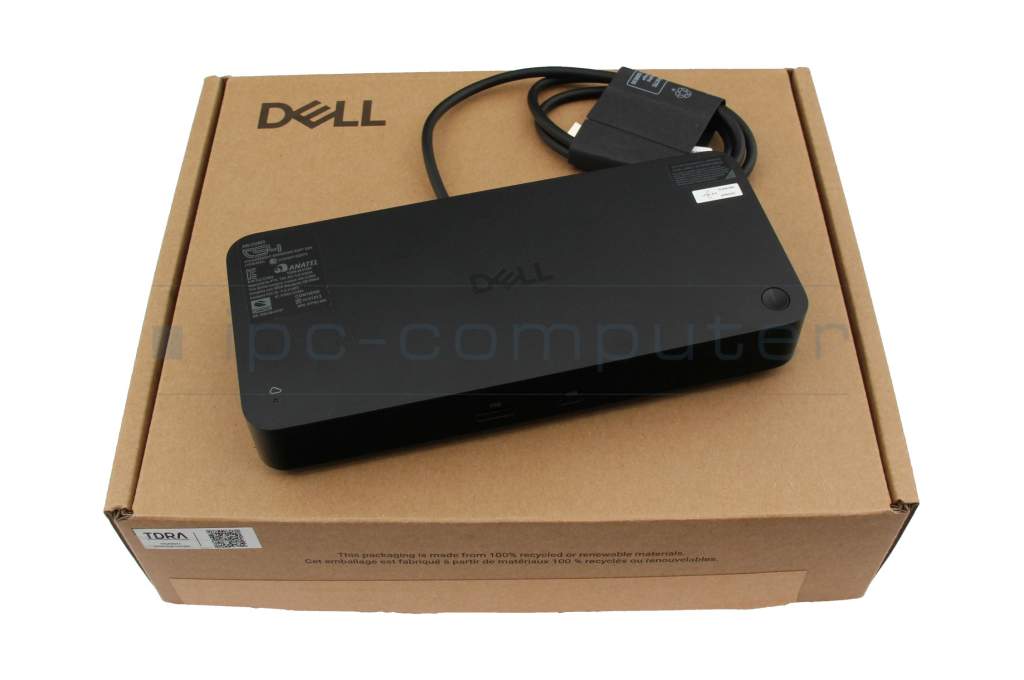

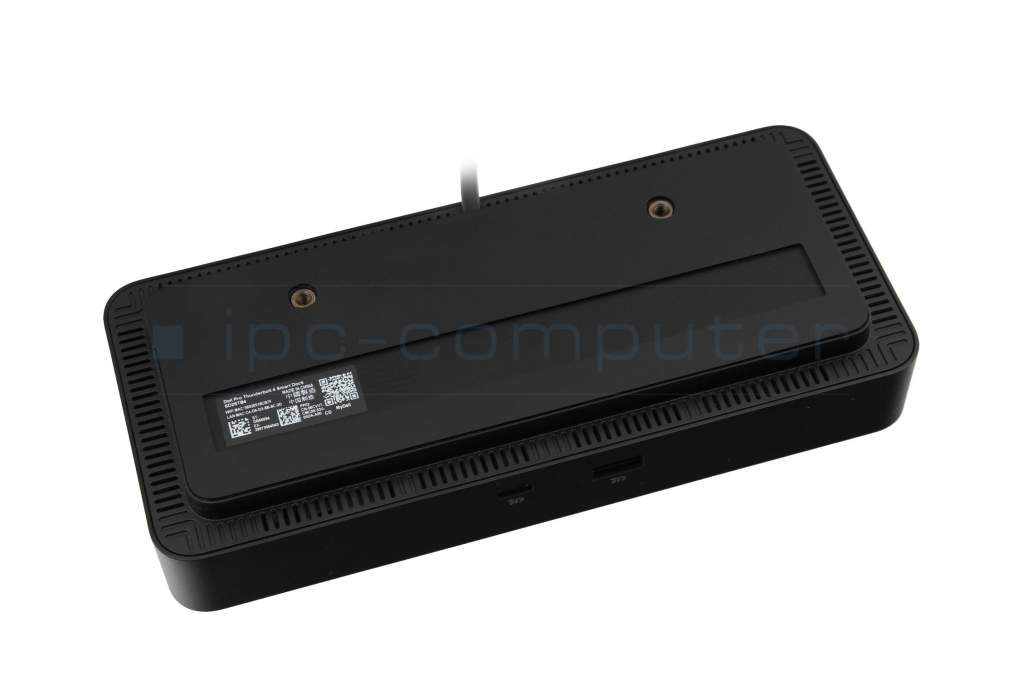

SD25TB4 Dell Pro Thunderbolt 4 Smart Dock - SD25TB4

Manufacturer: Dell
Item Number: SD25TB4
Sub-Partnumbers: DELL-SD25TB4, K23A, K23A002, SD25TB4_130W,
Safety information: Sicherheits- & Herstellerkontakt-Informationen

Common data

Condition: New

Technical Data

Connexion to the laptop: Thunderbolt 4

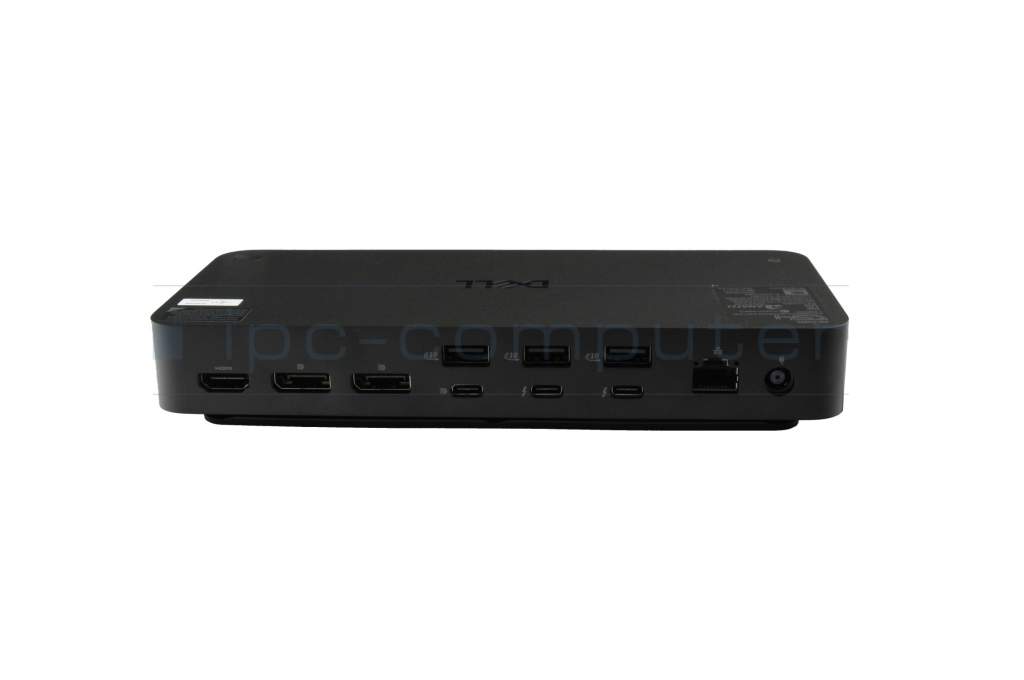

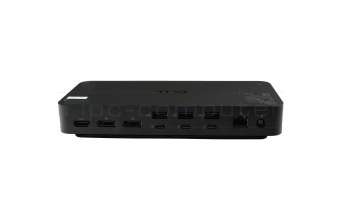

Connectors: 1x DC-In (Power supply)
1x Ethernet RJ-45 2.5Gbps
1x HDMI 2.1

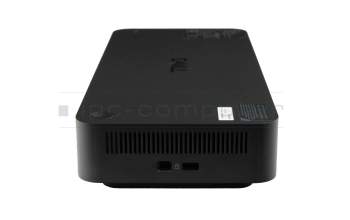

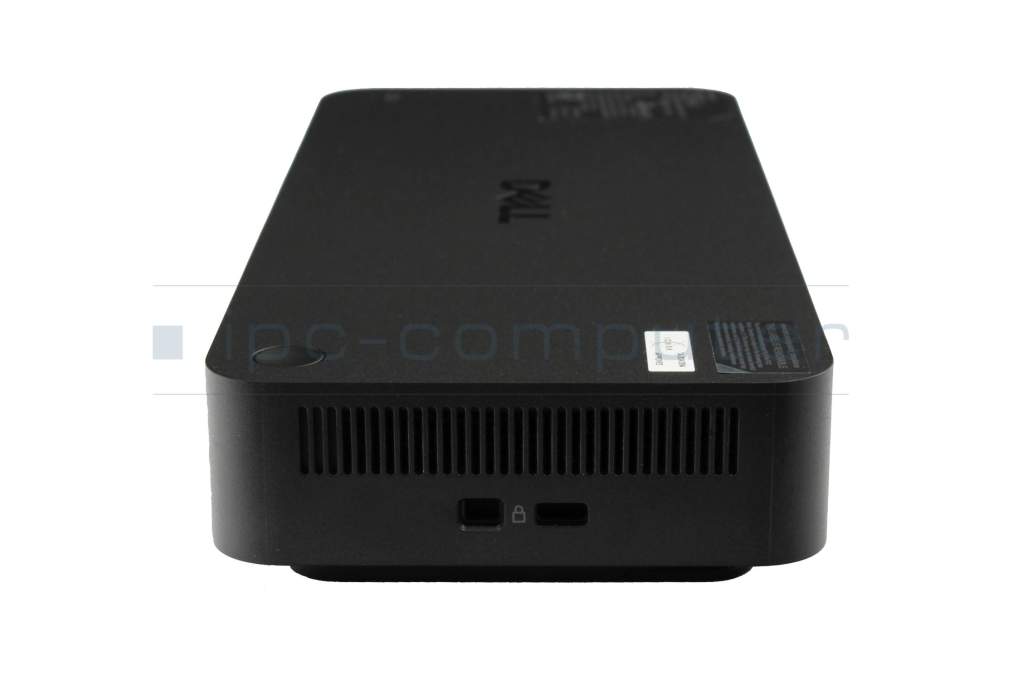

1x Kensington-Lock
1x USB-C + Data + PowerDelivery
1x USB-C 3.2 Gen 2 + PowerDelivery + DisplayPort
2x DisplayPort 1.4
2x Thunderbolt 4
Max. resolution of external monitors: 1x 8K - 7680x4320 @ 30Hz
1x UHD - 3840x2160 @ 60Hz
2x 4K2K - 4096x2160 @ 60Hz
3x UHD - 3840x2160 @ 60Hz
4x QHD - 2560x1440 @ 60Hz
4x WQHD 3440 × 1440 @ 120 Hz

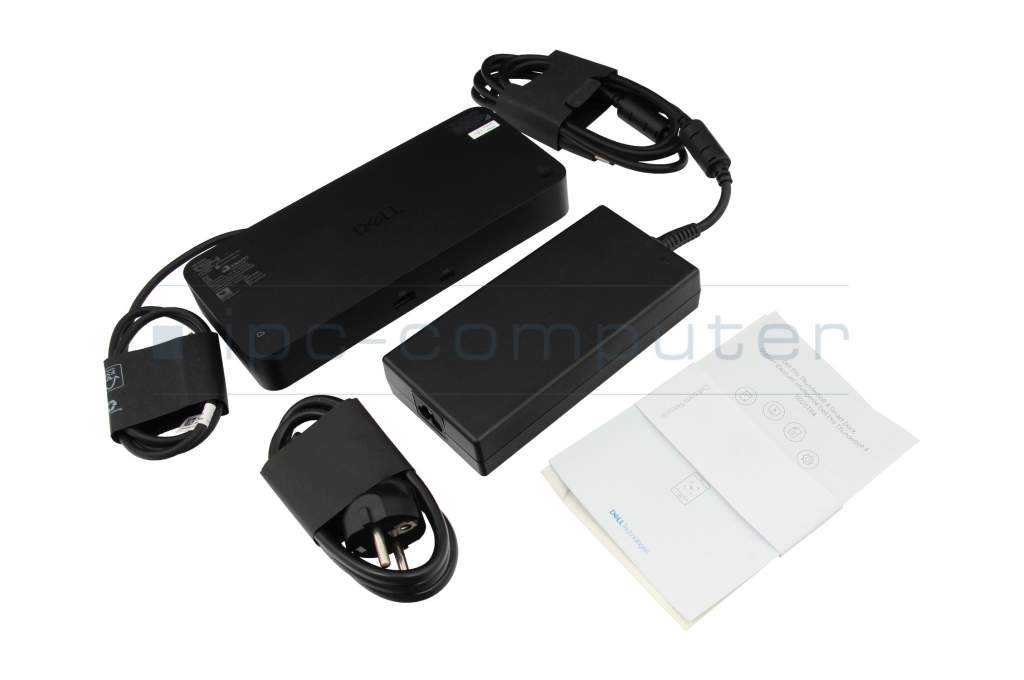

Delivery includes: AC-Adapter
Manual
Port Replicator
Power cable
Safety Information

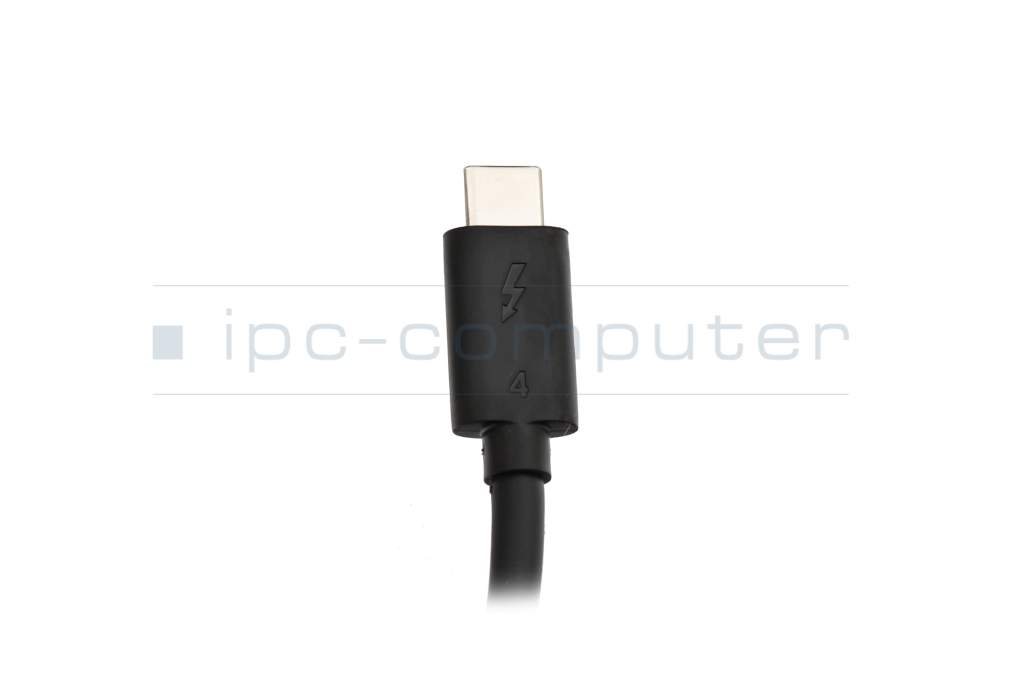

USB-C cabel
Included ac-adaptor: 180W
Compatible operating systems: ChromeOS
Linux / Ubuntu
Mac OS
Red Hat Enterprise Linux
Windows 10 (32bit/64bit)
Windows 11
Length / Width / Hight: 20.5 cm / 9 cm / 3.5 cm

Dell Pro Thunderbolt 4 Smart Dock (SD25TB4, 210-BRFL, 180W) – Technical Specifications

Type: Thunderbolt 4 docking station
Compatibility: Dell Latitude, XPS, Precision, and other notebooks with Thunderbolt 4/USB4 port (partially backward compatible with Thunderbolt 3)
Power supply: 180 W power adapter, up to 130 W power delivery for compatible notebooks
Maximum number of monitors: Up to 4 external monitors (depending on notebook GPU and operating system support)
Maximum resolutions:
- Brief summary/simplification (for details, see manual):
  - Without DSC:
    - 1 display: Up to 5K@60Hz
    - 2 displays: Up to 4K@60Hz per display
    - 3 displays: Up to WQHD@60Hz
    - 4 displays: Up to QHD@60Hz
  - With DSC:
    - 1 display: Up to 8K@60Hz
    - 2 displays: Up to 6K@60Hz or 5K@120Hz
    - 3/4 displays: Up to 4K@60Hz or WQHD@120Hz

Please note:

Combinations and actual support depend on the device, connection (HDMI, DP, Type-C) and, if applicable, CPU (for DSC).

Supported technology: Display Stream Compression (DSC), Multi-Stream Transport (MST)

Special features

Supports Dell ExpressCharge and ExpressCharge Boost (faster charging for supported Dell notebooks)
Wired network connection via a single cable
Firmware updates possible via Dell Firmware Update Utility
Wake-on-LAN, PXE boot, MAC address pass-through (on supported Dell devices)
1 × Noble Security Slot / Kensington Slot
