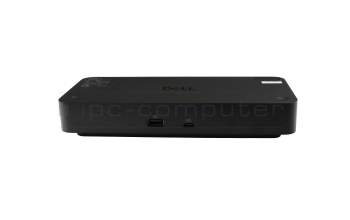

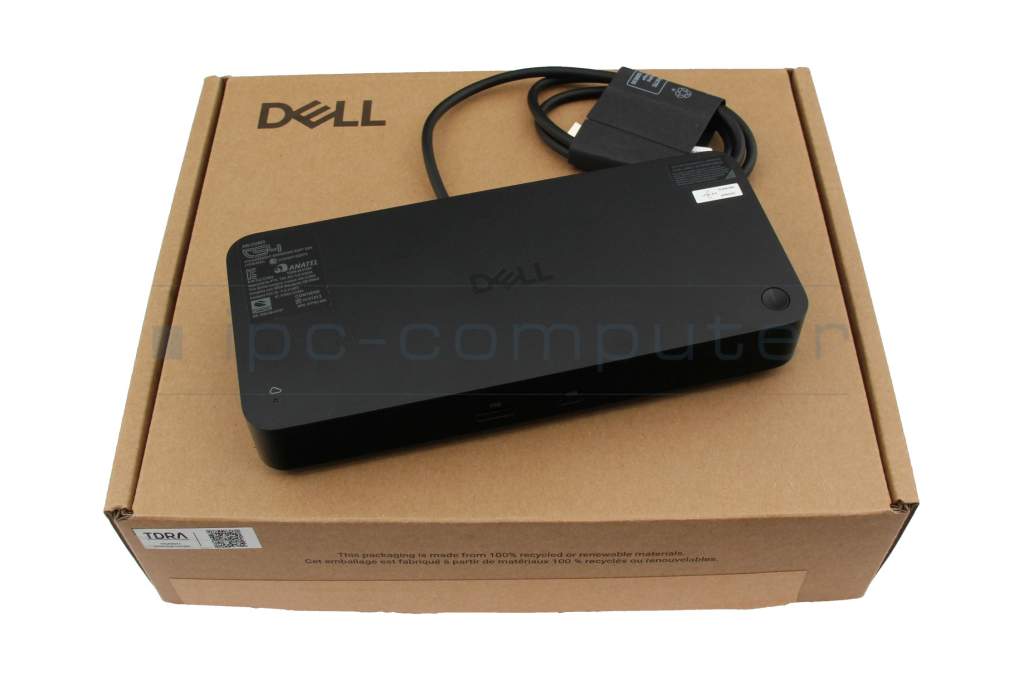

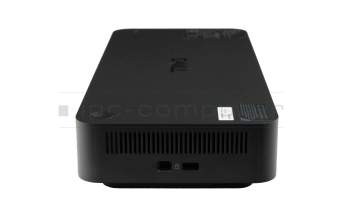

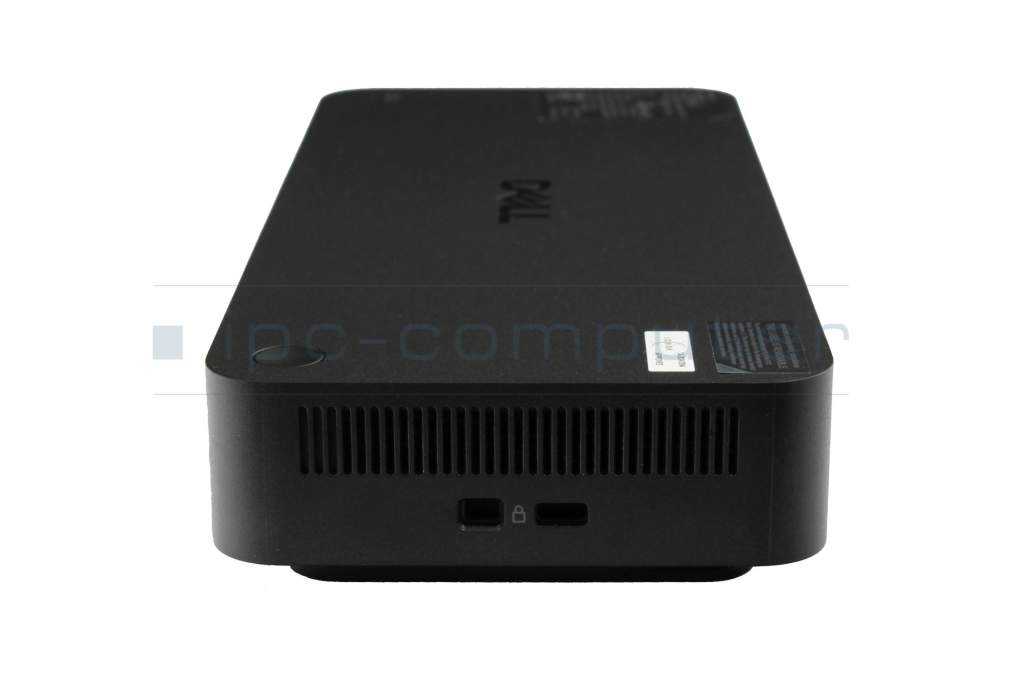

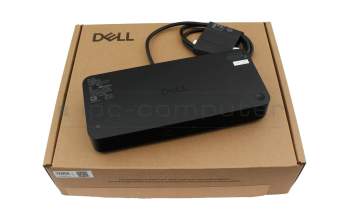

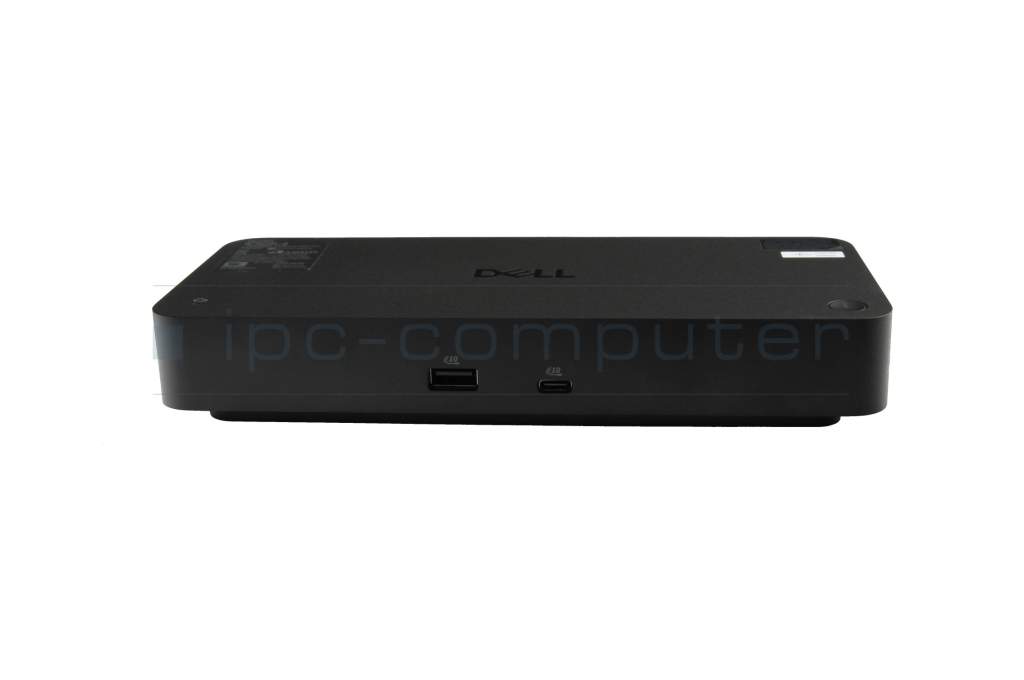

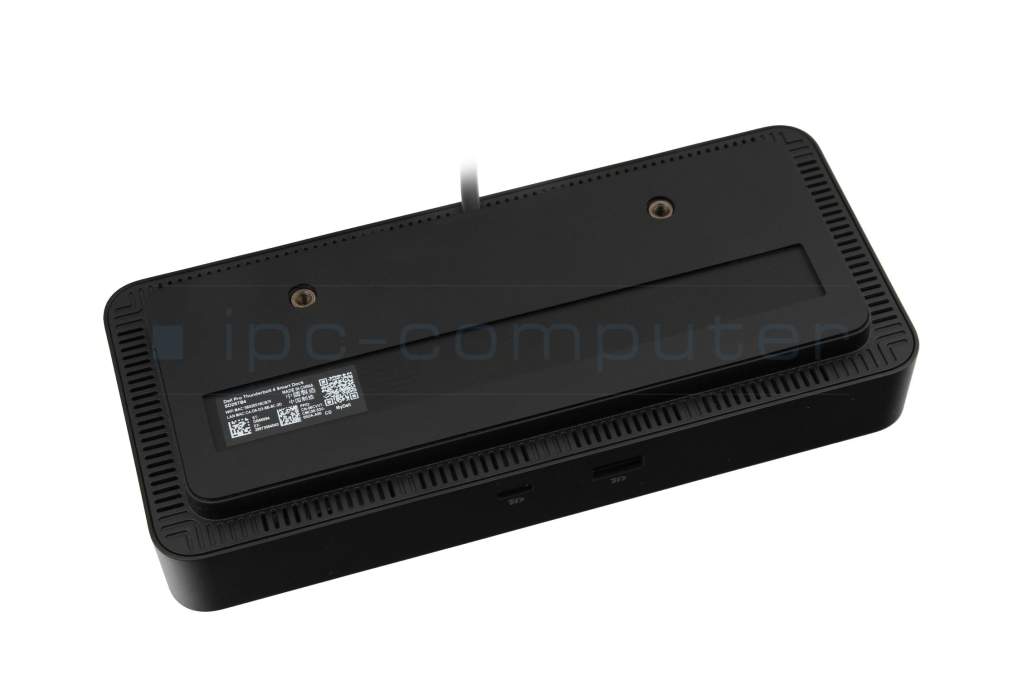

Dell K23A Pro Thunderbolt 4 Smart Dock - SD25TB4 incl. 180W Netzteil
- Manufacturer
- Dell
- Item Number
- K23A
- Primary Partnummer
- SD25TB4
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
The offered manufacturer number is an alternative (substitute) to the spare part number you are looking for.
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- USB-C / USB-A

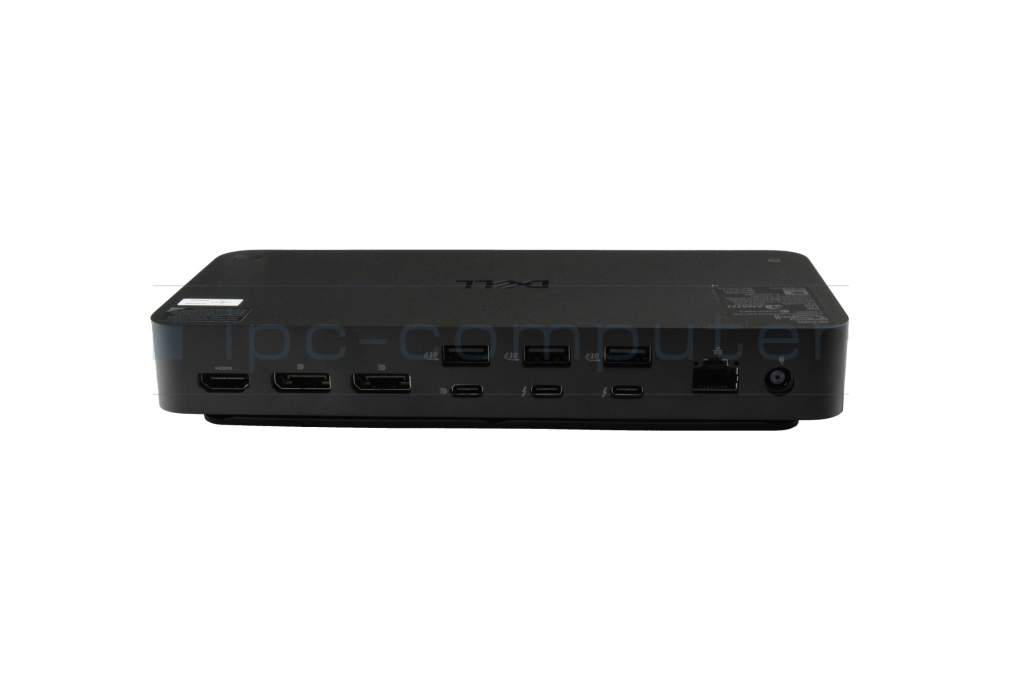

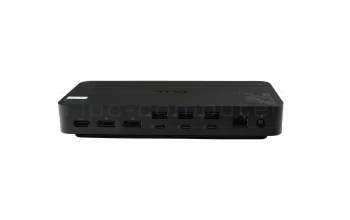

- Connectors
-
1x DC-In (Power supply)
1x Ethernet RJ-45 2.5Gbps
1x HDMI 2.1
1x Kensington-Lock
1x USB-C + Data + PowerDelivery
1x USB-C 3.2 Gen 2 + PowerDelivery + DisplayPort
2x DisplayPort 1.4
2x Thunderbolt 4 - Max. resolution of external monitors
-
1x 8K - 7680x4320 @ 30Hz
1x UHD - 3840x2160 @ 60Hz
2x 4K2K - 4096x2160 @ 60Hz
3x UHD - 3840x2160 @ 60Hz
4x QHD - 2560x1440 @ 60Hz

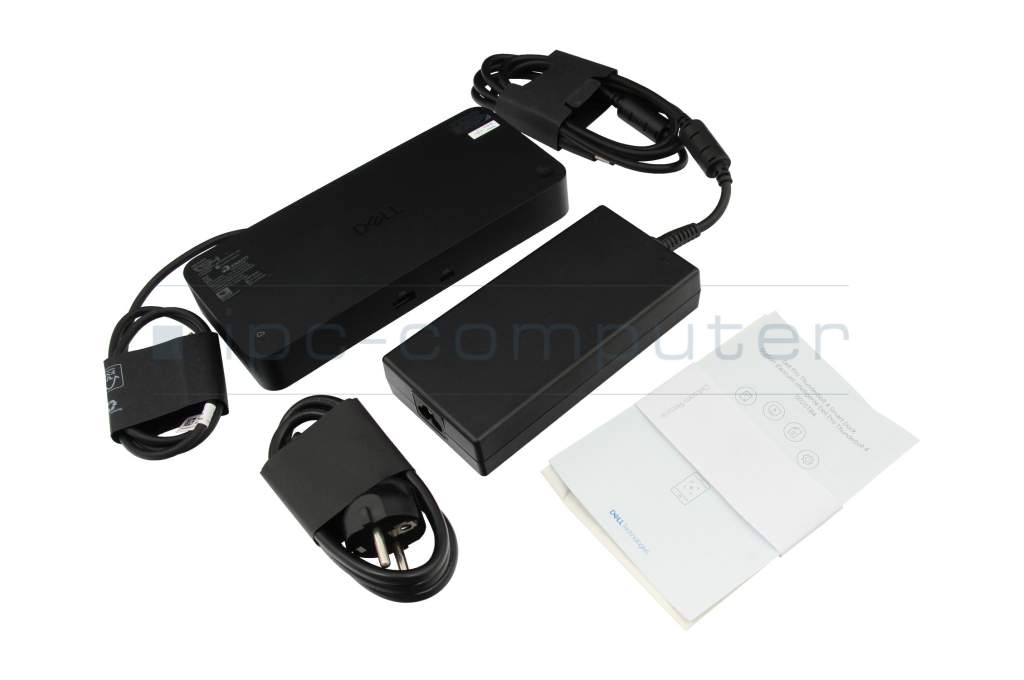

4x WQHD 3440 × 1440 @ 120 Hz - Delivery includes
-
AC-Adapter
Manual
Port Replicator
Power cable
Safety Information

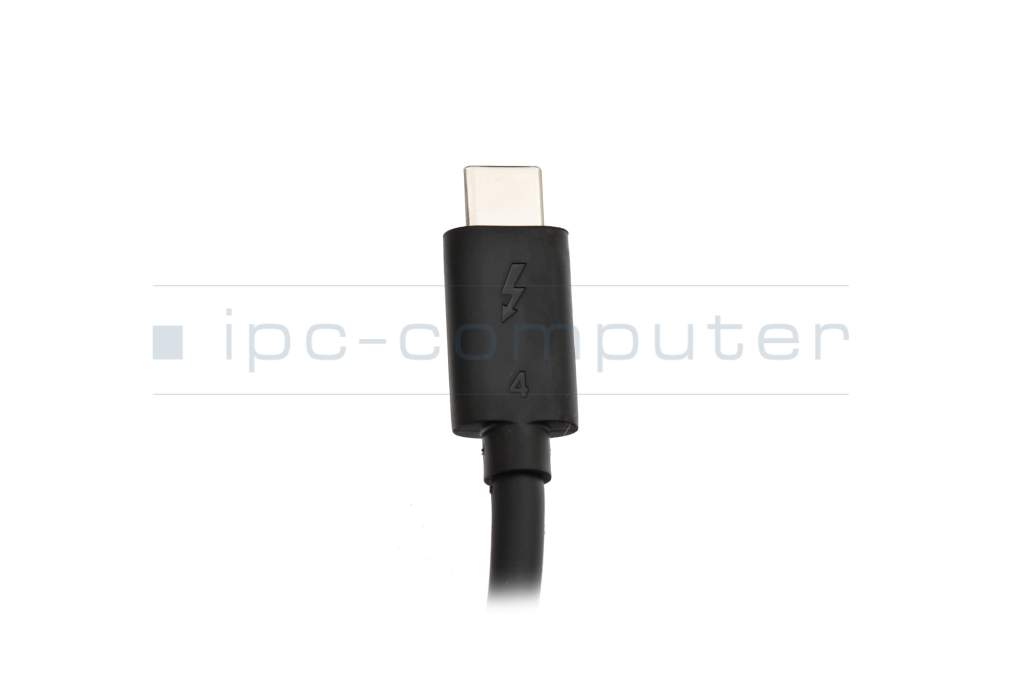

USB-C cabel - Included ac-adaptor
- 180W
- Compatible operating systems
-
ChromeOS
Linux / Ubuntu
Mac OS
Red Hat Enterprise Linux
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 20,5 cm / 9 cm / 3.5 cm
Dell Pro Thunderbolt 4 Smart Dock (SD25TB4, 210-BRFL, 180W) – Technical Specifications
- Type: Thunderbolt 4 docking station
- Compatibility: Dell Latitude, XPS, Precision, and other notebooks with Thunderbolt 4/USB4 port (partially backward compatible with Thunderbolt 3)
- Power supply: 180 W power adapter, up to 130 W power delivery for compatible notebooks
- Maximum number of monitors: Up to 4 external monitors (depending on notebook GPU and operating system support)
- Maximum resolutions:
-
Brief summary/simplification (for details, see manual):
- Without DSC:
- 1 display: Up to 5K@60Hz
- 2 displays: Up to 4K@60Hz per display
- 3 displays: Up to WQHD@60Hz
- 4 displays: Up to QHD@60Hz
- With DSC:
- 1 display: Up to 8K@60Hz
- 2 displays: Up to 6K@60Hz or 5K@120Hz
- 3/4 displays: Up to 4K@60Hz or WQHD@120Hz
- Without DSC:
-
Please note:
Combinations and actual support depend on the device, connection (HDMI, DP, Type-C) and, if applicable, CPU (for DSC).
- Supported technology: Display Stream Compression (DSC), Multi-Stream Transport (MST)
Special features
- Supports Dell ExpressCharge and ExpressCharge Boost (faster charging for supported Dell notebooks)
- Wired network connection via a single cable
- Firmware updates possible via Dell Firmware Update Utility
- Wake-on-LAN, PXE boot, MAC address pass-through (on supported Dell devices)
- 1 × Noble Security Slot / Kensington Slot
Category
- Category
- Dockings
- Usage
- Laptop
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
