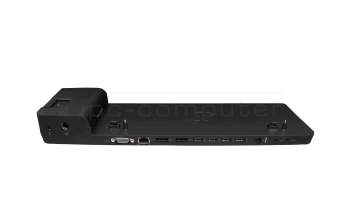

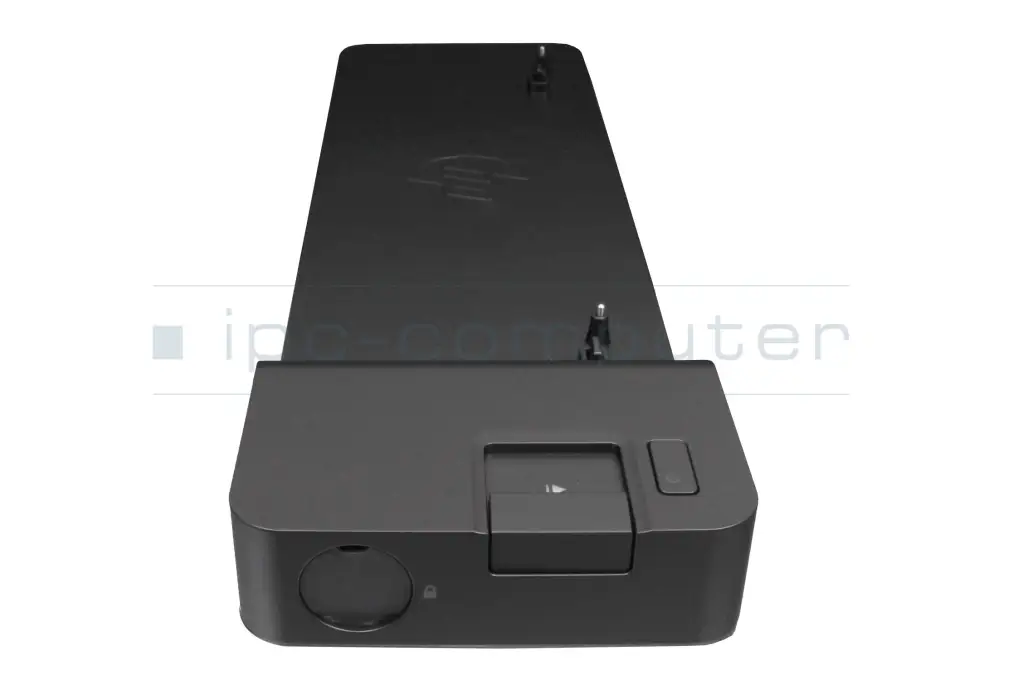

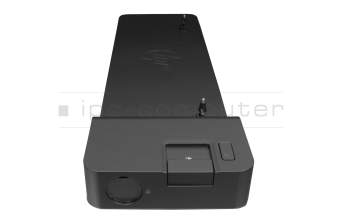

HSTNN-1X10 HP UltraSlim Docking Station

Manufacturer: HP
Item Number: HSTNN-1X10
Primary Partnummer: HSTNN-1X10
Safety information: Sicherheits- & Herstellerkontakt-Informationen

Common data

Condition: New

Technical Data

Connexion to the laptop: Internal docking port

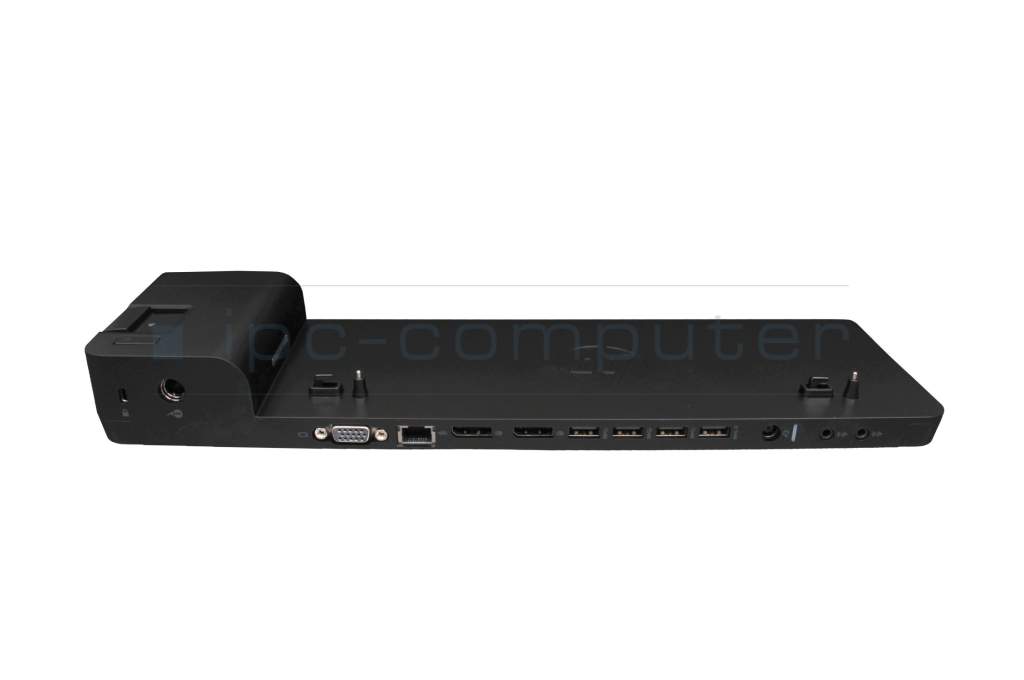

Connectors: 1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x Kensington-Lock
1x VGA
1x headphone (line-out)
1x microphone (line-in)
2x DisplayPort
4x USB-A 3.2 Gen 1
Max. resolution of external monitors: 1x WUXGA - 1920x1200
2x UHD - 3840x2160

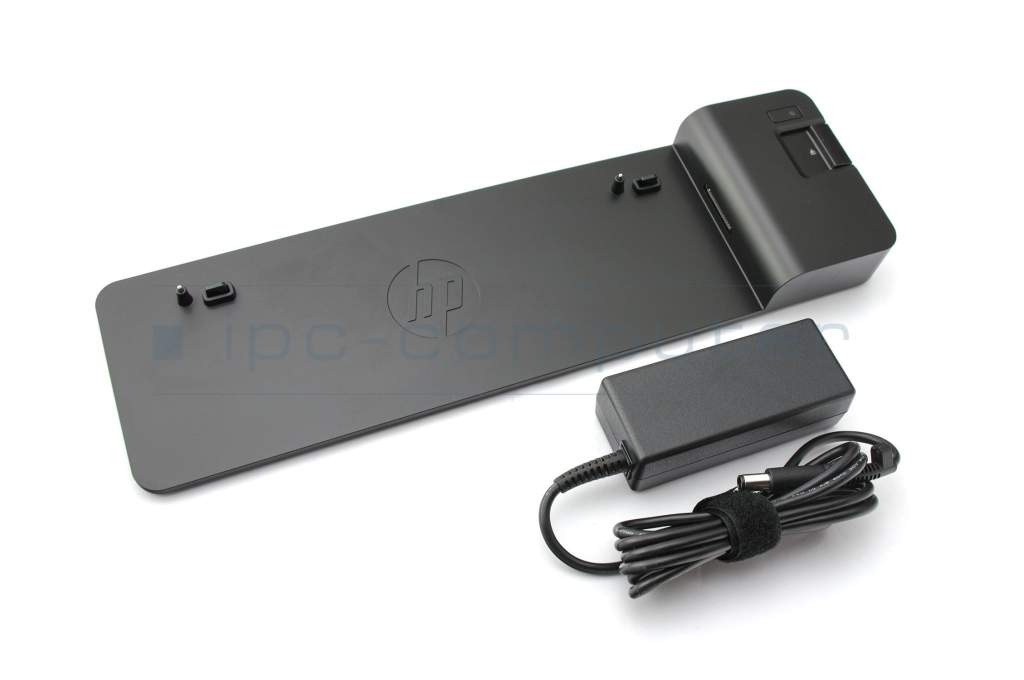

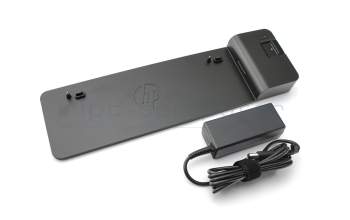

Delivery includes: Docking Station
Manual
Power cable
Included ac-adaptor: 65W
Compatible operating systems: Windows 10 (32bit/64bit)
Windows 7 (32bit/64bit)
Windows 8 (32bit/64bit)
Windows 8.1 (32bit/64bit)
Length / Width / Hight: 36.5 cm / 10.5 cm / 4 cm

Vorteile

Lösen Sie eingeschränkte Anschlussmöglichkeiten schnell und sicher mit dieser Docking Station und verbinden Sie auf einfache Weise eine Maus, Drucker, weitere USB-Geräten. Spiegeln oder Erweitern Sie Ihren Desktop auf mehrere externe Monitore.

Hier finden Sie den vollständigen Bericht über weitere Vorteile.

Hinweis

Vergleichen Sie die Leistung (Watt) Ihres zum Notebook passenden Netzteils mit dem bei dieser Docking Station enthaltenen Netzteil. Für den Betrieb Ihres Notebooks, besonders bei voller Auslastung sollte die Leistung des Docking Station Netzteils gleich oder höher sein wie die des Ihrem Notebook zugehörigen Netzteils.

Learn more about the docking station

Designed exclusively for ultra-slim HP EliteBook notebook PCs (up to G6 generation), the HP UltraSlim Docking Station expands screen, network, and device connectivity so you can be more productive throughout the day - all with a simple one-click, side-loading dock.

Benefit from compatibility with your choice of legacy and future video devices thanks to the two DisplayPort connectors and VGA port. With the Ethernet/LAN connection, you'll be online in no time. Line-in and line-out connections meet all audio requirements. Four USB 3.0 ports provide high-speed connectivity to the USB devices you use most often. USB 3.0 reduces the time required for data transfer (unlike USB 2.0 ) and is backwards compatible with USB 2.0 as well as bidirectional. Headphone and microphone jacks support your multimedia and video conferencing needs.

Suitable for the following series:

HP EliteBook Folio 1020 G1
HP EliteBook Folio 1040 G1, G3
HP EliteBook 1040 G2
HP EliteBook Revolve 810 G1, G2, G3
HP EliteBook 820 G1, G2, G3, G4
HP EliteBook 840 und 850 G1, G2, G3, G4, G5, G6
HP EliteBook 830 G5, G6
HP EliteBook 720, 740, 750 G1, G2
HP EliteBook 725 G3, G4
HP EliteBook 745, 755 G3, G4, G5, G6
HP EliteBook 735 G5, G6
HP ProBook 640, 650 G2, G3, G4, G5
HP ProBook 645 G2, G3, G4, G5
HP ProBook 655 G2, G3
HP EliteBook Folio 9480m, 9470m
HP ZBook 14u G4, G5, G6
HP ZBook 15u G3, G4, G5, G6
