Lenovo 40BF0100GE ThinkPad USB4 Dock 5000 incl. 100W Netzteil
plus shipping charges
- Standardlieferung 15. June - 16. June
- Expresslieferung 15. June
- bei Bestellung innerhalb 20 hrs 23 min
Substitute part numbers:
00XL064, 5A11R70778, 5C11R89276, ADL10SCC3A, LDC-U4, SA11R70776, SC11R89276
- Manufacturer
- Lenovo
- Item Number
- 40BF0100GE
- Sub-Partnumbers
- 00XL064, 5A11R70778, 5C11R89276, ADL10SCC3A, LDC-U4, SA11R70776, SC11R89276
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- USB-C 4
- Connectors
-
1x DC-In (Power supply)
1x DisplayPort 1.4
1x Ethernet (RJ-45)
1x HDMI 2.1
2x DisplayPort 1.4
2x Kensington-Lock
2x USB-C 3.2 Gen 2
4x USB-A 3.2 Gen 2 - Max. resolution of external monitors
-
1x 8K - 7680x4320 @ 60Hz
2x 4K - 3840x2160 @ 144Hz - Delivery includes
-
AC-Adapter
Installation manual
Manual
Port Replicator
Power cable - Included ac-adaptor
- 100W
- Compatible operating systems
-
Mac OS
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 21.8 cm / 8 cm / 3.1 cm
ThinkPad USB4 Dock 5000
The Lenovo ThinkPad USB4 Dock 5000 is the innovative evolution of the proven Universal USB-C Dock. Equipped with the latest USB4 technology, it offers ultra-fast data transfer at up to 40 Gbit/s, which significantly increases your productivity.
Advantages
Fast data transfer: 40 Gbit/s bandwidth
High-resolution displays: Support for one 8K display at 60 Hz or two 4K monitors at 144 Hz
Individual charging options: 100 W power supply for 65 W charging current (135 W power supply for up to 100 W charging power)
Versatile compatibility: operating systems such as Windows 11, macOS Sonoma, macOS Sequoia
Technical specifications
Dimensions (L x W x H): 218 mm x 145 mm x 31.5 mm
Weight: 470 g
Packaging dimensions (L x D x H): 240 mm x 145 mm x 77 mm
Packaging weight: 1035 g
Main switch: Yes
Driver required: Yes
Connectors: Yes

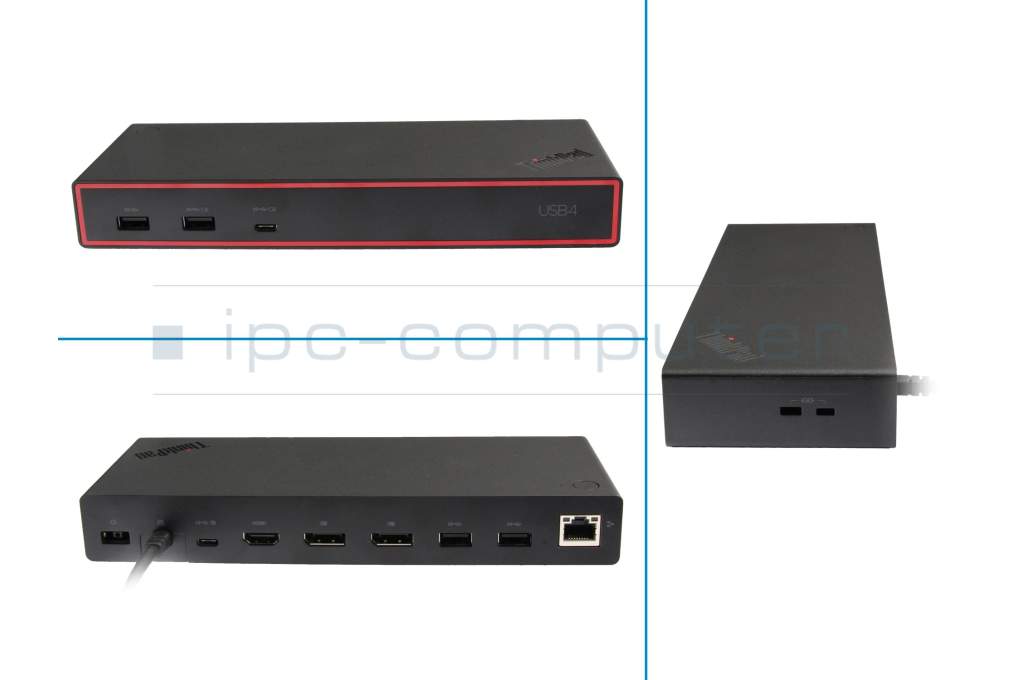

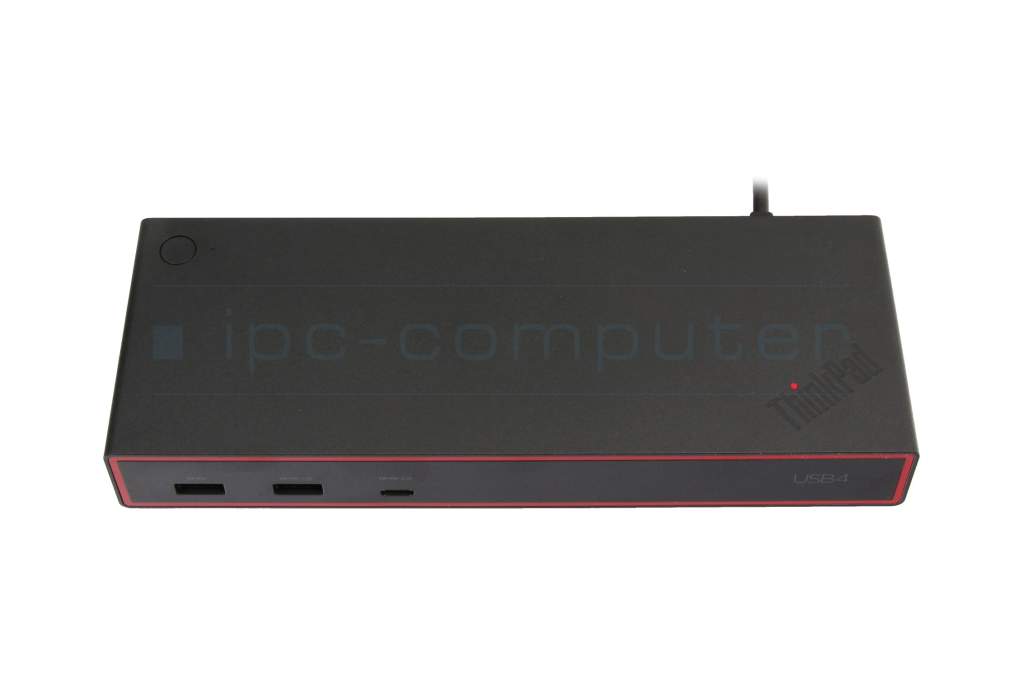

Front: 2 x USB-A 3.2 Gen 2 1 x USB-C 3.2 Gen 2
Rear: 2 x USB-A 3.2 Gen 2, 1 x USB-C 3.2 Gen 2, 1 x Ethernet (RJ-45), 1x HDMI 2.1, 2 x DisplayPort 1.4, 1 x DC-In (power connection)
Right side: Kensington lock
Power supply unit
Input power: 100 W
Output power: 65 W (maximum)
Power delivery: Yes (up to 100 W)
Charge port: DC-IN
Maximum resolution: 4 monitors with 3840 x 2160 at 60 Hz, max. 4 external monitors

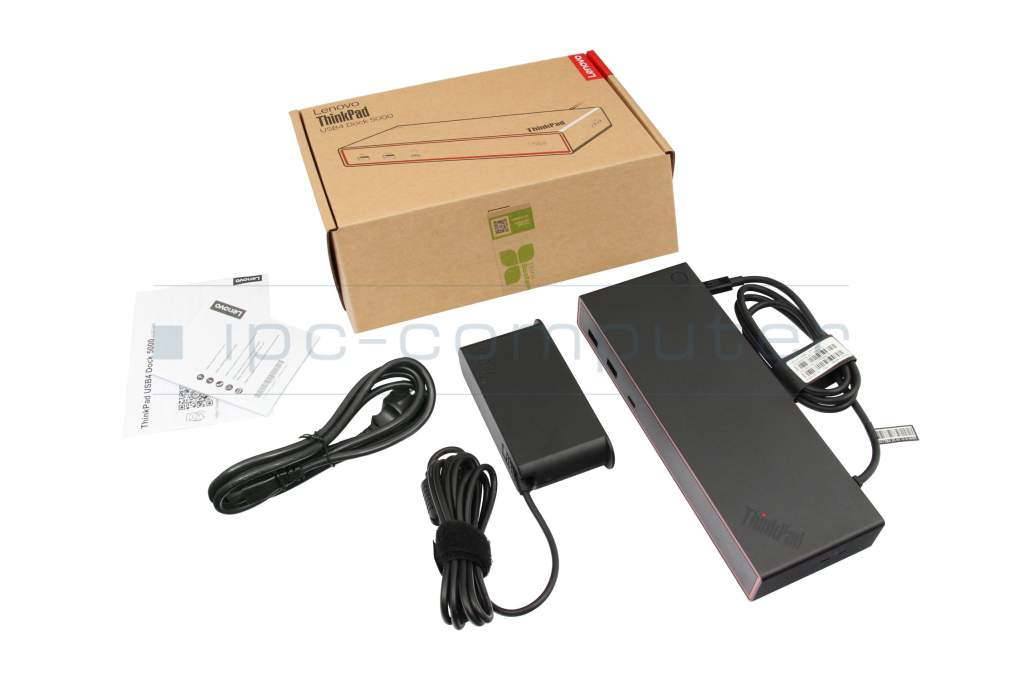

Scope of delivery

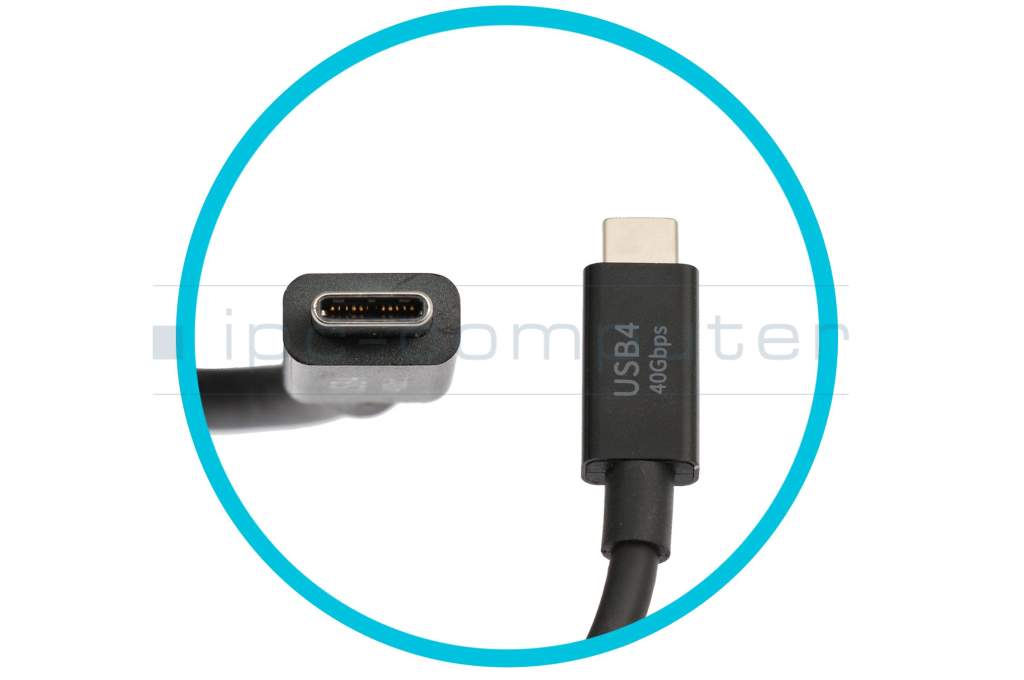

1 x ThinkPad USB4 Smart Dock with integrated USB4 cable (1 m)
1 x 100 W power supply
1 x power cable
1 x setup/installation guide
1 x warranty documents
Compatible operating systems
Windows 11
macOS Sonoma
macOS Sequoia
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N 40BF0100GE
- Lenovo ThinkPad T14 Gen 6 (21QC) , Lenovo ThinkPad X13 Gen 6 (21RM) , Lenovo ThinkPad T16 Gen 4 (21QN) , Lenovo ThinkPad L13 Gen 6 (21RB) , Lenovo ThinkPad X13 G3 (21BN/21BQ) , Lenovo ThinkBook 13x IAP G2 (21AT) , Lenovo ThinkBook 14 G4+ IAP (21CX) , Lenovo ThinkPad L15 Gen 4 (21H3/21H4) , Lenovo IdeaPad Pro 5-14APH8 (83AM) , Lenovo Yoga 7 16IML9 Gen 9 (83DL)
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
