Lenovo SA11R70776 ThinkPad USB4 Dock 5000 incl. 100W Netzteil

184^00€

incl. Tax (19%)
plus shipping charges

6 pieces in stock.

Standardlieferung 15. June - 16. June
Expresslieferung 15. June
bei Bestellung innerhalb 19 hrs 10 min

Manufacturer: Lenovo
Item Number: SA11R70776
Primary Partnummer: 5A11R70778
Safety information: Sicherheits- & Herstellerkontakt-Informationen

The offered manufacturer number is an alternative (substitute) to the spare part number you are looking for.

Common data

Condition: New

Technical Data

Connexion to the laptop: USB-C 4
Connectors: 1x DC-In (Power supply)
1x DisplayPort 1.4
1x Ethernet (RJ-45)
1x HDMI 2.1
2x DisplayPort 1.4
2x Kensington-Lock
2x USB-C 3.2 Gen 2
4x USB-A 3.2 Gen 2
Max. resolution of external monitors: 1x 8K - 7680x4320 @ 60Hz
2x 4K - 3840x2160 @ 144Hz
Delivery includes: AC-Adapter
Installation manual
Manual
Port Replicator
Power cable
Included ac-adaptor: 100W
Compatible operating systems: Mac OS
Windows 10 (32bit/64bit)
Windows 11
Length / Width / Hight: 21.8 cm / 8 cm / 3.1 cm

ThinkPad USB4 Dock 5000

The Lenovo ThinkPad USB4 Dock 5000 is the innovative evolution of the proven Universal USB-C Dock. Equipped with the latest USB4 technology, it offers ultra-fast data transfer at up to 40 Gbit/s, which significantly increases your productivity.

Advantages

Fast data transfer: 40 Gbit/s bandwidth
High-resolution displays: Support for one 8K display at 60 Hz or two 4K monitors at 144 Hz
Individual charging options: 100 W power supply for 65 W charging current (135 W power supply for up to 100 W charging power)
Versatile compatibility: operating systems such as Windows 11, macOS Sonoma, macOS Sequoia

Technical specifications

Dimensions (L x W x H): 218 mm x 145 mm x 31.5 mm
Weight: 470 g
Packaging dimensions (L x D x H): 240 mm x 145 mm x 77 mm
Packaging weight: 1035 g
Main switch: Yes
Driver required: Yes

Connectors: Yes

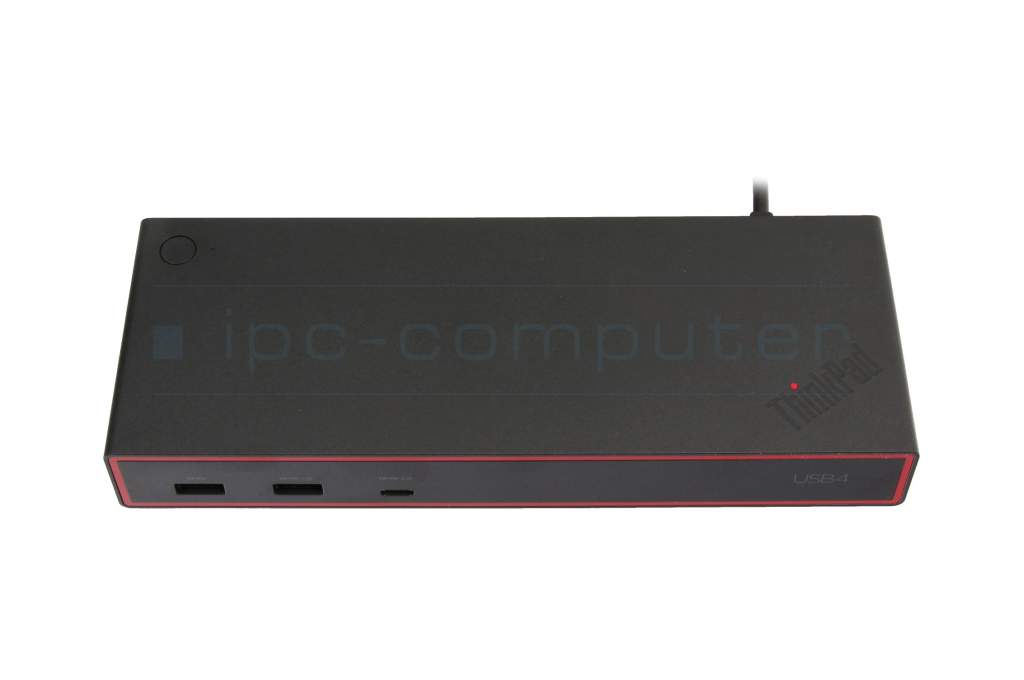

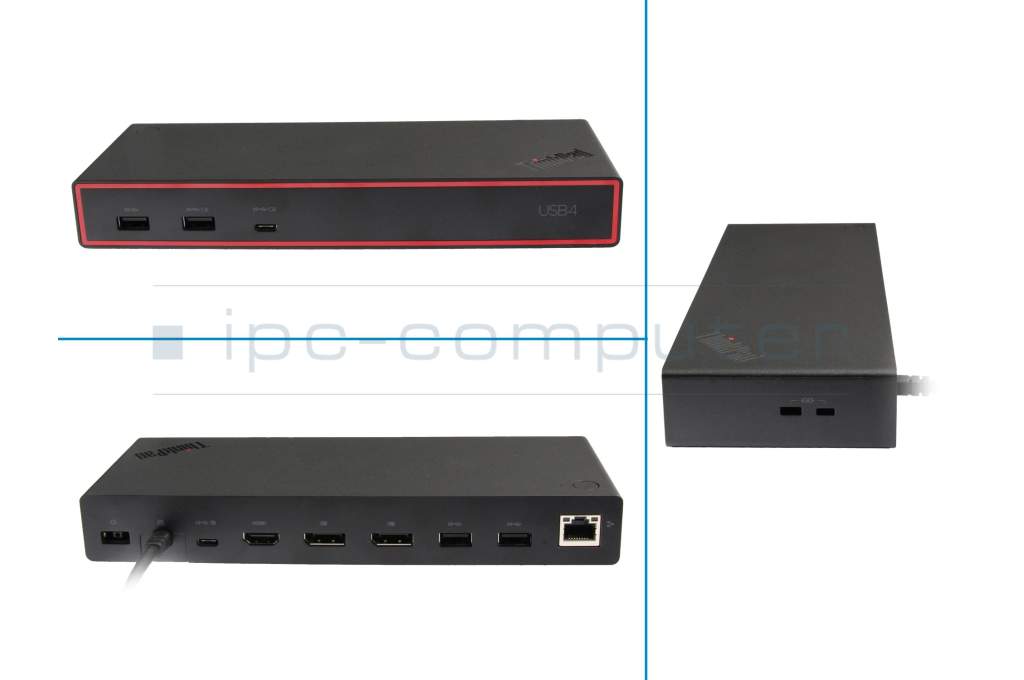

Front: 2 x USB-A 3.2 Gen 2 1 x USB-C 3.2 Gen 2
Rear: 2 x USB-A 3.2 Gen 2, 1 x USB-C 3.2 Gen 2, 1 x Ethernet (RJ-45), 1x HDMI 2.1, 2 x DisplayPort 1.4, 1 x DC-In (power connection)
Right side: Kensington lock

Power supply unit

Input power: 100 W
Output power: 65 W (maximum)
Power delivery: Yes (up to 100 W)
Charge port: DC-IN
Maximum resolution: 4 monitors with 3840 x 2160 at 60 Hz, max. 4 external monitors

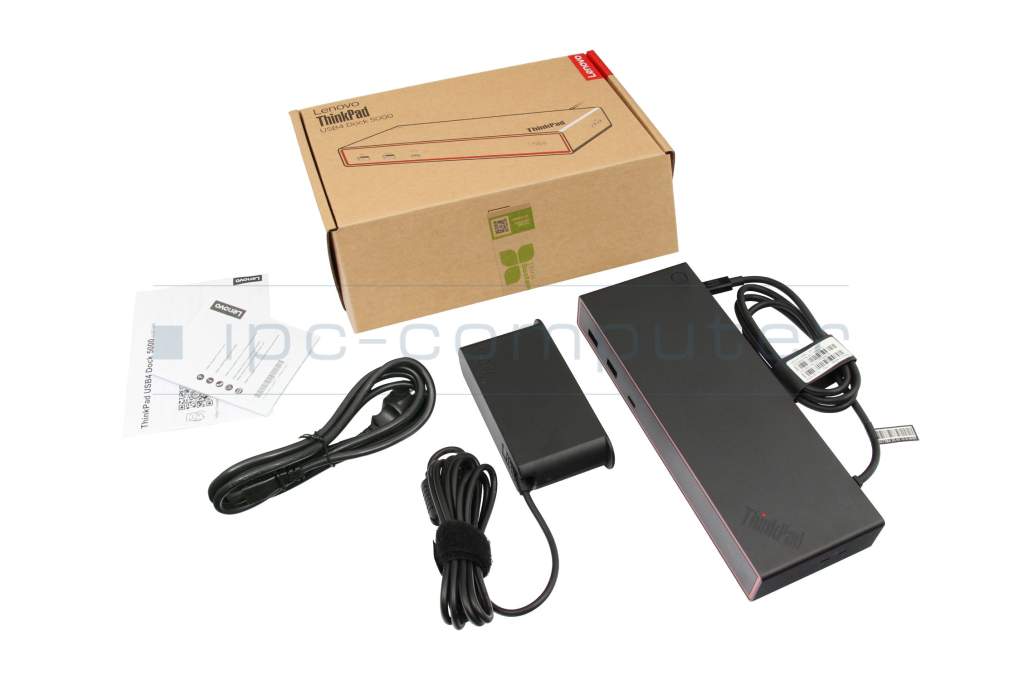

Scope of delivery

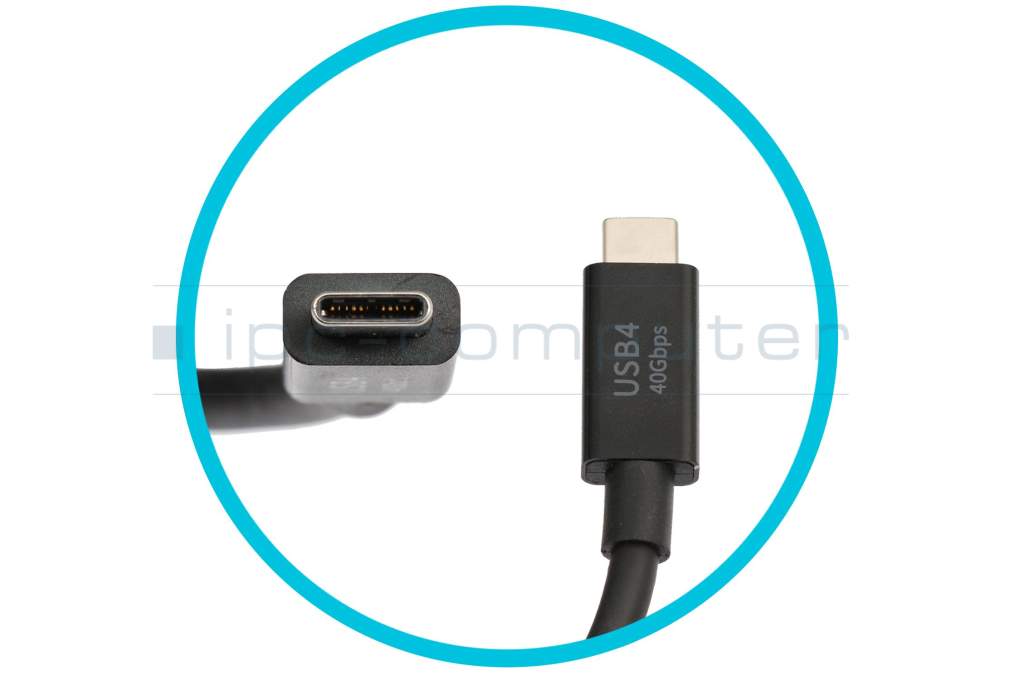

1 x ThinkPad USB4 Smart Dock with integrated USB4 cable (1 m)
1 x 100 W power supply
1 x power cable
1 x setup/installation guide
1 x warranty documents

Compatible operating systems

Windows 11
macOS Sonoma
macOS Sequoia
