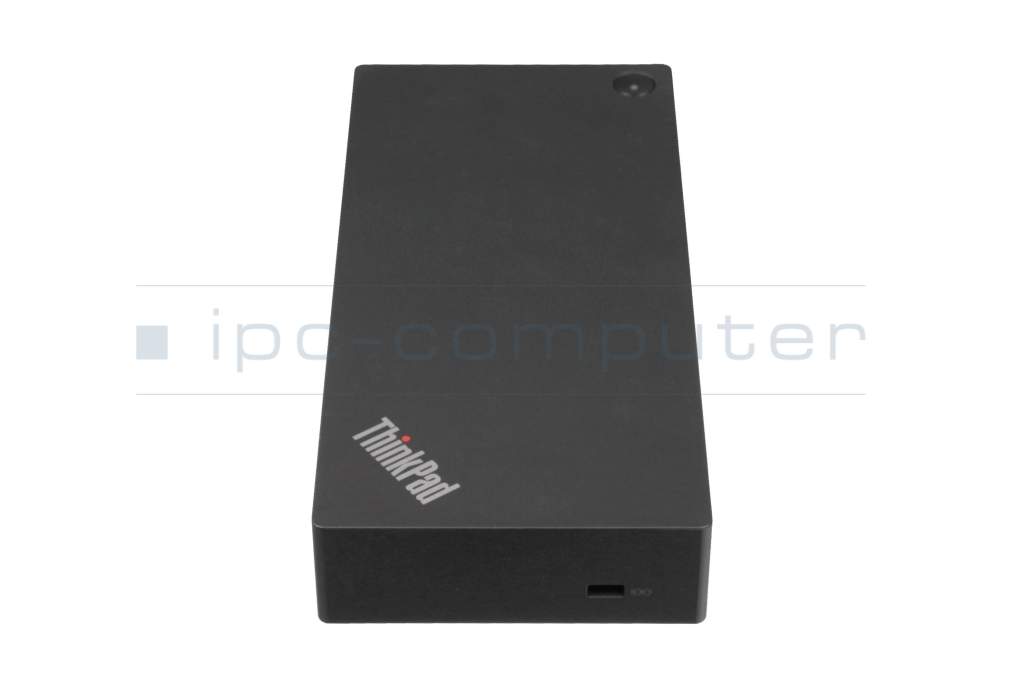

Lenovo 40AS0090EU ThinkPad Gen 2 Port Replicator incl. 90W Netzteil
Substitute part numbers:
5D21J12380, SD20S97543
According to the manufacturer, a firmware update may be necessary if compatibility issues arise. Lenovo USB-C and Thunderbolt docking stations work with laptops whose Type-C port supports the industry-standard USB-C Alt Mode or the Thunderbolt protocols. For HP models with a USB 3.1 Type-C™ Gen 1 Sleep and Charge port, it is not possible to charge the laptop via this port.
40AY0090EU Lenovo ThinkPad Universal USB-C Dock incl. 90W ac-adapter
plus shipping charges
Product Info
- Manufacturer
- Lenovo
- Item Number
- 40AS0090EU
- Sub-Partnumbers
- 5D21J12380, SD20S97543
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- USB-C 3

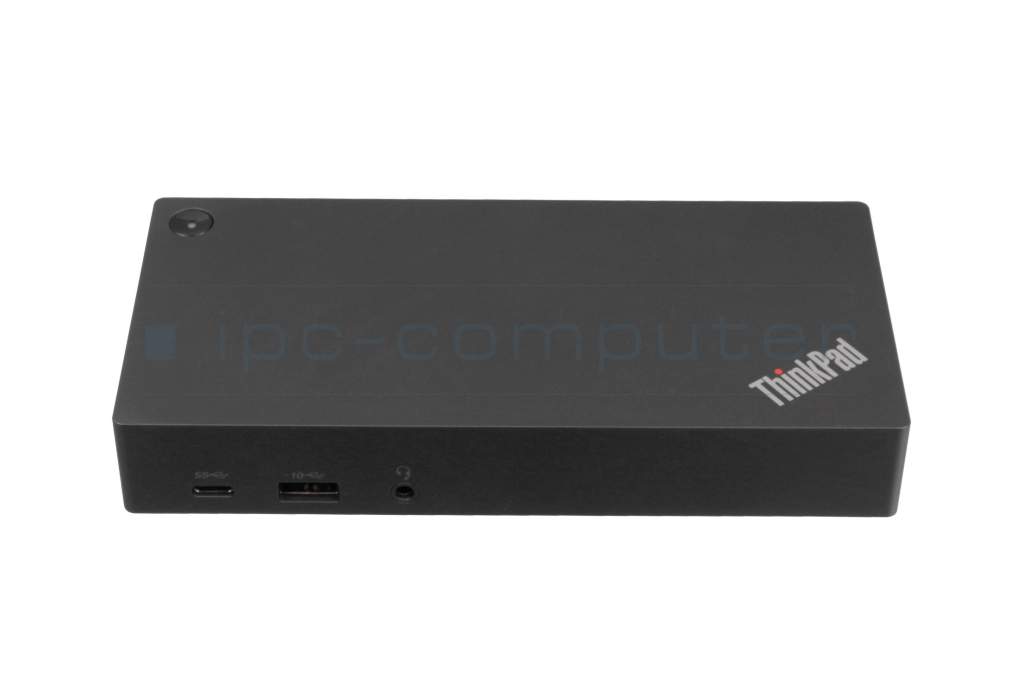

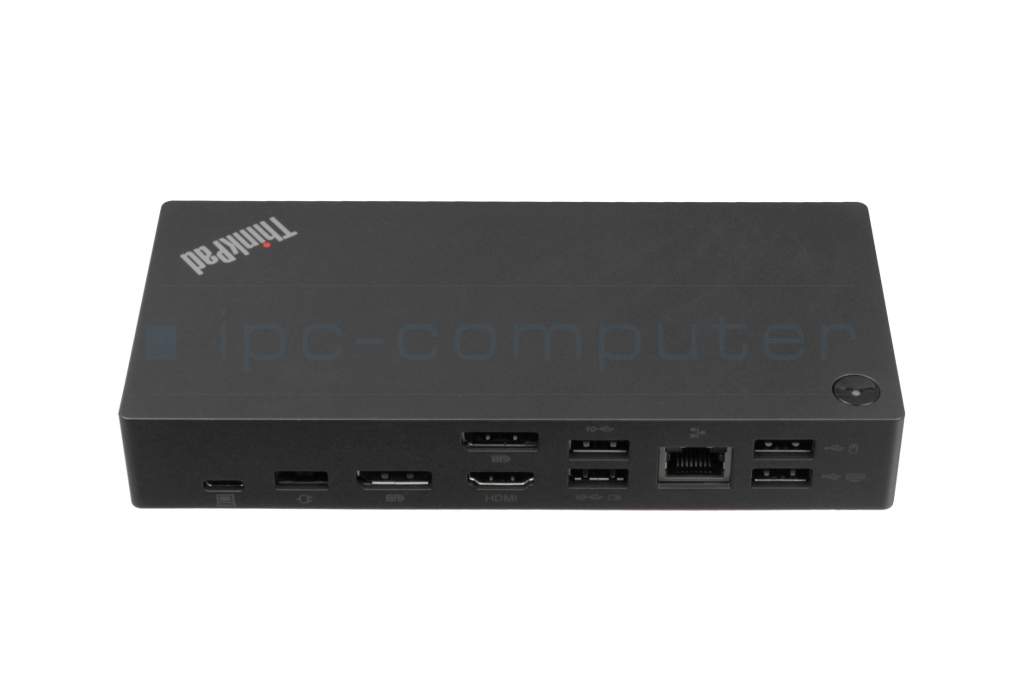

- Connectors
-
1x Audio-Combo
1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x HDMI 2.0
1x Kensington-Lock
1x USB-C 3.2 Gen 1
1x USB-C 3.2 Gen 2
2x DisplayPort 1.4
2x USB-A 2.0
3x USB-A 3.2 Gen 1 - Max. resolution of external monitors
-
1x UHD - 3840x2160
2x UHD - 3840x2160

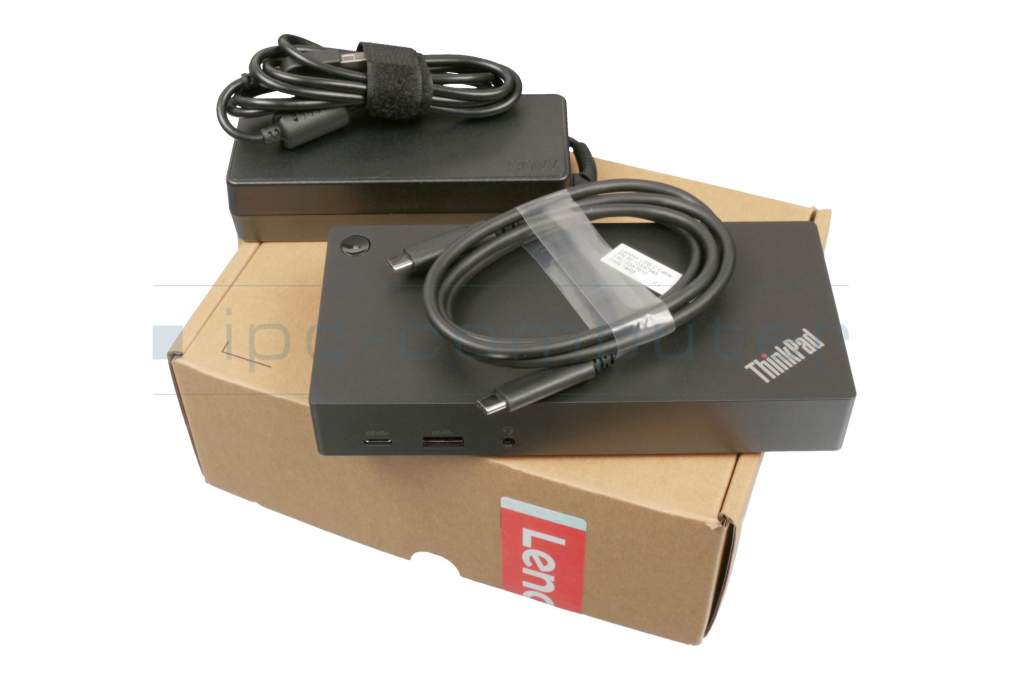

3x FHD - 1920x1080 - Delivery includes
-
Installation manual
Port Replicator
Power cable

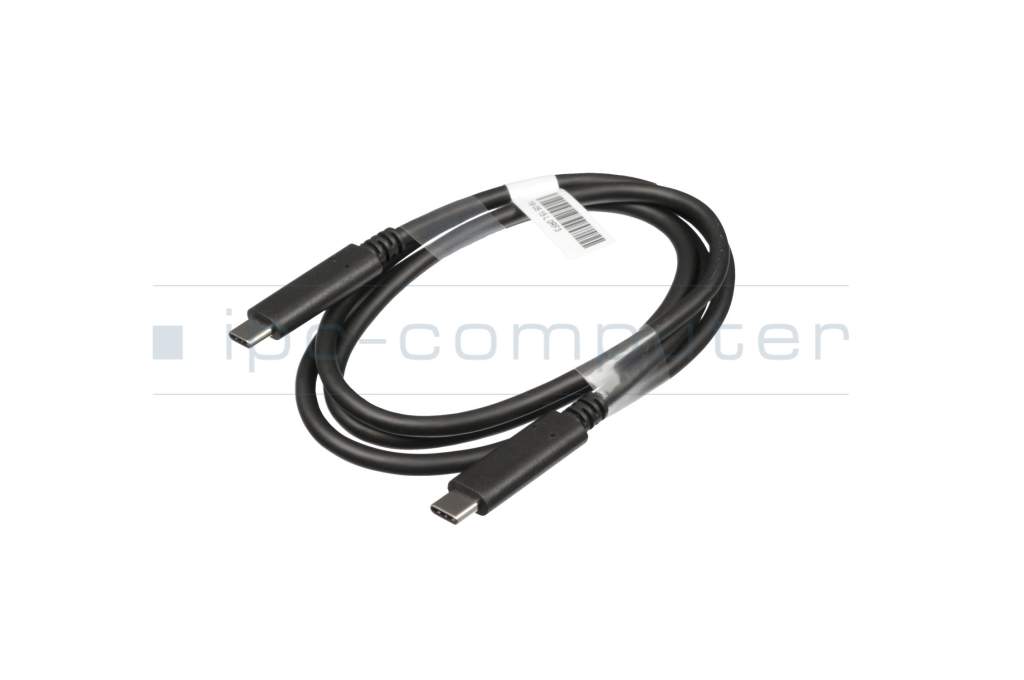

USB-C cabel - Included ac-adaptor

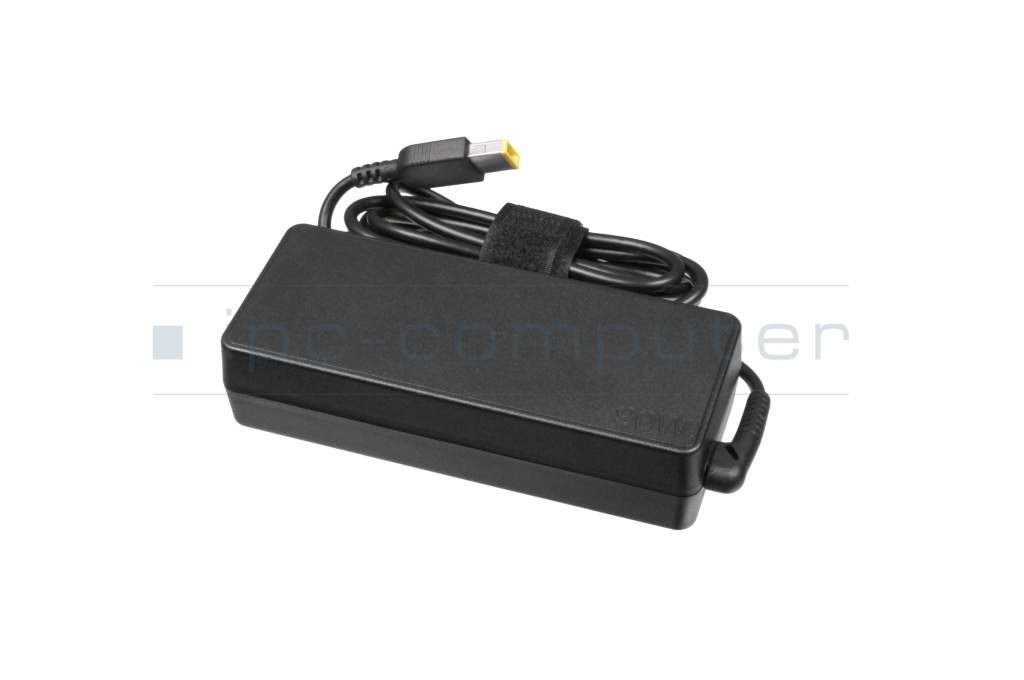

- 90W
- Compatible operating systems
-
Windows 10 (32bit/64bit)
Windows 11
Windows 7 (32bit/64bit)
Windows 8 (32bit/64bit)
Windows 8.1 (32bit/64bit) - Length / Width / Hight
- 17 cm / 8 cm / 3 cm
Vorteile
Lösen Sie eingeschränkte Anschlussmöglichkeiten schnell und sicher mit diesem Port Replikator und verbinden Sie auf einfache Weise eine Maus, Drucker, weitere USB-Geräten. Spiegeln oder Erweitern Sie Ihren Desktop auf mehrere externe Monitore. Hier finden Sie den vollständigen Bericht über weitere Vorteile.Mit einem USB-C-Anschluss benötigen Sie nicht nur kein zusätzliches Netzteil zum Betrieb des Notebooks, Sie können mit dem vorhandenen Port Replikator sogar Ihren Akku aufladen. Beachten Sie aber, dass über den USB-C Anschluss maximal eine Leistungsaufnahme von 100 Watt möglich ist. Sollte Ihr Notebook eine höhere Leistungsaufnahme haben, benötigen Sie weiterhin das Netzteil des Notebooks für den Betrieb.
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N 40AS0090EU
- Lenovo Yoga 900-13ISK2 (80UE) , Lenovo IdeaPad Miix 720-12IKB (80VV) , Lenovo ThinkPad A475 (20KL/20KM) , Lenovo ThinkPad T580 (20L9/20LA) , Lenovo IdeaCentre AIO 3-24ALC6 (F0G1) , Lenovo IdeaCentre AIO 5-27IOB6 (F0G4) , Lenovo ThinkBook 14p G2 ACH (20YN) , Lenovo IdeaPad 5 Pro 16IAH7 (82SK) , Lenovo IdeaPad Gaming 3 16IAH7 (82SA) , Lenovo IdeaPad 5 15IAL7 (82SF)
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
