Dell 02D5CF TB Dock WD22TB4 incl. 180W Netzteil Modular

346^00€

incl. Tax (19%)
plus shipping charges

5 pieces in stock.

Standardlieferung 13. August - 17. August
Expresslieferung 12. August
bei Bestellung innerhalb 12 hrs 03 min

PRIPC2 IPC-Computer TB4 Quad-Display Docking Station incl. 160W ac-adapter

In stock

169^00€

incl. Tax (19%)
plus shipping charges

Product Info

Manufacturer: Dell
Item Number: 02D5CF
Primary Partnummer: 02D5CF
Safety information: Sicherheits- & Herstellerkontakt-Informationen

Common data

Condition: New

Technical Data

Connexion to the laptop: Thunderbolt 4
Connectors: 1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x HDMI
1x Noble Wedge Slot
1x USB-C 3.2 Gen 2 DisplayPort
2x DisplayPort 2.1
2x Thunderbolt 4
3x USB-A 3.2 Gen 1
Max. resolution of external monitors: 1x QHD - 3840x4320 @ 60Hz
2x QHD - 3840x2160 @ 60Hz
3x QHD - 3440x2160 @ 60Hz
4x QHD - 3440x1440 @ 3x60Hz + 1x30Hz

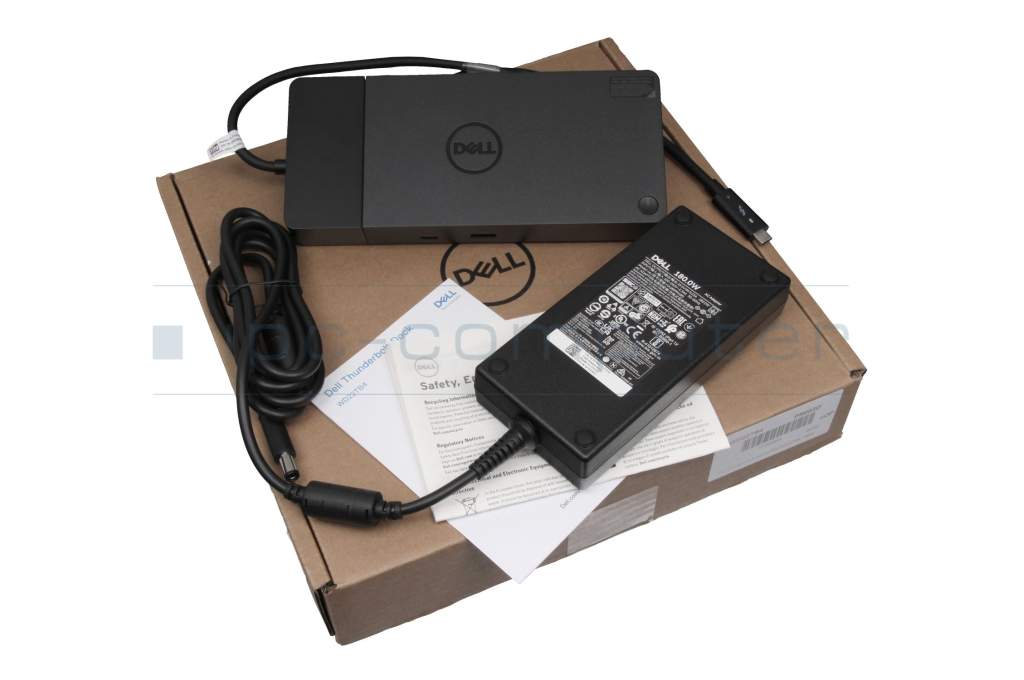

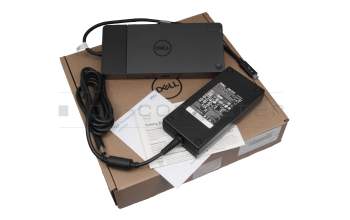

Delivery includes: AC-Adapter
Port Replicator
Power cable
Safety Information
Included ac-adaptor: 180W
Compatible operating systems: Linux / Ubuntu
Windows 10 (32bit/64bit)
Windows 11
Length / Width / Hight: 20.5 cm / 9 cm / 2.9 cm

Vorteile

Lösen Sie eingeschränkte Anschlussmöglichkeiten schnell und sicher mit diesem Port Replikator und verbinden Sie auf einfache Weise eine Maus, Drucker, weitere USB-Geräten. Spiegeln oder Erweitern Sie Ihren Desktop auf mehrere externe Monitore. Hier finden Sie den vollständigen Bericht über weitere Vorteile.

Dell's flagship dock is the WD22TB4, a Thunderbolt 4 dock with exceptional modularity.

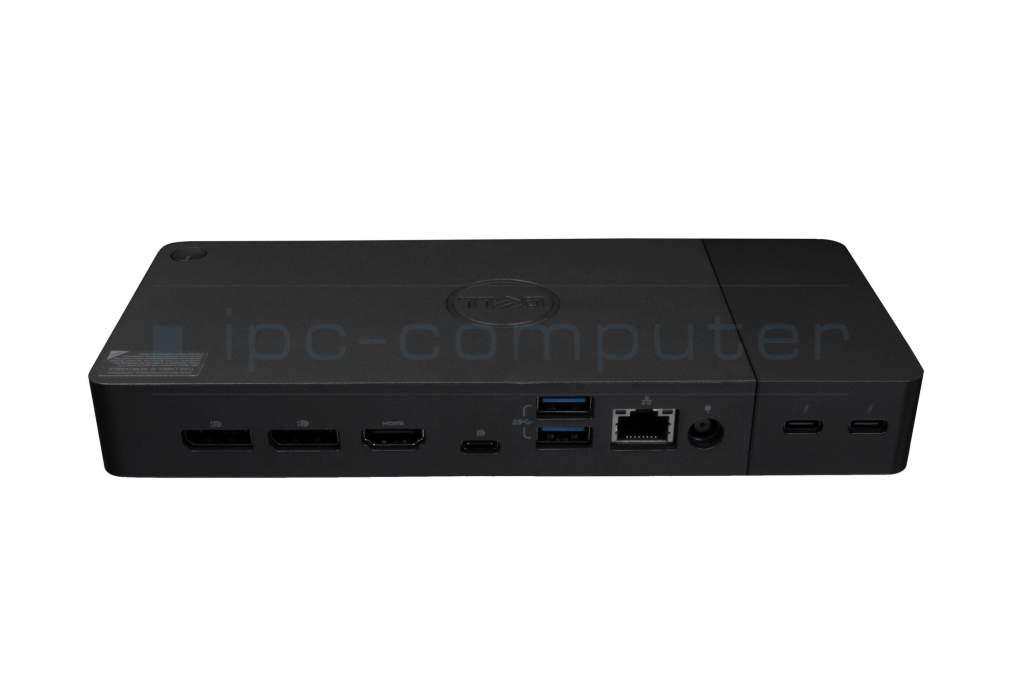

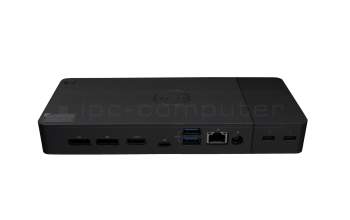

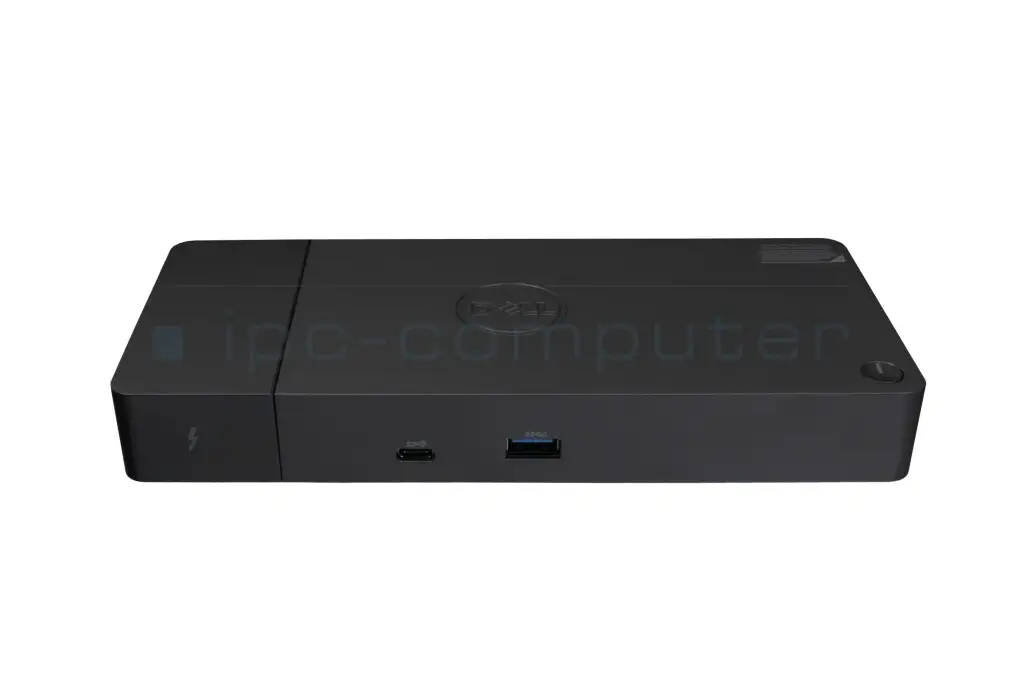

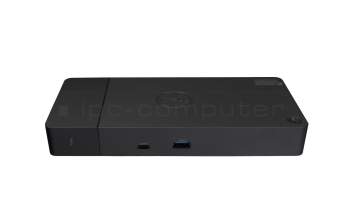

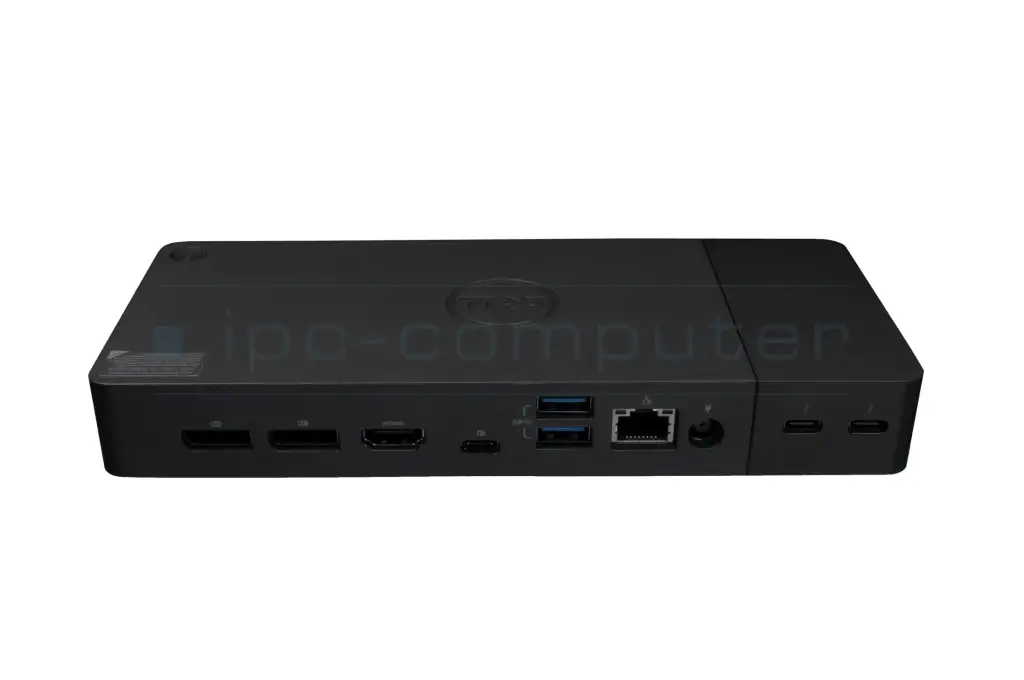

The front of the dock features a single USB-C 3.2 Gen 2 port and a USB-A 3.2 Gen 1 port with PowerShare (always on). On the back of the device are two DisplayPort 1.4 ports, one HDMI 2.0 port, another USB-C 3.2 Gen 2 port (with DisplayPort support), two additional USB-A 3.2 Gen 1 ports with PowerShare, a Gigabit Ethernet port, and the DC input. The dock supports a charging power of up to 130 watts and can be connected simultaneously to up to three 4K 60 Hz displays plus a single 4K 30 Hz monitor. At one end is a removable module that includes two Thunderbolt 4 ports. This can be swapped out for a module with one or two USB-C cables. The Dell Port Replicator WD22TB4 offers a particularly convenient feature for Dell laptop users: the power button. With this feature, users can turn their laptop on and off directly via the port replicator’s power button without having to press the power button on the laptop itself. This feature, available exclusively for Dell laptops, significantly enhances usability and efficiency.

Note on the USB-C port:

Charging capacity with a 180-watt power adapter is 130 watts for Dell systems and 90 watts for systems from other manufacturers.

On non-Thunderbolt systems, the dock’s Thunderbolt ports function as USB Type-C ports.

Important information:
To ensure this dock is recognized by your system, update all your drivers.

Link to User Manual and Information for WD22TB4

Link to User Manual in PDF (English) regarding possible connections with your displays and their screen resolutions
