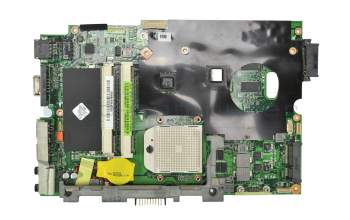

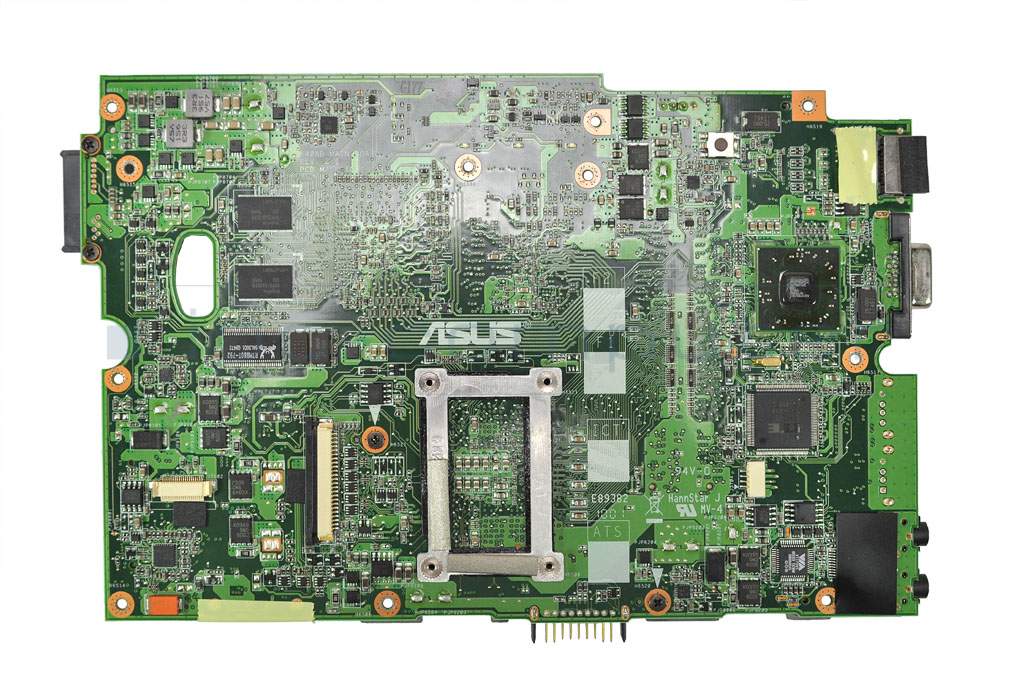

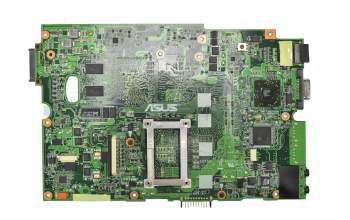

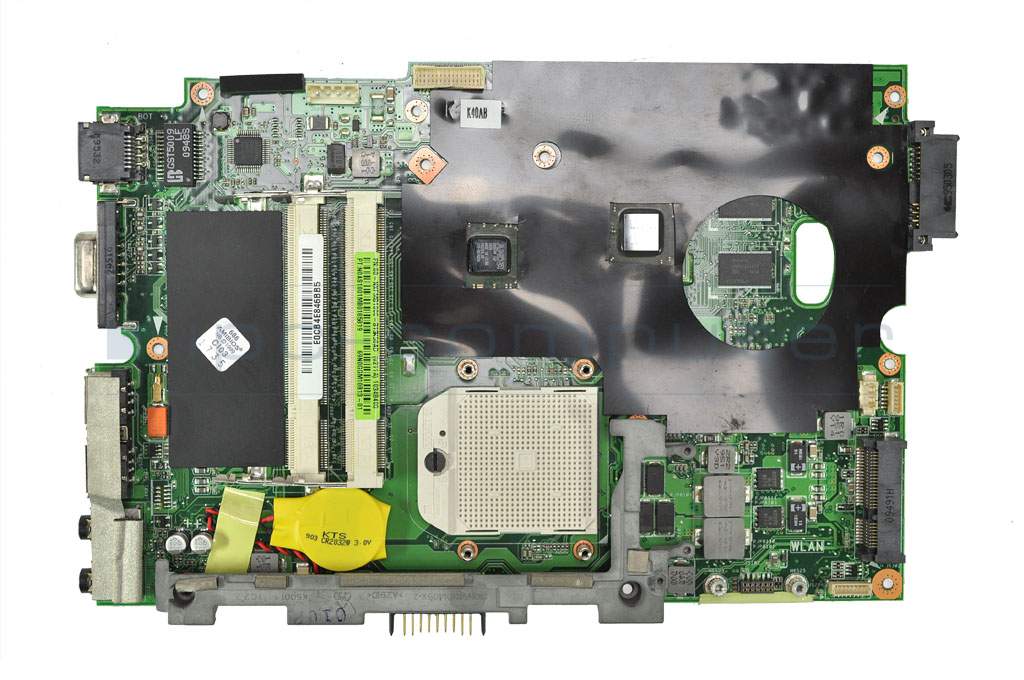

RMK50A Mainboard / motherboard

RMK50A Mainboard / motherboard RMK50A Mainboard / motherboard RMK50A Mainboard / motherboard
RMK50A Mainboard / motherboard
RMK50A Mainboard / motherboard
RMK50A Mainboard / motherboard
EOL
Out of stockThis article is EOL (End of Life) and not longer available.What does EOL mean?
Unfortunately there are no alternative products.

Replaces the following part numbers 90R-NXFMB1000Y, 60-NXFMB1000, NXFMB1000-B13K50AD, 69N0GGM10B13-01

Product note

This product is EOL (End of Life)

Manufacturer
Asus
Item Number
RMK50A
Safety information
Sicherheits- & Herstellerkontakt-Informationen
Partnumber: RMK50A

Please compare the design and connections of this mainboard.

Socket:
Socket S1

Chipset:
AMD RX781

Integrated graphics units:
 ATIMobility™ Radeon® HD 4570, 512MB VRAM

Memory:
2x SODIMM socket - DDR2 800 MHz

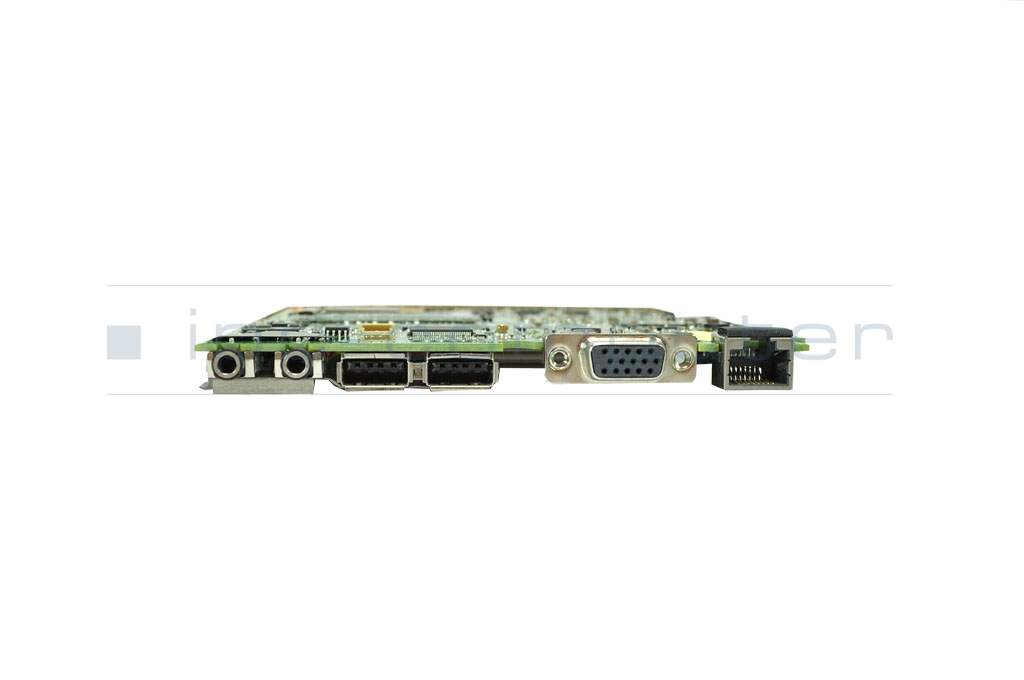

Connectors:
1x RJ45 LAN
1x VGA
2x USB 2.0
1x 3.5mm Audio-In (headphone output)
1x 3.5mm Audio-Out (microphone input)

HDD connector:
Serial ATA

Condition: New

You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.

How to identify my notebook model?
