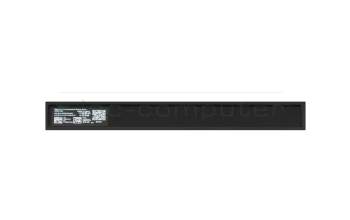

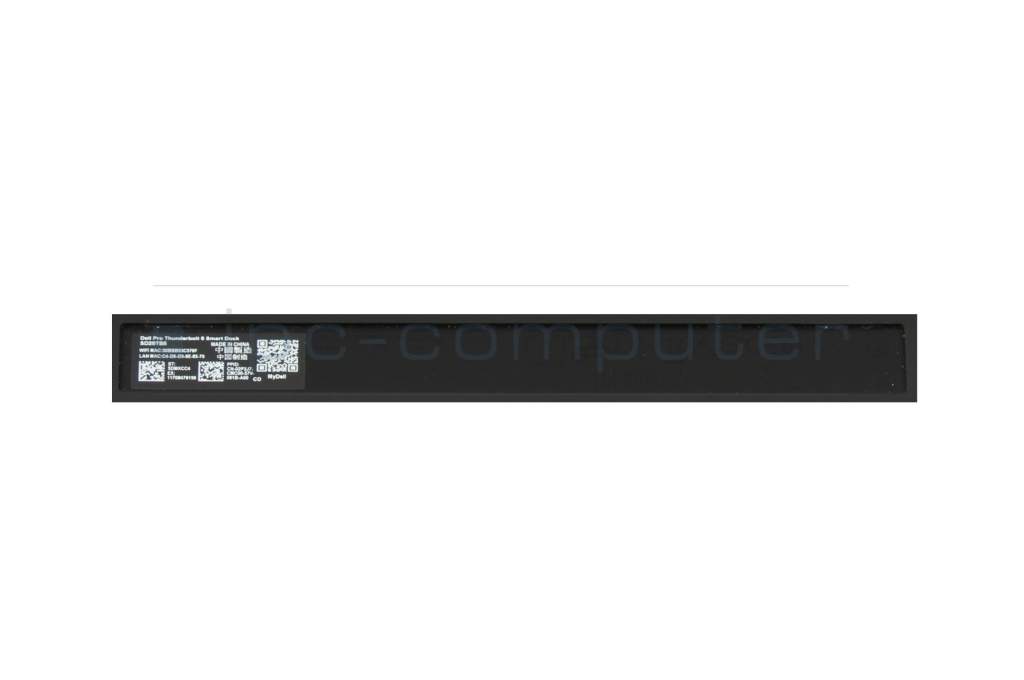

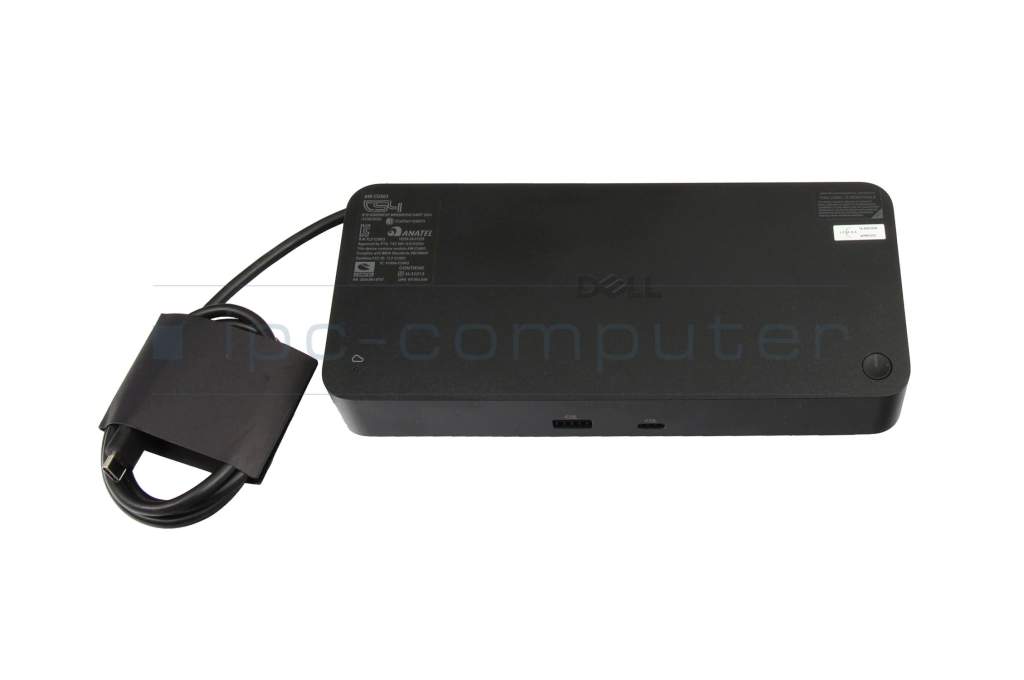

Dell SD25TB5_300W Pro Thunderbolt 5 Smart Dock – SD25TB5 incl. 330W Netzteil
plus shipping charges
- Standardlieferung 29. July - 31. July
- Expresslieferung 28. July
- bei Bestellung innerhalb 12 hrs 07 min
Substitute part numbers:
210-BRFN, K23A003, DELL-SD25TB5
PRIPC2 IPC-Computer Thunderbolt 4 Quad-Display Port Replicator incl. 160W ac-adapter
plus shipping charges
Product Info
- Manufacturer
- Dell
- Item Number
- SD25TB5_300W
- Sub-Partnumbers
- 210-BRFN, K23A003, DELL-SD25TB5
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Thunderbolt 5

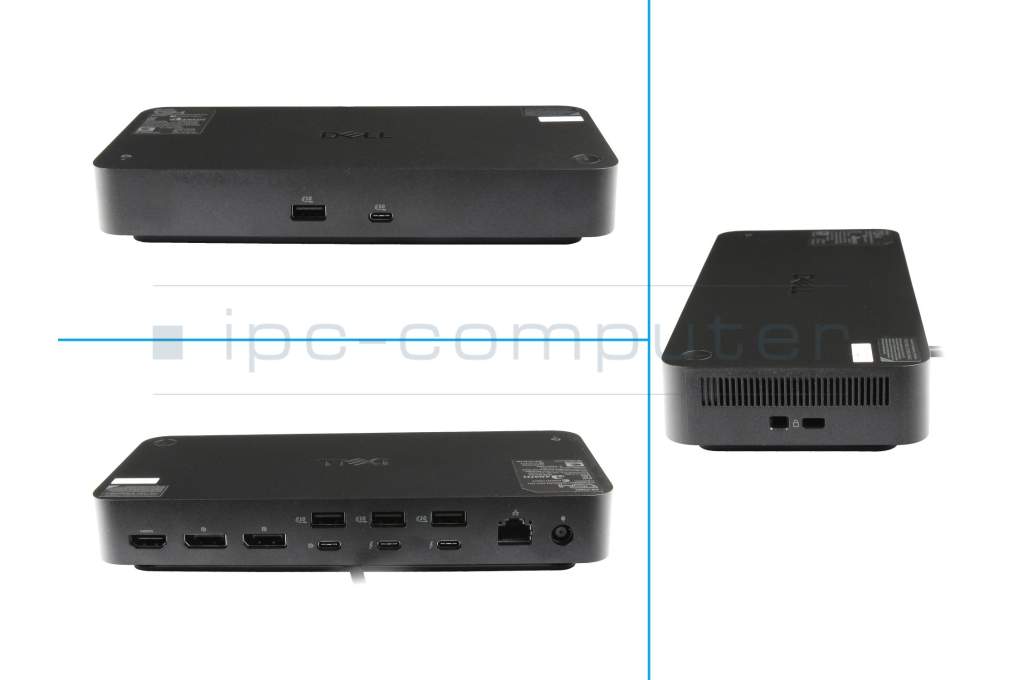

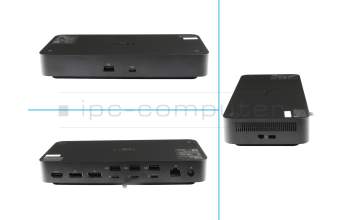

- Connectors
-
1x DC-In (Power supply)
1x Ethernet RJ-45 2.5Gbps
1x HDMI 2.1
1x USB-C 3.2 Gen 2
1x USB-C 3.2 Gen 2 + DisplayPort
2x DisplayPort 2.1
2x Kensington-Lock
2x Thunderbolt 5
4x USB-A 3.2 Gen 2 - Max. resolution of external monitors
-
1x 5K - 3440x1440 @ 60Hz
1x 8K - 7680x4320 @ 60Hz
2x 4K - 3840x2160 @ 60Hz
2x 6K - 6144 x 3456 @ 60Hz
3x 4K - 3840x2160 @ 120Hz
3x 4K - 3840x2160 @ 60Hz
3x WQHD - 3440x1440 @ 60 Hz
4x 4K - 3840x2160 @ 120Hz
4x 4K - 3840x2160 @ 60Hz
4x QHD - 2560x1440 @ 60Hz - Delivery includes
-
AC-Adapter
Manual
Pocket
Port Replicator
Power cable
Safety Information - Included ac-adaptor
- 330W
- Compatible operating systems
-
ChromeOS
Linux
Linux / Debian
Linux / Red Hat Enterprise
Linux / Ubuntu
Mac OS
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 20.5 cm / 9 cm / 3.5 cm
Vorteile
Lösen Sie eingeschränkte Anschlussmöglichkeiten schnell und sicher mit diesem Port Replikator und verbinden Sie auf einfache Weise eine Maus, Drucker, weitere USB-Geräten. Spiegeln oder Erweitern Sie Ihren Desktop auf mehrere externe Monitore. Hier finden Sie den vollständigen Bericht über weitere Vorteile.Mit einem USB-C-Anschluss benötigen Sie nicht nur kein zusätzliches Netzteil zum Betrieb des Notebooks, Sie können mit dem vorhandenen Port Replikator sogar Ihren Akku aufladen. Beachten Sie aber, dass über den USB-C Anschluss maximal eine Leistungsaufnahme von 100 Watt möglich ist. Sollte Ihr Notebook eine höhere Leistungsaufnahme haben, benötigen Sie weiterhin das Netzteil des Notebooks für den Betrieb.
Dell Pro Thunderbolt 5 Smart Dock – SD25TB5
The Dell Pro Thunderbolt 5 Smart Dock – SD25TB5 is a powerful docking station offering a wide range of connection options for professional workplaces. With cutting-edge Thunderbolt 5 technology, it enables fast data transfer, impressive video resolutions, and efficient power delivery in an elegant design. Ideal for demanding users requiring maximum connectivity and flexibility.
Technical Data
Management Functions
- Kernel DMA protection (DMA = Direct Memory Access)
- Port disablement
- Wake-on-LAN
- Dock power button sync
- PXE boot
- WLAN-to-LAN switch
- MAC address forwarding
- Intel AMT over Thunderbolt with selected Intel vPro PCs
- Dell Command Update (DCU)
Monitor Connections & Video
- Number of monitor ports: 4
- Supported display modes:
- 6K @ 60Hz
- 8K @ 60Hz
- 4K @ 120Hz
- 5K @ 60Hz
- 4K @ 60Hz
- WQHD @ 60Hz
- QHD @ 60Hz
- Supported resolutions:
- 7680 x 4320
- 2560 x 1440
- 6144 x 3456
- 3440 x 1440
- 5120 x 2160
- 3840 x 2160
Interfaces / Ports
- Host interfaces:
- 2 x DisplayPort 2.1
- 1 x HDMI 2.1
- 1 x USB-C 3.2 Gen 2 multi-function DisplayPort 2.1

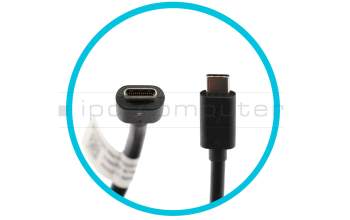

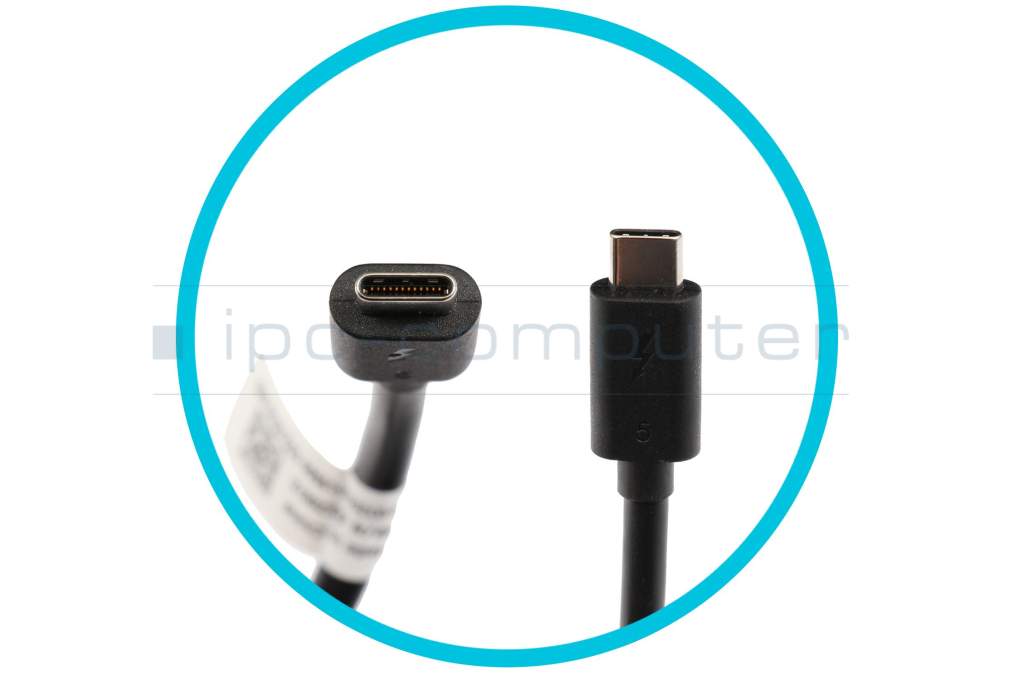

- 2 x Thunderbolt 5
- USB ports (data only):
- 4 x USB-A 3.2 Gen 2 (10 Gbps)
- 1 x USB-C 3.2 Gen 2 (10 Gbps)
- Total USB ports: 6
- Ethernet: 2.5 Gigabit Ethernet
- Network (RJ-45): Yes
Software & Operating Systems
- Supported OS: Windows 10, Windows 11, Ubuntu 24.04, macOS, Red Hat Enterprise Linux 9.7, ChromeOS 141
Power Supply
- Maximum power supply: 330 W
- Power source: Power adapter
Dimensions, Weight & Others
- Height: 205 mm
- Width: 90 mm
- Depth: 35,3 mm
- Weight: 632 g

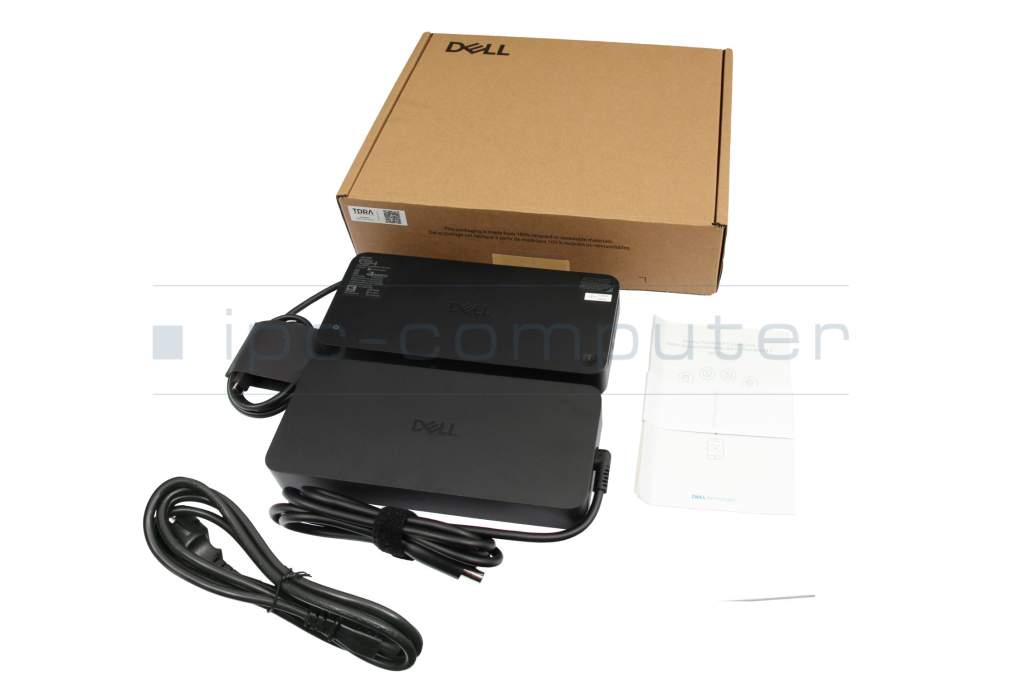

Package Contents
- SD25TB5 Docking Station
- Power supply
- Power cable
- Documentation (Quick start, safety, environmental, regulatory information)
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N SD25TB5_300W
- Alienware 16 Area-51 AA16250 , Alienware 16 Area-51 AA16250 , Alienware 18 Area-51 AA18250 , Dell Pro Max 18 Plus MB18250 , Dell 16 Premium DA16250 , Dell Pro Max 14 Premium MA14250
