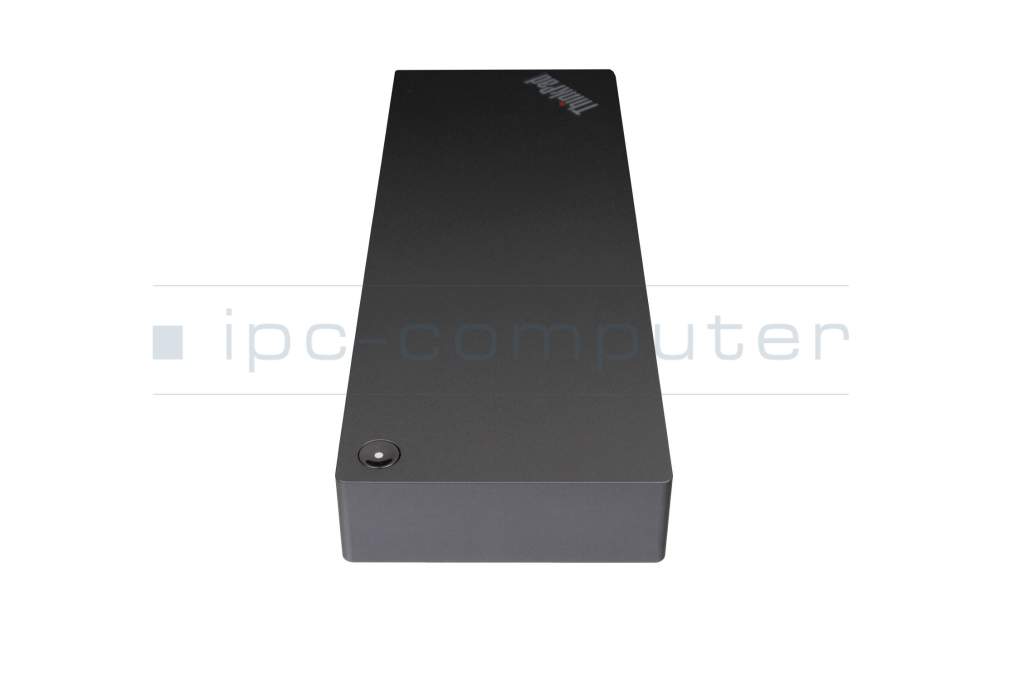

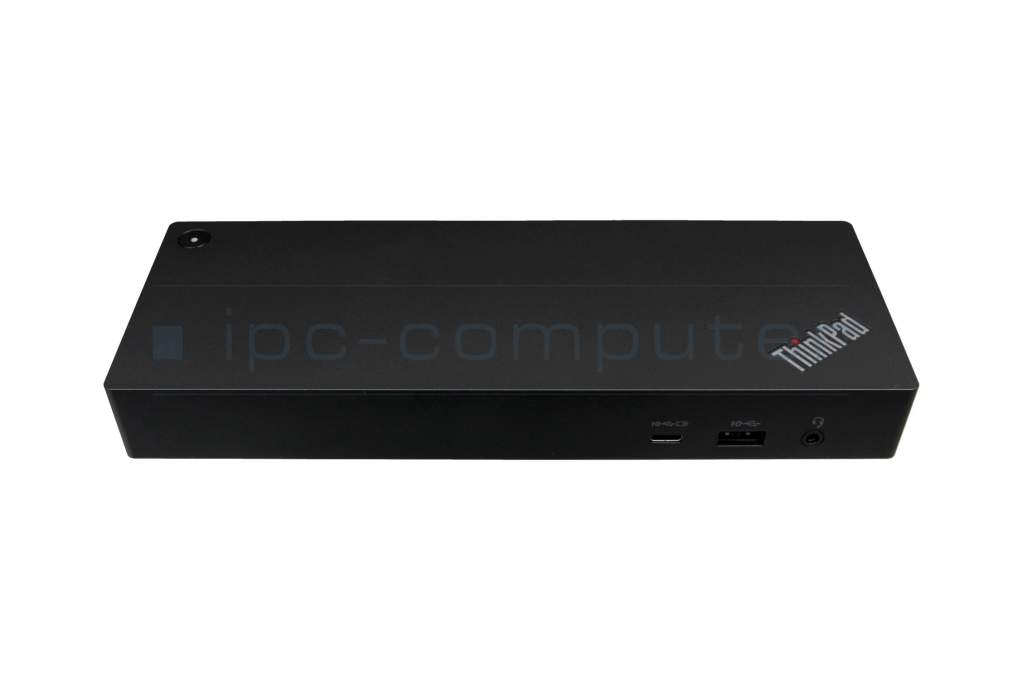

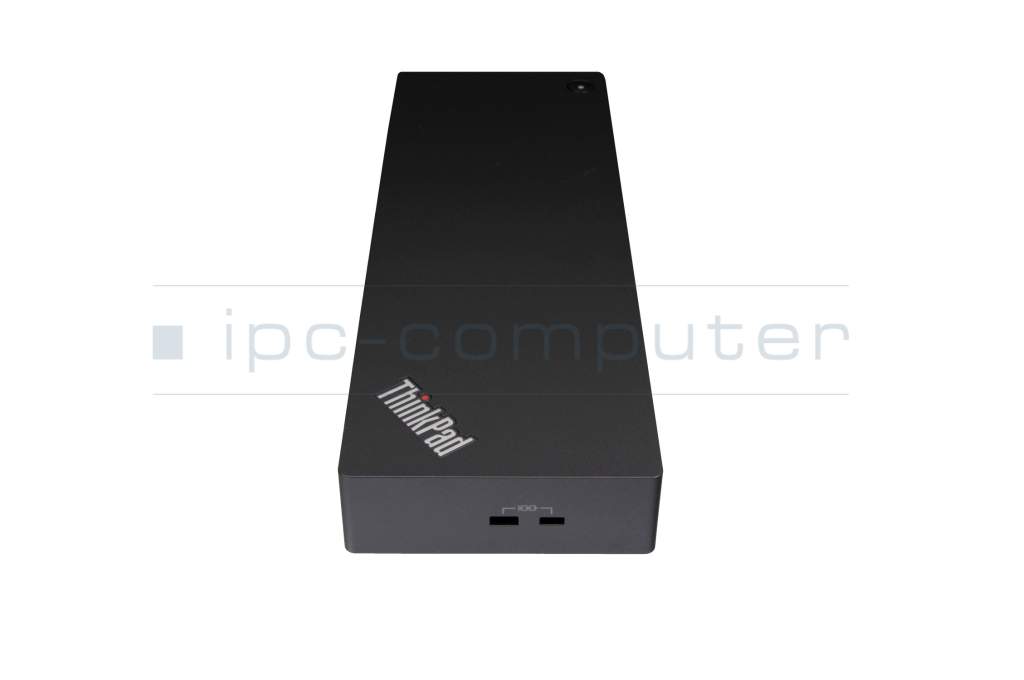

Lenovo SD20W66855 ThinkPad Thunderbolt 4 Workstation Dock incl. 300W Netzteil

283^00€

incl. Tax (19%)
plus shipping charges

In stock.

Standardlieferung 8. June - 9. June
Expresslieferung 8. June
bei Bestellung innerhalb 16 hrs 08 min

Manufacturer: Lenovo
Item Number: SD20W66855
Safety information: Sicherheits- & Herstellerkontakt-Informationen

Common data

Condition: New

Technical Data

Connexion to the laptop: Thunderbolt 4
Connectors: 1x Audio-Combo
1x Ethernet (RJ-45)
1x HDMI 2.1
1x Lenovo Split
1x Thunderbolt 4
1x USB-A 3.2 Gen 2 + "Always On" Charging
1x USB-C 3.2 Gen 2 + "Always On" Charging
2x DisplayPort 1.4
3x USB-A 3.1 Gen 1
Max. resolution of external monitors: 1x 8K - 7680x4320 @ 30Hz
4x 4K - 3840x2160 @ 60Hz

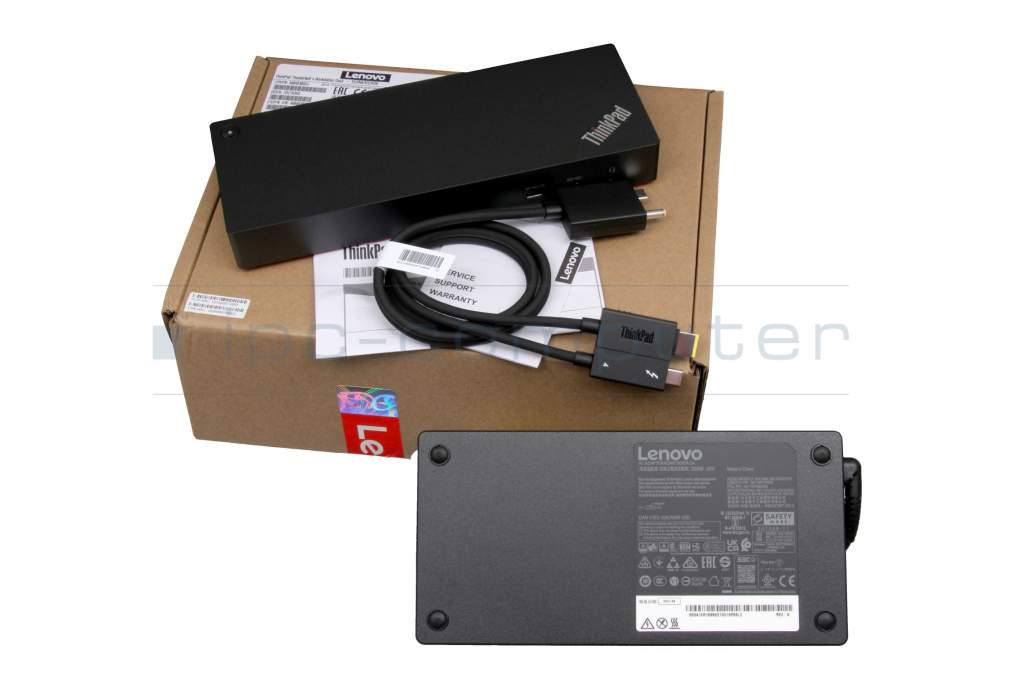

Delivery includes: AC-Adapter
Manual
Port Replicator
Power cable
split cable
Included ac-adaptor: 300W
Compatible operating systems: Linux / Ubuntu
Windows 10 (32bit/64bit)
Windows 11
Length / Width / Hight: 22 cm / 8 cm / 3 cm

Lenovo ThinkPad Thunderbolt 4 Workstation Dock (300W) - Maximum performance for your workplace

The Lenovo ThinkPad Thunderbolt 4 Workstation Dock (300W) is the perfect solution for demanding users who expect a tidy workstation. With up to 230W charging power via split cable or up to 100W via USB-C.

Data transfers at up to 40 Gbps and four 4K monitors or one 8K display. Thanks to Thunderbolt 4, you can enjoy a stable connection for video, data and power.

Highlights at a glance

Up to 230W charging power for powerful laptops & workstations
Support for up to 4x 4K @ 60Hz or 1x 8K @ 30Hz
Thunderbolt 4 with 40 Gbit/s data transfer
Compatible with Thunderbolt 3/4, USB4 & USB-C
Cleverly placed connections for maximum organization
Ideal for home office, business & professional workstations
Support for Windows 10/11 and Ubuntu 22.04
Intelligent remote management: Lenovo Dock Manager app for optimized firmware update and management experience

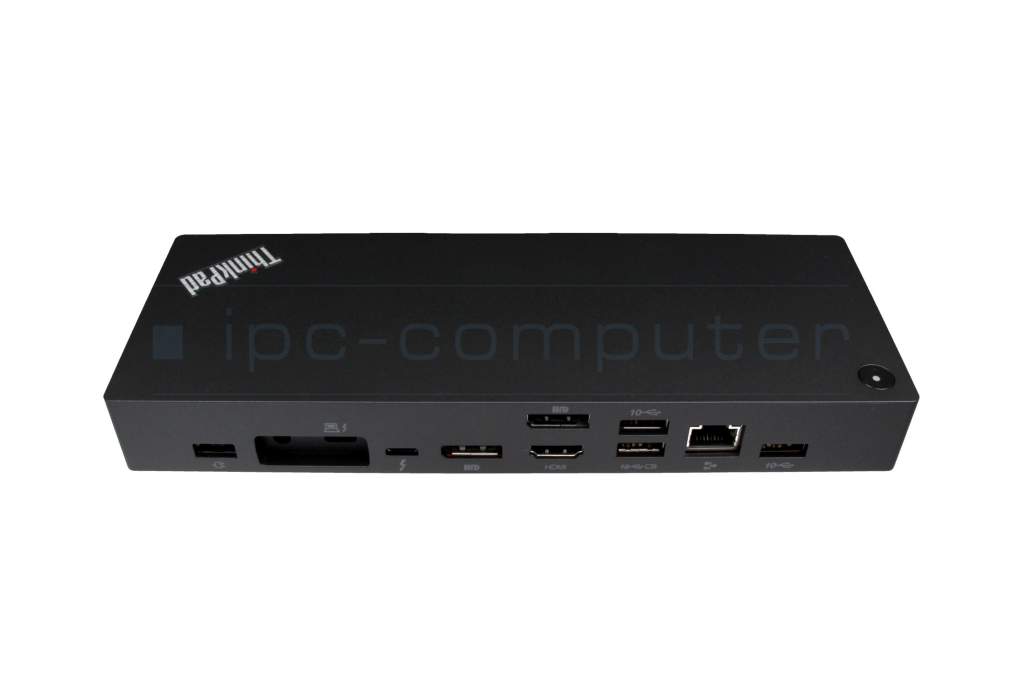

Connections & features

1x Thunderbolt 4
2x DisplayPort 1.4
1x HDMI 2.1
4x USB-A
1x USB-C
Gigabit LAN
3.5 mm audio combo jack
NanoSaver & MicroSaver security connection

The docking station is suitable for systems with a combined Slim Tip/Thunderbolt connection. It can also be used with compatible USB-C/Thunderbolt devices thanks to the detachable split cable.
