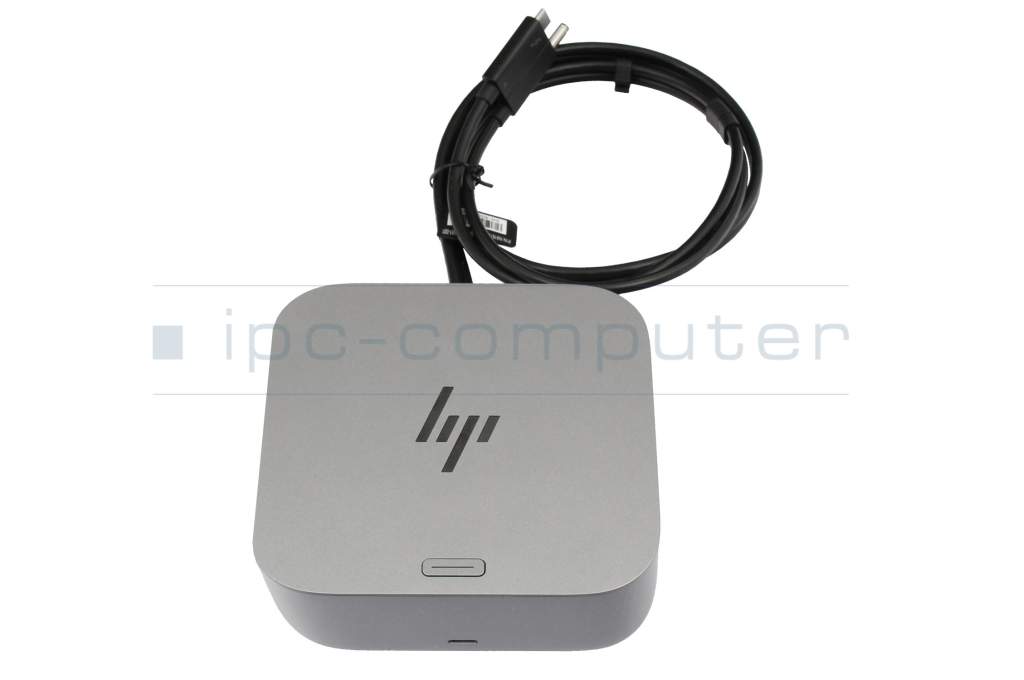

HP N91670-014 Thunderbolt 4 Ultra 280W G6 Dock incl. 330W Netzteil
plus shipping charges
- Standardlieferung 20. January - 20. January
- Expresslieferung 20. January
- bei Bestellung innerhalb 20 hrs 18 min
Substitute part numbers:
PJ34061-001
- Manufacturer
- HP
- Item Number
- N91670-014
- Sub-Partnumbers
- PJ34061-001
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Thunderbolt 4
- Connectors
-
1x DC-In (Power supply)
1x Ethernet RJ-45 2.5Gbps
1x HDMI 2.1
1x Kensington-Lock
1x Thunderbolt 4
1x USB-C
1x USB-C 3.2 Gen 2
1x USB-C 3.2 Gen 2 + DisplayPort
2x DisplayPort 1.4
2x USB-A 3.2 Gen 2
3x USB-A 3.2 Gen 2 - Max. resolution of external monitors
-
1x 5K - 5120x2880 @ 60Hz
2x 4K - 3840x2160 @ 60Hz
3x QHD - 2560x1440 @ 60Hz
4x 4K - 3840x2160 @ 60Hz - Delivery includes
-
AC-Adapter
Manual
Port Replicator
Power cable - Included ac-adaptor
- 330W
- Compatible operating systems
-
ChromeOS
Linux / Ubuntu
Mac OS
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 12.1 cm / 12.1 cm / 4.9 cm
HP Thunderbolt 4 Ultra 280 W G6 Docking Station (AW5M5UT)
Product number: AW5M5UT
Connection type: Thunderbolt™ 4 and 4.5 mm Power Barrel
Cable length: 1 m
Operating button type: Mechanical power button with RGB LED indicator
LED: Front LED bar: RGB LED; Power button: RGB LED (white, blue, yellow, green, red)

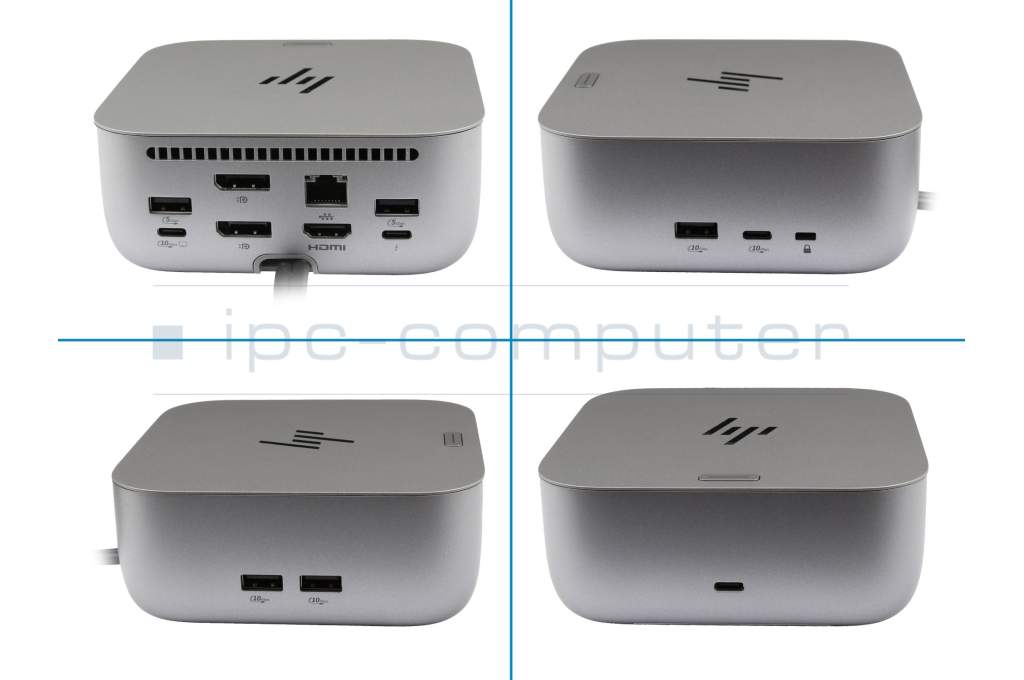

Front Ports
1 USB Type-C® 10 Gbps signaling rate (up to 15 W USB Power Delivery)
Right Side Ports
1 USB Type-A 10 Gbps signaling rate (charging);
1 nano security lock slot;
1 USB Type-C® 10 Gbps signaling rate (up to 15 W USB Power Delivery)
Left Side Ports
2 USB Type-A 10 Gbps signaling rate (charging)
Rear Ports
1 Thunderbolt™ 4 with USB Type-C® 40 Gbps signaling rate;
1 USB Type-C® 10 Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4);
2 USB Type-A 5 Gbps signaling rate (charging);
1 HDMI 2.1; 2 DisplayPort™ 1.4; 1 RJ-45 (2.5 GbE)
Power and Supply
External power adapter: 330 W
System power supply: Up to 280 W via 4.5 mm barrel or up to 180 W via Thunderbolt™ 4 cable
Power Delivery Profiles (PD): 5V/3A, 9V/3A, 12V/5A, 15V/5A, 20V/5A
Operating voltage: 19.5 V
Maximum current: 6.15 A
Video and Resolution
Video ports: HDMI; DisplayPort™; USB Type-C®; Thunderbolt™
Maximum resolution: Up to 8K (as of 2026)
Maximum refresh rate: 360 Hz
External monitor support: Up to 4 external displays (depending on host configuration)
Security and Management
Security management: HP Wolf Security for Business; HP Sure Start; Nano security lock slot
Management software: Poly Lens with automatic firmware updates
Manageability features: HPCMSL; Offline firmware updates; PXE Boot; Wake on LAN; MAC address pass-through; LAN/WLAN switching; Intel® vPro® technology
Software and Compatibility
Included software: myHP; HP Quick Connect
Drivers included: Intel® and Realtek NIC drivers (Windows/ARM/Linux)
Supported operating systems: Windows 10/11; macOS; Linux; ThinPro; ChromeOS
Minimum system requirements: USB Type-C® (Alt Mode) or Thunderbolt™ 4
Physical Specifications
Dimensions: 12.1 x 12.1 x 4.95 cm
Weight: 790 g
Package weight: 1.14 kg
Sustainability: 35% post-consumer recycled plastic
Operating Conditions
Storage temperature: -20 to 60 °C
Operating humidity: 10 to 90% non-condensing
Operating altitude: Up to 3,048 m

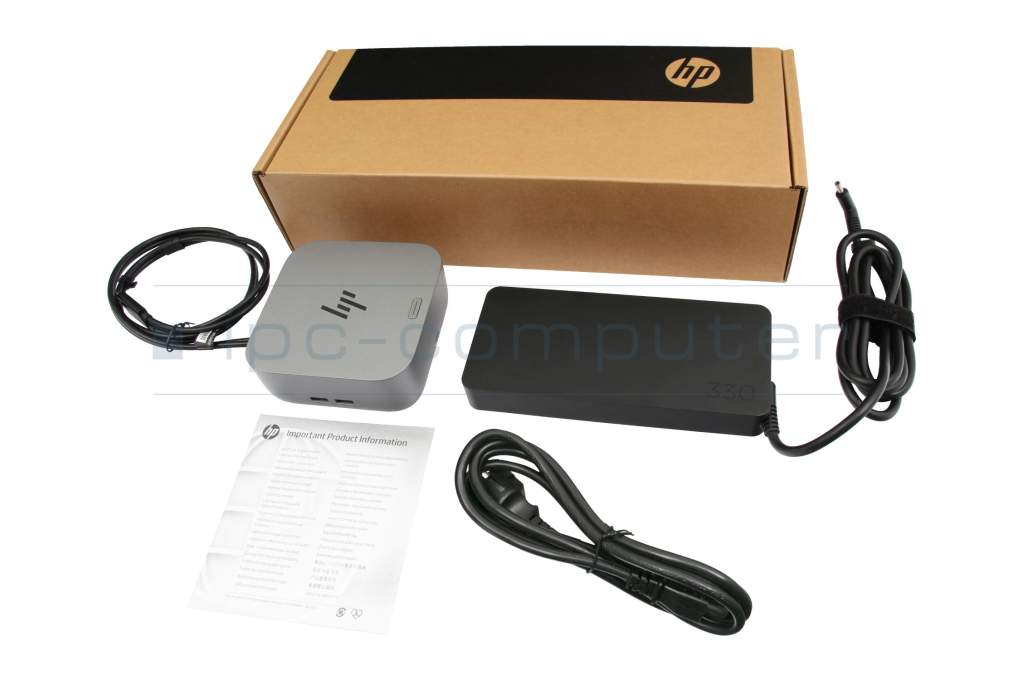

What's in the Box
HP Thunderbolt 4 Ultra 280 W G6 Docking Station;
330 W Power Adapter;

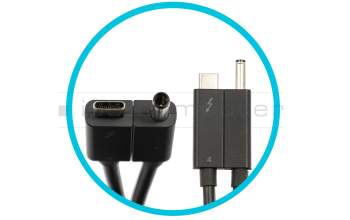

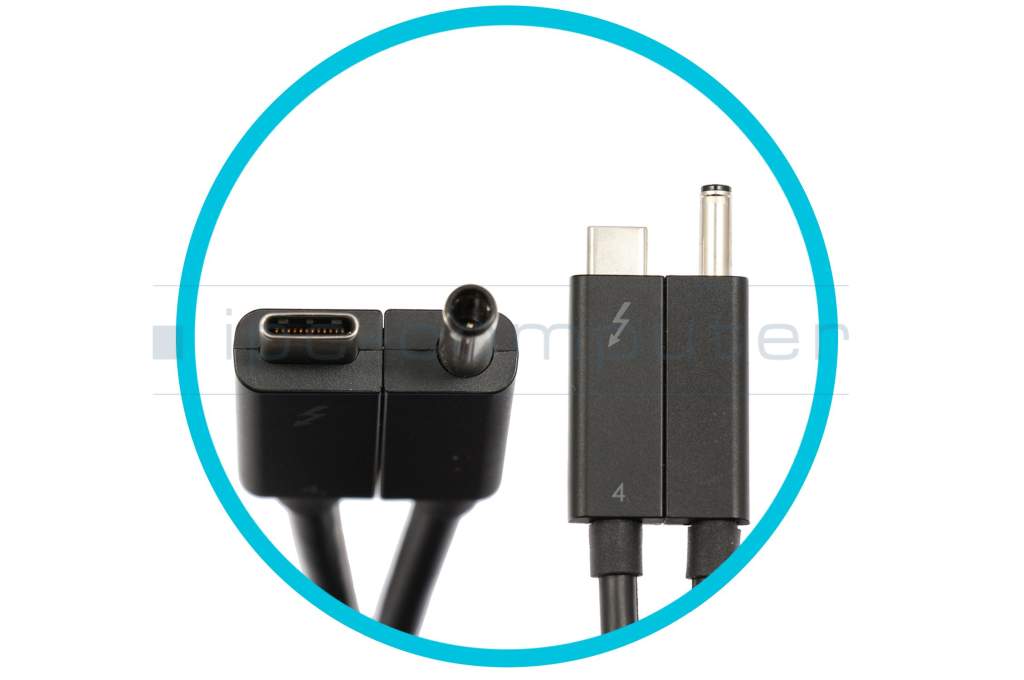

Thunderbolt™ 4 and 4.5 mm combined cable (1 m);
Power cord; Product information
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N N91670-014
- HP EliteBook x360 830 G8 , HP Envy x360 15-es0000 , HP Envy 13-bf0 , HP Spectre x360 14-ef2000 , HP Elite 830 x360 G10 , HP Omen 16-u1000 , HP ZBook Fury 16 G11 , HP Envy 14-fc0000 , HP EliteBook 830 G11 , HP EliteBook 865 G11
