HP L03472-017 Thunderbolt 4 Ultra 180W G6 Dock incl. 230W Netzteil
plus shipping charges
- 30 Tage Rückgabe & Lösungsversprechen
- Original Produkt
- Standardlieferung 20. January - 20. January
- Expresslieferung 19. January
- bei Bestellung innerhalb 9 hrs 50 min
- Manufacturer
- HP
- Item Number
- L03472-017
- Primary Partnummer
- M52945-013
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
The offered manufacturer number is an alternative (substitute) to the spare part number you are looking for.
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Thunderbolt 4
- Connectors
-
1x Ethernet (RJ-45)
1x HDMI 2.1
1x Kensington-Lock
1x Thunderbolt 4
1x USB-C
1x USB-C 3.2 Gen 2
1x USB-C 3.2 Gen 2 + DisplayPort
2x DisplayPort 1.4
2x USB-A 3.2 Gen 2
3x USB-A 3.2 Gen 2 - Max. resolution of external monitors
-
1x 5K - 5120x2880 @ 60Hz
2x 4K - 3840x2160 @ 60Hz
3x QHD - 2560x1440 @ 60Hz
4x 4K - 3840x2160 @ 60Hz - Delivery includes
-
AC-Adapter
Manual
Port Replicator
Power cable - Included ac-adaptor
- 230W
- Compatible operating systems
-
ChromeOS
Linux / Ubuntu
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 12.1 cm / 12.1 cm / 4.9 cm

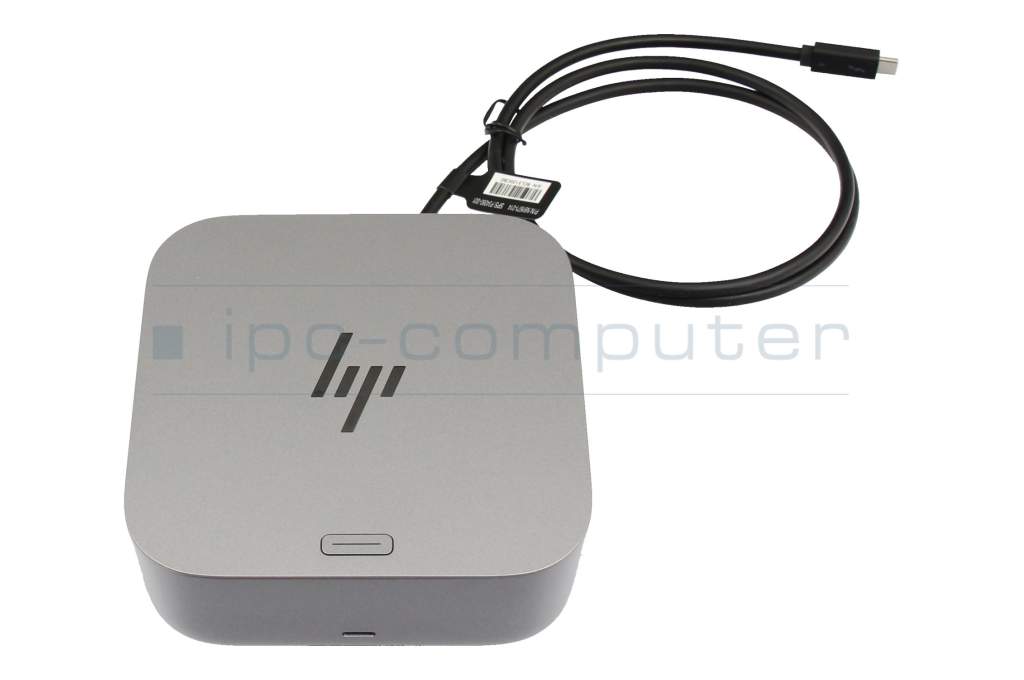

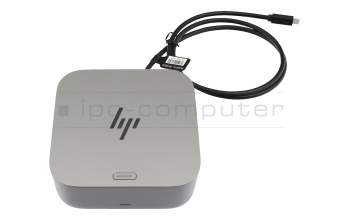

HP Thunderbolt 4 Ultra 180 W G6 Docking Station (9X481UT)
Product number: 9X481UT
Connection type: Thunderbolt™ 4
Cable length: 1 m
Operating button type: Mechanical power button with RGB LED indicator
LED: Front LED bar: RGB; Power button: RGB (white, blue, yellow, green, red)

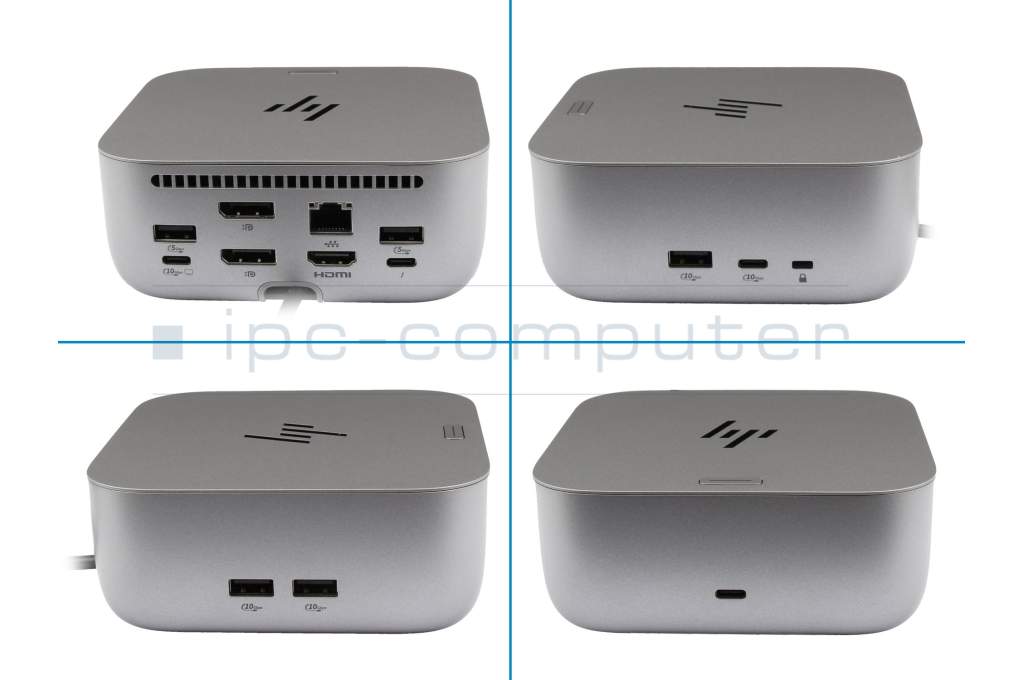

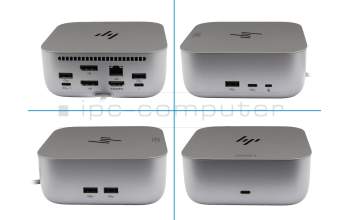

Front Ports
1 USB Type-C® 10 Gbps signaling rate (up to 15 W USB Power Delivery)
Right Side Ports
1 USB Type-A 10 Gbps signaling rate (charging);
1 nano security lock slot;
1 USB Type-C® 10 Gbps signaling rate (up to 15 W USB Power Delivery)
Left Side Ports
2 USB Type-A 10 Gbps signaling rate (charging)
Rear Ports
1 Thunderbolt™ 4 with USB Type-C® 40 Gbps signaling rate;
1 USB Type-C® 10 Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4);
2 USB Type-A 5 Gbps signaling rate (charging);
1 HDMI 2.1; 2 DisplayPort™ 1.4; 1 RJ-45 (2.5 GbE)
Power and Supply
External power adapter: 230 W
System power supply: Up to 180 W via Thunderbolt™ 4 cable
Power Delivery Profiles (PD): 5V/3A, 9V/3A, 12V/5A, 15V/5A, 20V/5A
Operating voltage: 19.5 V
Maximum current: 6.15 A
Video and Resolution
Video ports: HDMI; DisplayPort™; USB Type-C®; Thunderbolt™
Maximum resolution: Up to 8K (as of 2026)
Maximum refresh rate: 360 Hz
External monitor support: Up to 4 external displays
Security and Management
Security management: HP Wolf Security for Business; HP Sure Start; Nano security lock slot
Management software: Poly Lens with automatic firmware updates
Manageability features: HPCMSL; Offline firmware updates; PXE Boot; Wake on LAN; MAC address pass-through; LAN/WLAN switching; Intel® vPro® technology

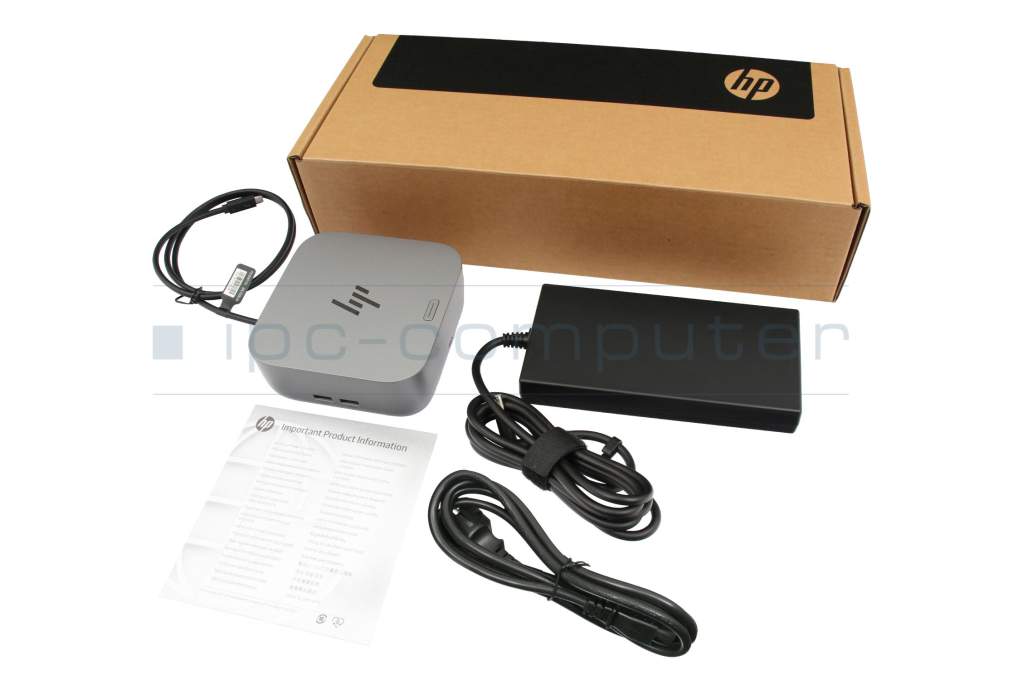

What's in the Box
HP Thunderbolt 4 Ultra 180 W G6 Docking Station;
230 W Power Adapter;

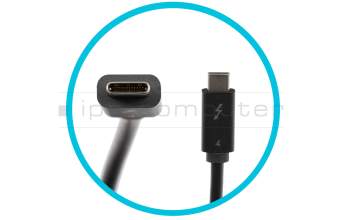

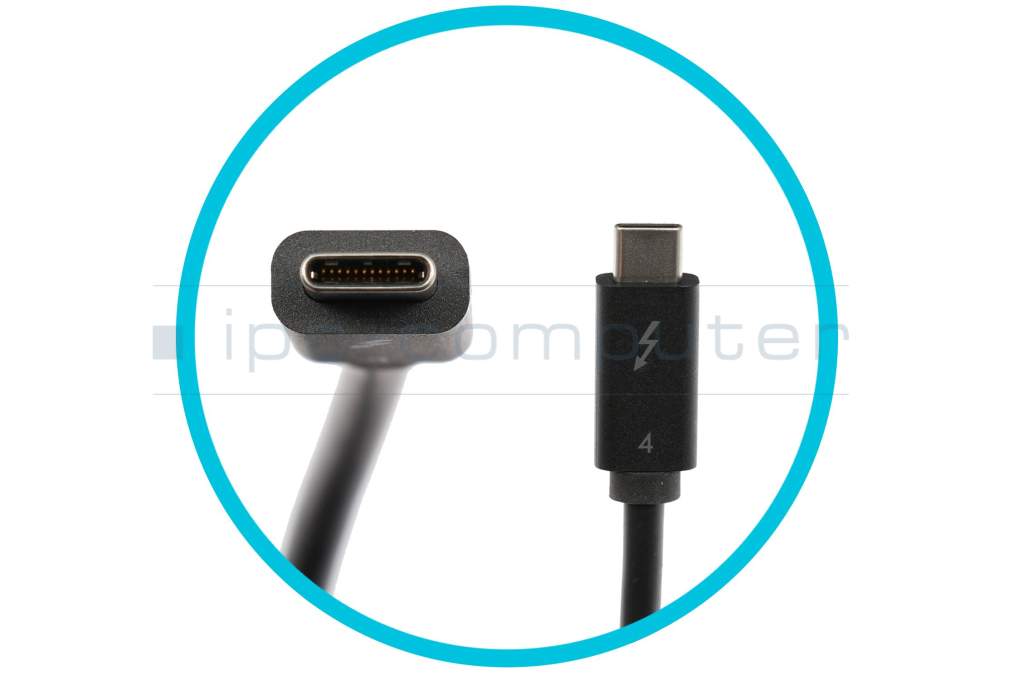

Thunderbolt™ 4 cable (1 m);
Power cord; Product information
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N L03472-017
- HP ZBook Firefly 15 G8 , HP Elite Dragonfly Max , HP ZBook Studio 16 G9 , HP Elite Dragonfly G3 , HP Omen 16-n0000 , HP ZBook Fury 16 G9 , HP Dragonfly Folio G3 , HP ZBook Fury 16 G11 , HP EliteBook 6 G1i 16 , HP ProBook x360 435 G7
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
