Dell HA330PM240 Pro Thunderbolt 5 Dock – WD25TB5 incl. 330W Netzteil
plus shipping charges
- Standardlieferung 5. March - 9. March
- Expresslieferung 4. March
- bei Bestellung innerhalb 11 hrs 11 min
- Manufacturer
- Dell
- Item Number
- HA330PM240
- Primary Partnummer
- 0KF3RW
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
The offered manufacturer number is an alternative (substitute) to the spare part number you are looking for.
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Thunderbolt 5
- Connectors
-
1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x HDMI 2.1
1x Kensington-Lock
1x Noble Wedge Lock
1x USB-C 3.2 Gen 2
1x USB-C 3.2 Gen 2 + DisplayPort
2x DisplayPort 2.1
2x Thunderbolt 5
4x USB-A 3.2 Gen 2 - Max. resolution of external monitors
-
1x 5K - 3440x1440 @ 60Hz
1x 8K - 7680x4320 @ 60Hz
2x 4K - 3840x2160 @ 60Hz
2x 6K - 6144 x 3456 @ 60Hz
3x 4K - 3840x2160 @ 120Hz
3x 4K - 3840x2160 @ 60Hz
3x WQHD 3440 × 1440 @ 60 Hz
4x 4K - 3840x2160 @ 120Hz
4x 4K - 3840x2160 @ 60Hz
4x QHD - 2560x1440 @ 60Hz - Delivery includes
-
AC-Adapter
Manual
Pocket
Port Replicator
Power cable
Safety Information - Included ac-adaptor
- 330W
- Compatible operating systems
-
ChromeOS
Linux
Linux / Debian
Linux / Red Hat Enterprise
Linux / Ubuntu
Mac OS
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 20.5 cm / 9 cm / 3.5 cm
Dell Pro Thunderbolt 5 Dock WD25TB5 – Elegant Connection Solution for Professional Demands
The Dell Pro Thunderbolt 5 Dock offers a versatile and powerful docking station designed specifically for professional users requiring high data transfer speeds and flexible connectivity options. Equipped with cutting-edge Thunderbolt 5 technology, the dock allows multiple devices to be connected simultaneously while delivering impressive video and data transmission. Its sleek design and durable construction make it an ideal companion for modern workplaces.

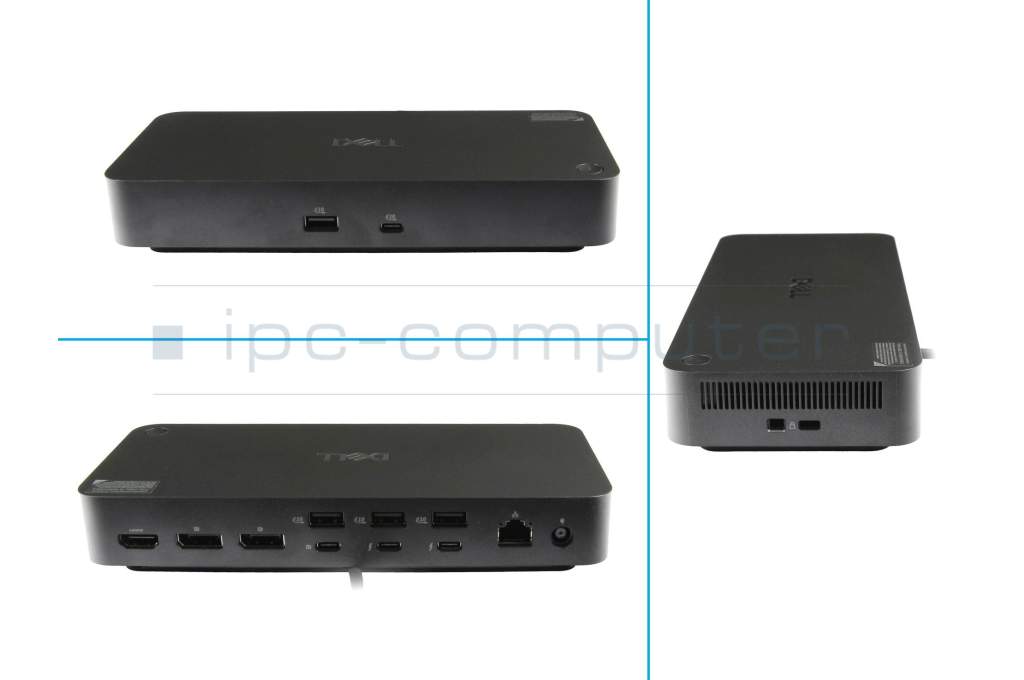

Connections / Ports
- 1 x Thunderbolt 5 (USB-C) port
- 1 x USB-C 10GbE (for network connection)
- 2 x USB-A 10Gbps (e.g., for peripherals)
- 1 x USB-C 10Gbps (additional data/accessory port)
- 1 x 3.5 mm stereo audio jack
- 1 x Headphone jack
- 1 x SD Card Reader (supports various formats)
- 1 x Kensington Lock Slot
- USB-C Power Delivery (up to 240W) for compatible laptops
Video resolution details and supported display modes
- Supports up to three 4K displays simultaneously at 60Hz
- 8K output at 30Hz (with compatible monitors and graphics cards)
- Supports HDR formats
- Supported display modes: extended, dual solutions, mirror mode
- Supported Display Modes
- QHD @ 60Hz
- WQHD @ 60Hz
- 4K @ 60Hz
- 5K @ 60Hz
- 6K @ 60Hz
- 8K @ 60Hz
- 4K @ 120Hz
Supported Resolutions- 3840 x 2160
- 5120 x 2160
- 2560 x 1440
- 3440 x 1440
- 7680 x 4320
- 6144 x 3456
Management features
- Firmware and software updates via Dell Management Tools
- Ethernet management via built-in 10GbE port
- Compatible with Dell Command | Monitor for monitoring and remote management
- Support for customizable LED status indicators
Power supply
- 240W Power Delivery via Thunderbolt 5 USB-C
- Energy-efficient, cool design
- No external power adapter needed for compatible laptops supporting Power Delivery

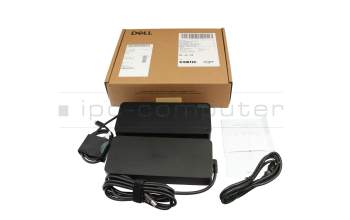

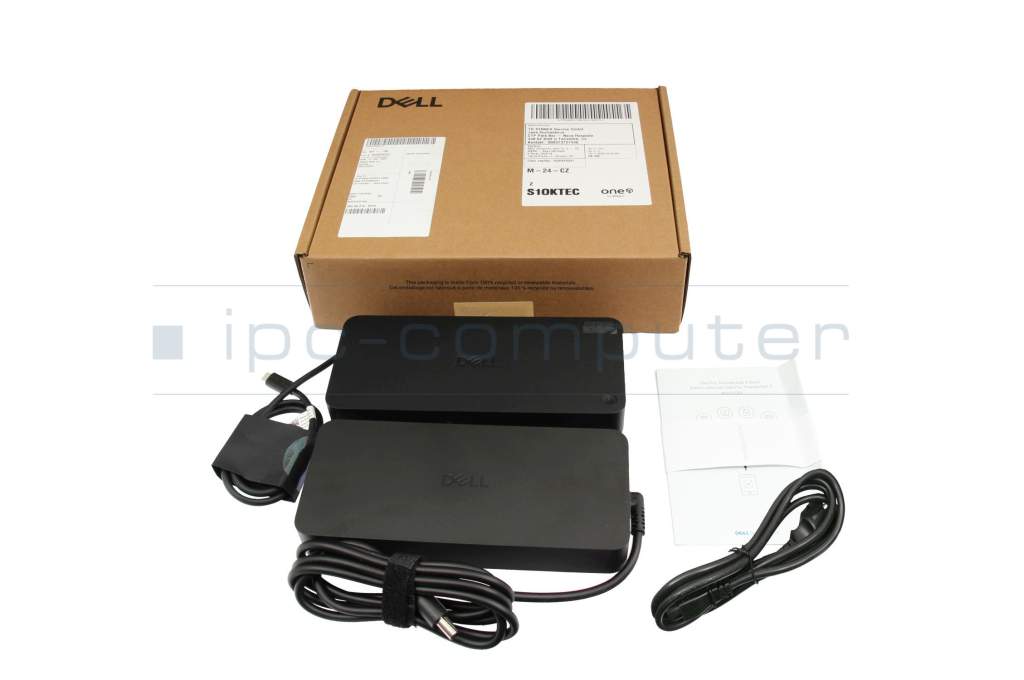

Package contents
- Dell Pro Thunderbolt 5 Dock WD25TB5
- 240W Power Adapter
- Thunderbolt 5 Cable
- Quick Start Guide and Warranty Card
Maximize flexibility and performance at your workspace with the Dell Pro Thunderbolt 5 Dock.
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N HA330PM240
- Alienware 16 Area-51 AA16250 , Alienware 18 Area-51 AA18250 , Dell Pro Max 18 Plus , Dell 16 Premium DA16250
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
