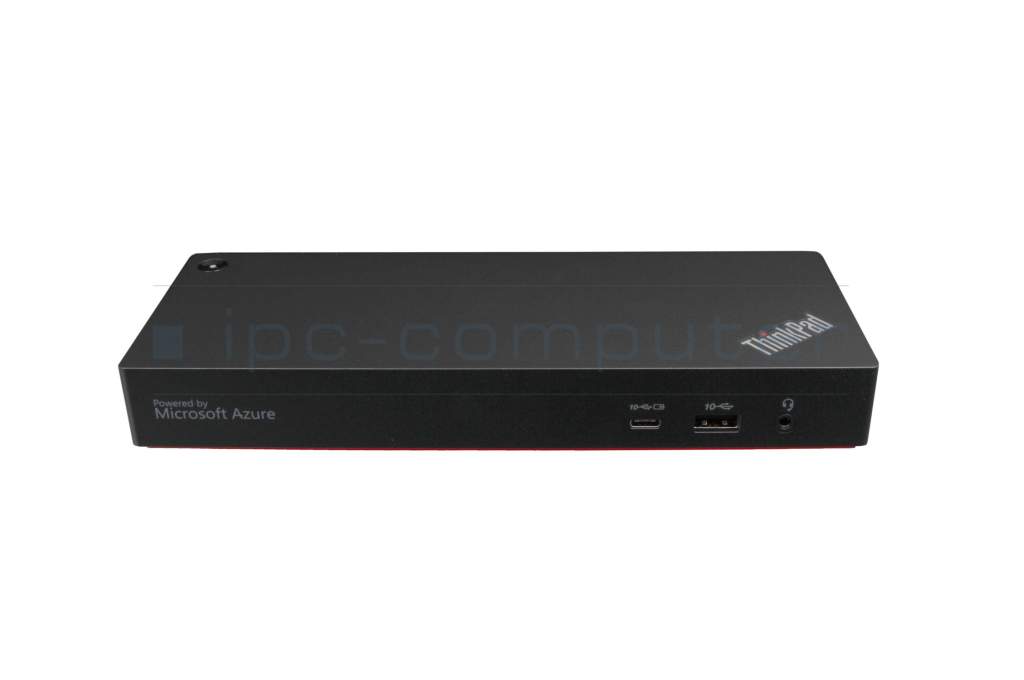

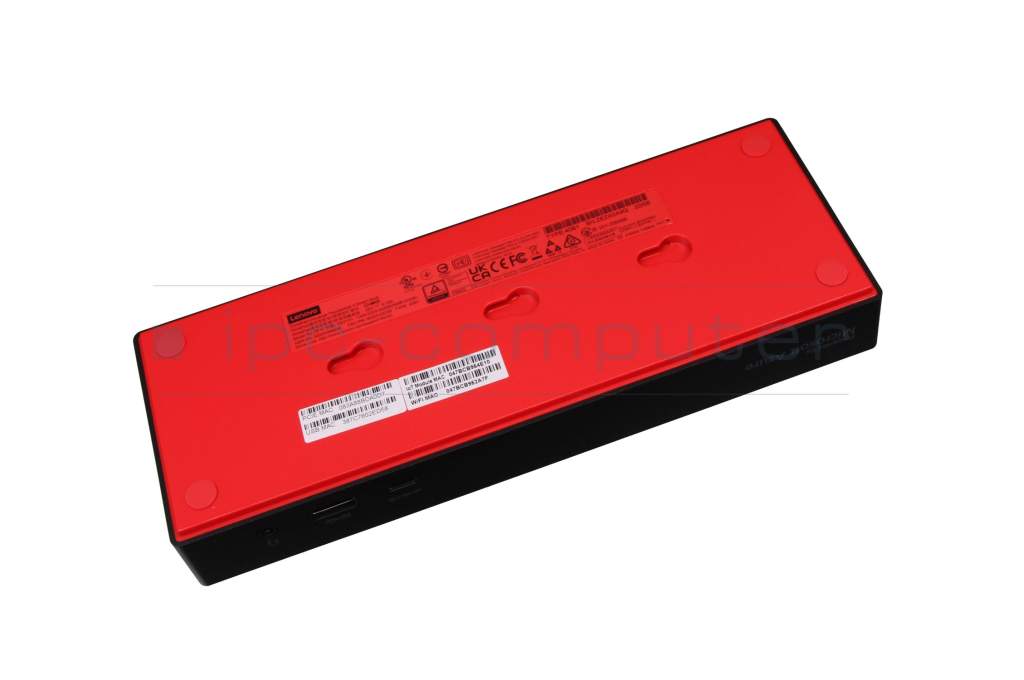

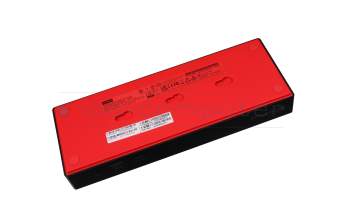

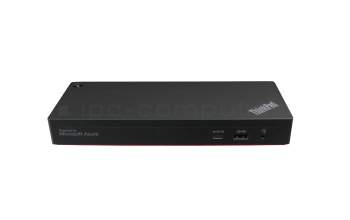

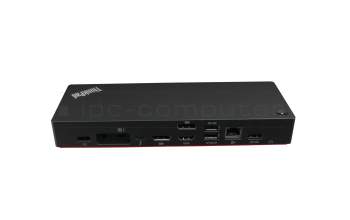

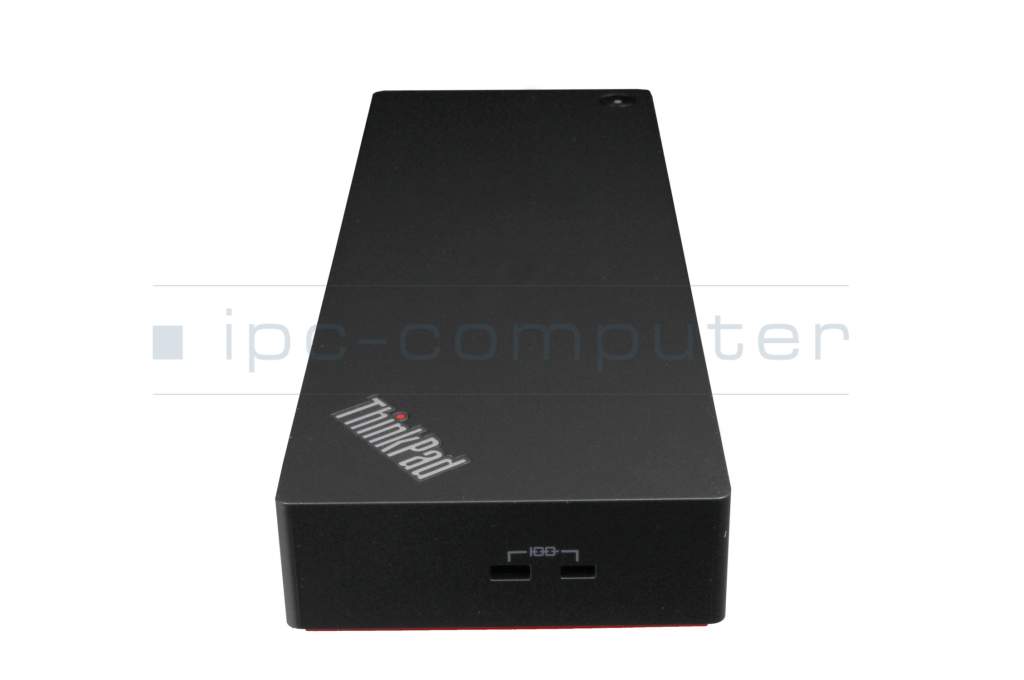

Lenovo 40B10135EU ThinkPad Universal Thunderbolt 4 Smart Dock incl. 135W Netzteil
plus shipping charges
Substitute part numbers:
SD20W66858, 201-200986, 40B1, 5D20V25726, DK2131
40B00135EU Lenovo ThinkPad Universal Thunderbolt 4 Dock incl. 135W ac-adapter
plus shipping charges
Product Info
- Manufacturer
- Lenovo
- Item Number
- 40B10135EU
- Sub-Partnumbers
- SD20W66858, 201-200986, 40B1, 5D20V25726, DK2131
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Thunderbolt 4

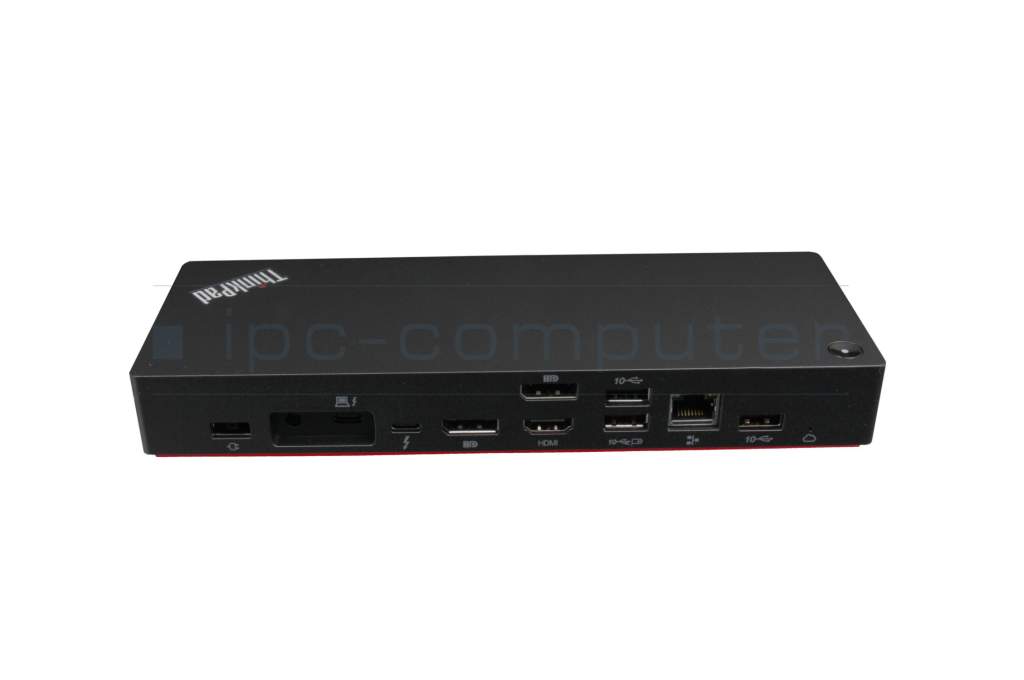

- Connectors
-
1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x HDMI 2.1
1x Thunderbolt 4
1x headphone (line-out)
2x DisplayPort 1.4
2x Kensington-Lock
2x USB-C
3x USB-C 3.2 Gen 2 - Delivery includes
-
AC-Adapter
Installation manual
License Agreement
Manual
Port Replicator

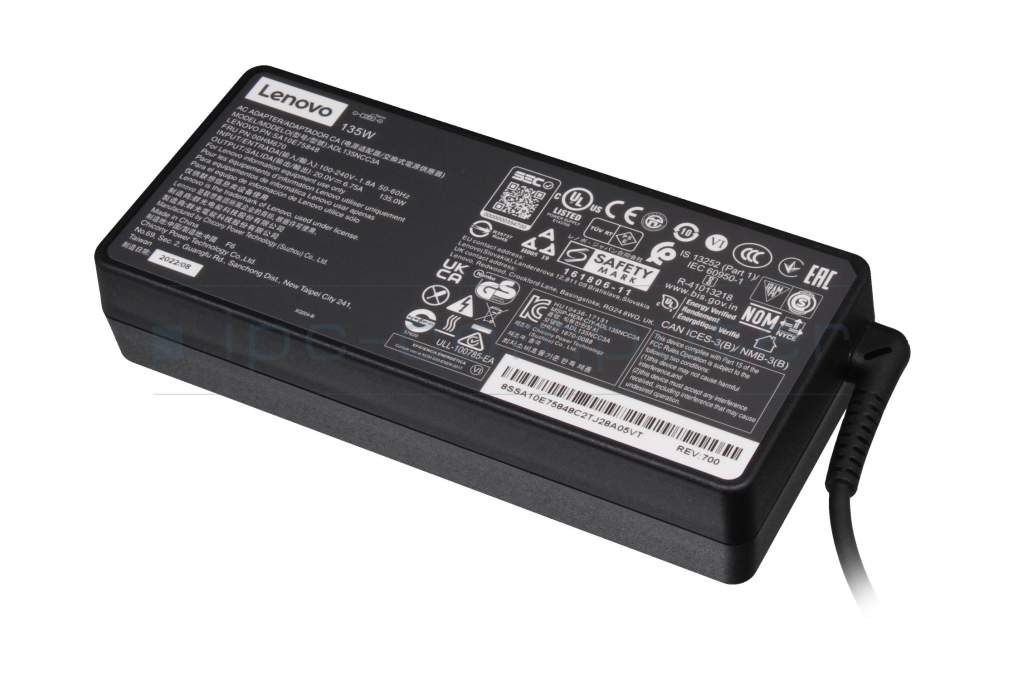

USB-C cabel - Included ac-adaptor
- 135W
- Compatible operating systems
-
Chrome
Linux / Ubuntu
Mac OS
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 22 cm / 8 cm / 3 cm
Pros
Use the existing interfaces of your laptop separately. Easily connect and disconnect the ports for e.g. mouse, printer, USB in a fast and secure way. Mirroring or extending your desktop to external monitors.
With a Dock connected via USB type-C, no additional power supply needed to operate your laptop and charge your battery. Please note that a maximum power consumption of 100 watts is possible via the USB-C connection. (may differ a little between manufacturers and constellation of laptop and dock). If your laptop has a higher power consumption, you will still need a additional power supply for operation.
All your wishes are fulfilled with this innovative dock. It offers unlimited compatibility and flexibility thanks to the variety of connections and its remote options.
Connections: All-in-one cable. The ThinkPad Universal Thunderbolt™ 4 Smart Dock offers more than 11 PC ports. So you can connect an 8K monitor or up to four 4K monitors.
Universal dock compatibility:
The universal dock supports Thunderbolt 3 and 4, USB 4 and USB-C, providing additional compatibility in multi-BS environments.
On top, it offers innovative remote management:
Remote firmware updates enable without a connected PC, remote port management, data analysis reports, diagnostic tools and Microsoft Azure Sphere security solution. This allows you to optimize IT managers' workflows and increase their productivity.
Video resolution
Maximum :8K
Number of Displays
Maximum :4 x 4K or 1 x 8K
Connection
0.7 m Thunderbolt 4 Cable
Video Port
2 x DisplayPort 1.4
1 x HDMI 2.1
1 x Thunderbolt 4
USB Port
4 x USB-A 3.1 Gen 2* (10 Gbps,
1 x always-on charging)
1 x USB Type-C (10 Gbps, 5V/3A)
1 x Thunderbolt 4 (40 Gbps, 5V/3A)
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N 40B10135EU
- Gigabyte AORUS 17X AZF , Schenker Work 17 M23 , Asus G814JV , Asus UX3404VA , Asus ROG Zephyrus M16 GU604VI , Asus VivoBook Pro 15 K6502ZE , LG Gram 17 (17Z990) , Acer Swift 3 (SF316-51) , LG Gram 16 (16Z90RS) , Dream Machine RX4090-17EU28 (GM7PX9N)
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
