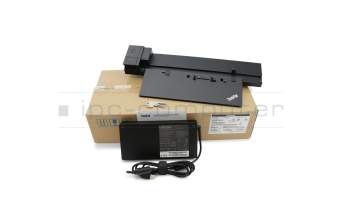

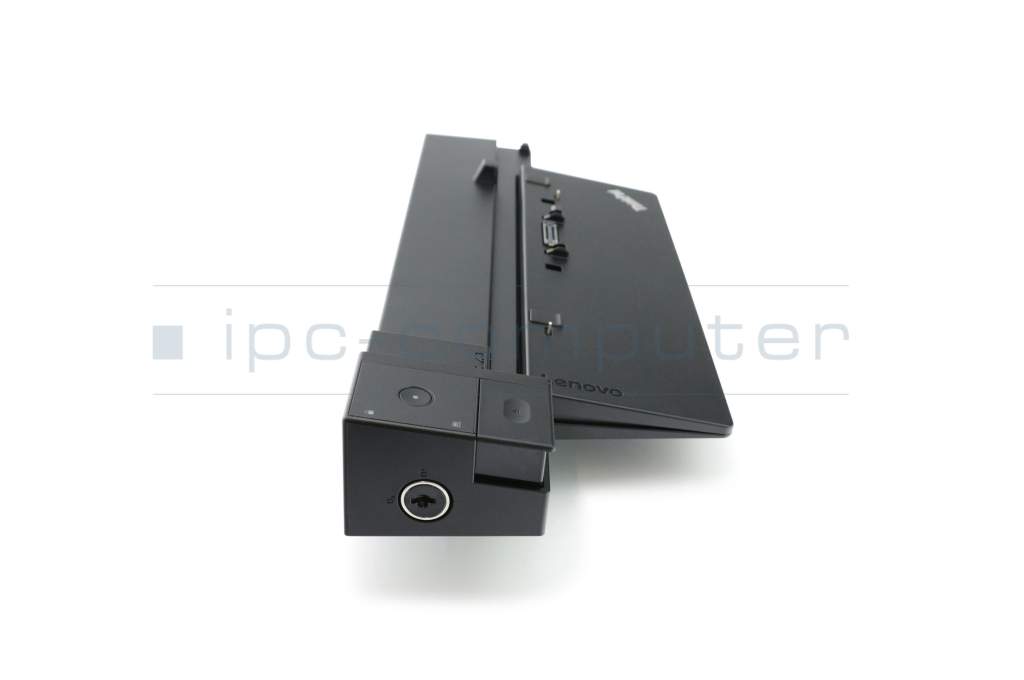

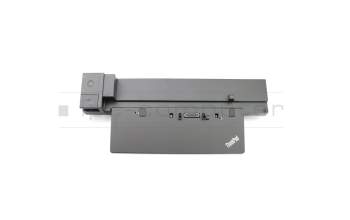

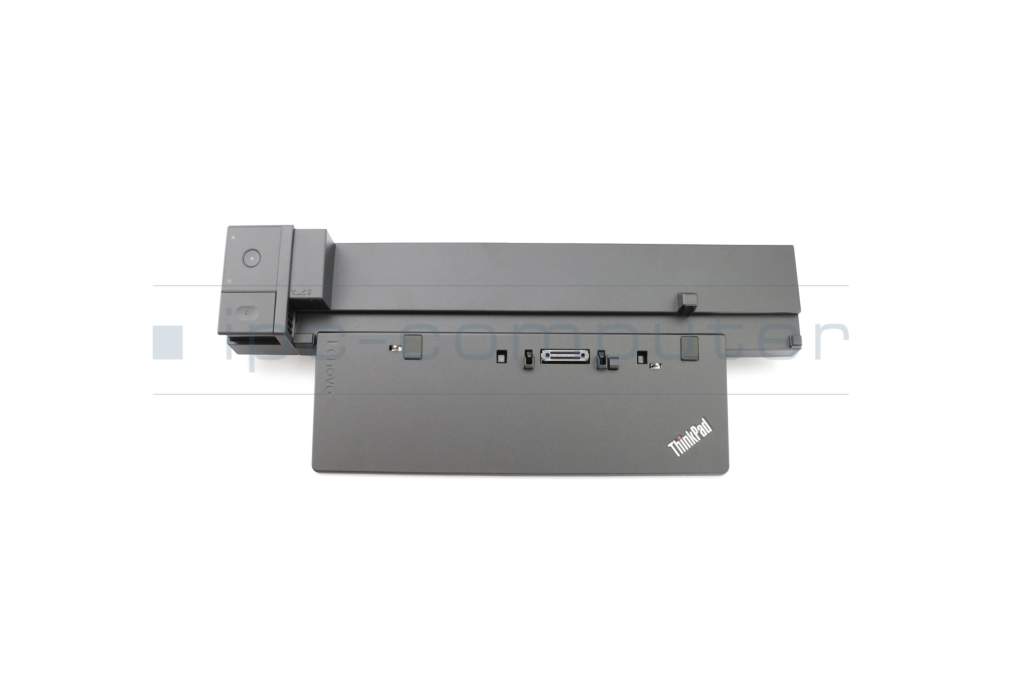

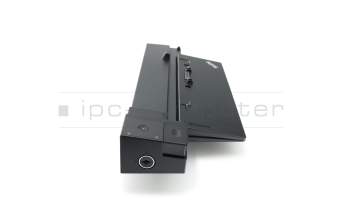

Lenovo 40A50230EU ThinkPad Workstation Docking Station incl. 230W Netzteil
plus shipping charges
Substitute part numbers:
40A50230AR, 40A50230BR, 40A50230CH, 40A50230CN, 40A50230DK, 40A50230IN, 40A50230IT
Not usable in conjunction with high-capacity batteries! Workstation dock is capable to support up to 4k2k(3840x2160)@60Hz via either 1 of 2 DP ports, or support dual 4k2k@30Hz via 2 DP ports. Actual video output on the dock is based on system video performance since the video signal is passing through from system to the Workstation dock. Some of the video ports do have exclusive use and are also dependent on the docked ThinkPad configuration.
- Manufacturer
- Lenovo
- Item Number
- 40A50230EU
- Sub-Partnumbers
- 40A50230AR, 40A50230BR, 40A50230CH, 40A50230CN, 40A50230DK, 40A50230IN, 40A50230IT
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Internal docking port

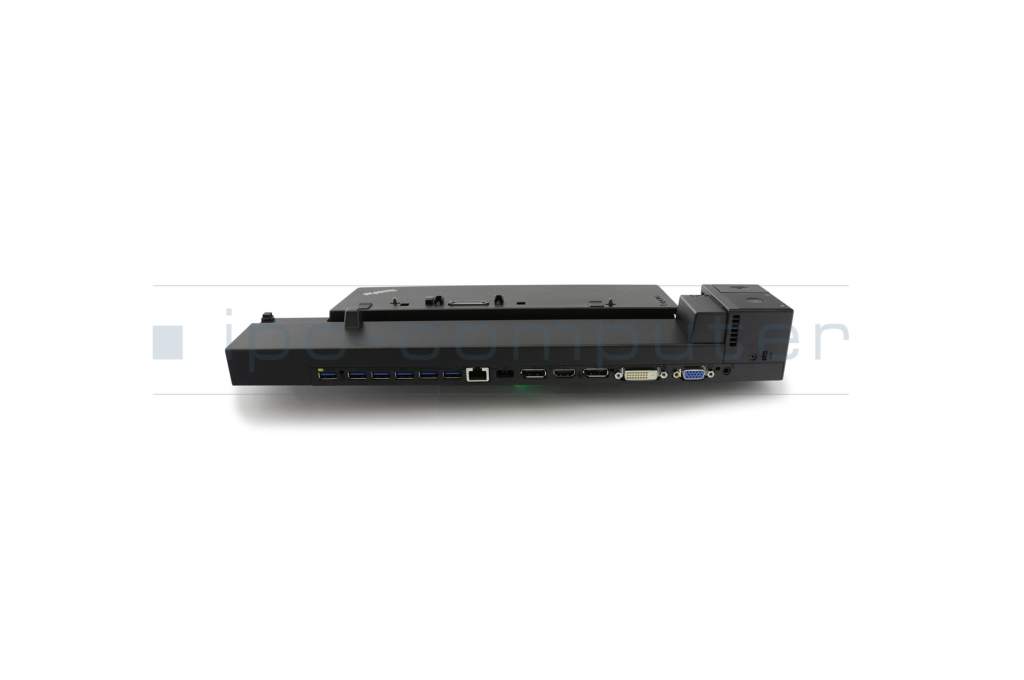

- Connectors
-
1x Audio-Combo
1x DC-In (Power supply)
1x DVI
1x Ethernet (RJ-45)
1x HDMI
1x Kensington-Lock
1x USB-A 3.0 SS (Super Speed USB)
1x VGA
2x DisplayPort
5x USB-A 3.0 - Max. resolution of external monitors
-
2x 4K2K - 4096x2160

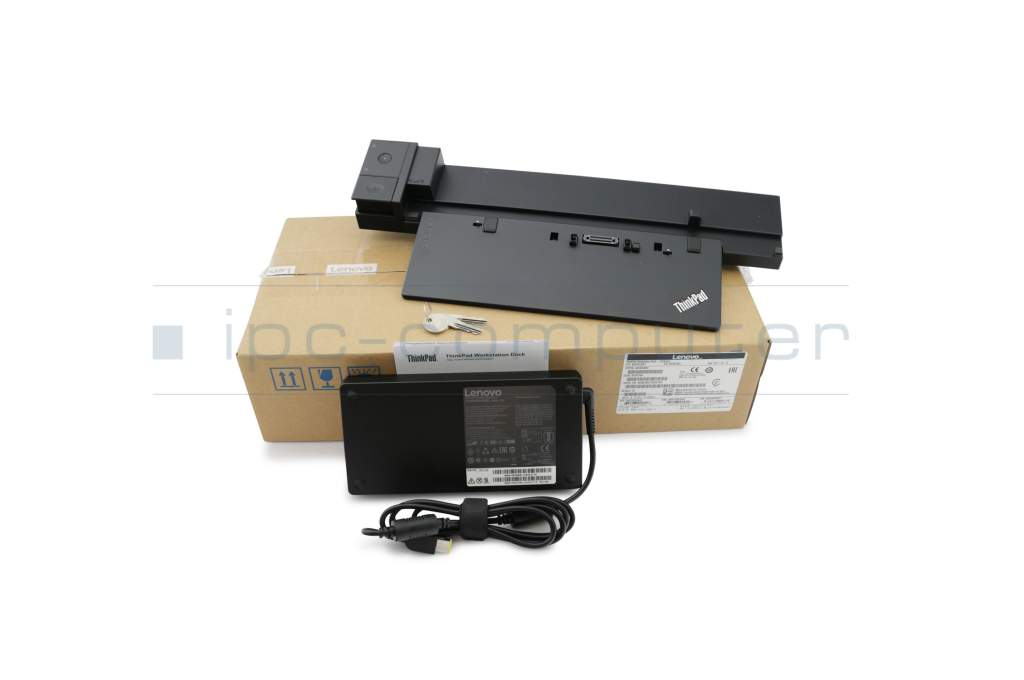

3x WUXGA - 1920x1200 - Delivery includes
-
2x keys for security lock
Docking Station
Documentation
Power cable - Included ac-adaptor
- 230W
- Compatible operating systems
-
Windows 10 (32bit/64bit)
Windows 7 (32bit/64bit)
Windows 8 (32bit/64bit)
Windows 8.1 (32bit/64bit) - Length / Width / Hight
- 0 cm / 16.5 cm / 5 cm
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N 40A50230EU
- Lenovo ThinkPad P50 (20EQ/20EN) , Lenovo ThinkPad P71 (20HK/20HL) , Lenovo ThinkPad P51 (20HH/20HJ/20MM/20MN) , Lenovo ThinkPad P70 (20ES/20ER)
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
