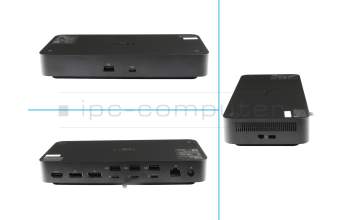

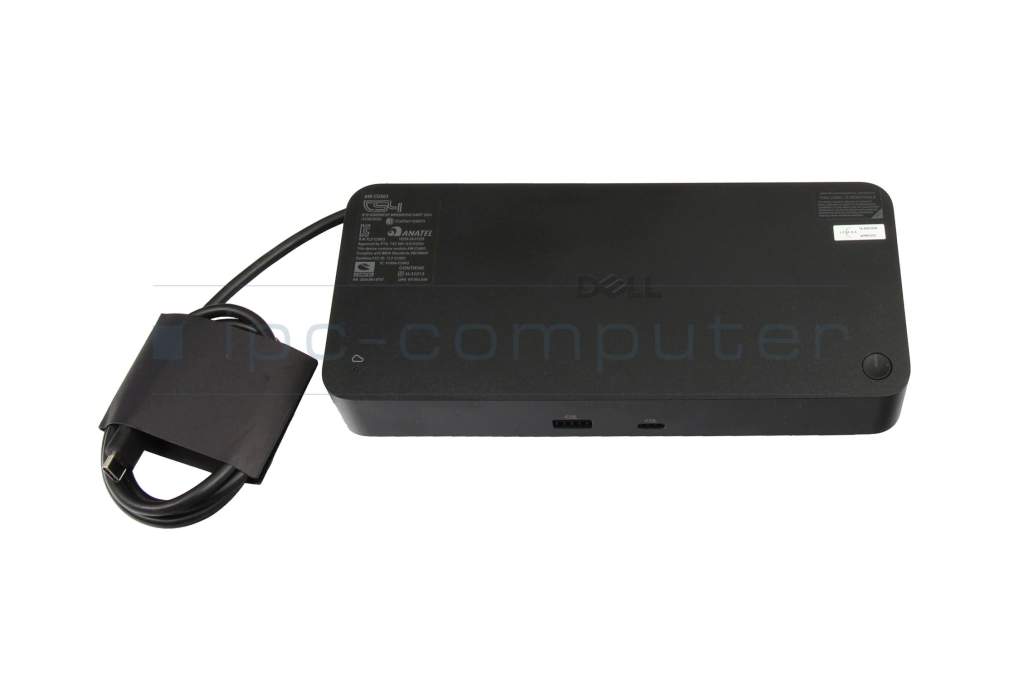

0MVVT8 Dell Pro TB5 Smart Dock – SD25TB5

PRIPC2 IPC-Computer TB4 Quad-Display Port Replicator incl. 160W ac-adapter

In stock

169^00€

incl. Tax (19%)
plus shipping charges

Product Info

Manufacturer: Dell
Item Number: 0MVVT8
Sub-Partnumbers: CN-0MVVT8, LA330PM240
Safety information: Sicherheits- & Herstellerkontakt-Informationen

The offered manufacturer number is an alternative (substitute) to the spare part number you are looking for.

Common data

Condition: New

Technical Data

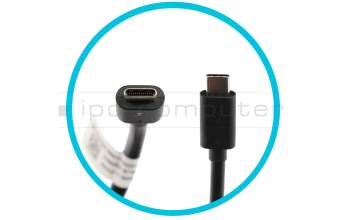

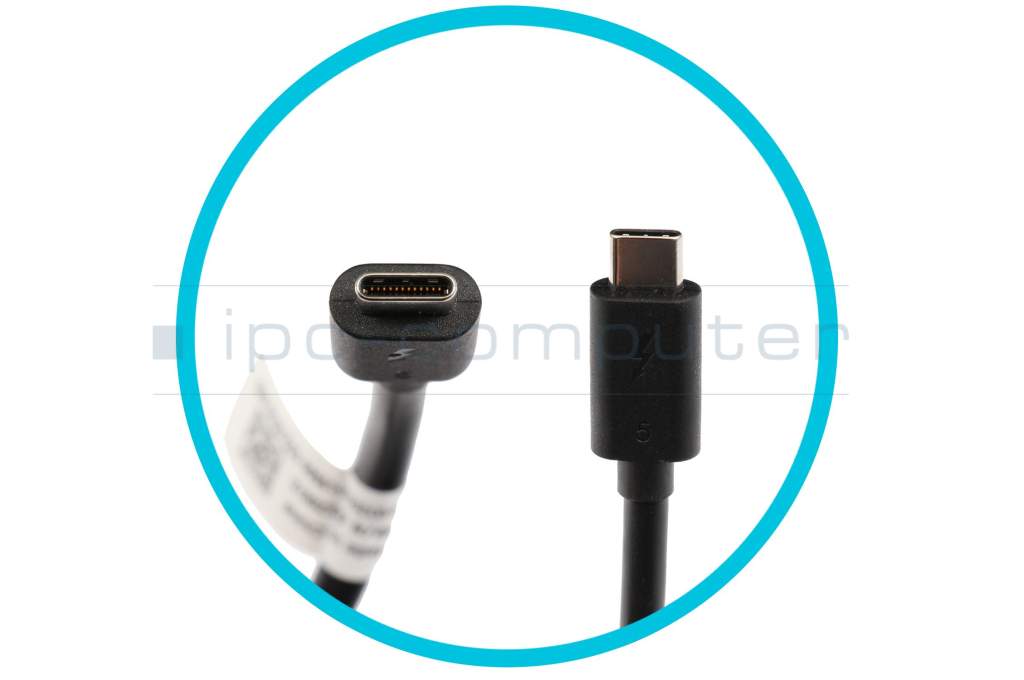

Connexion to the laptop: Thunderbolt 5

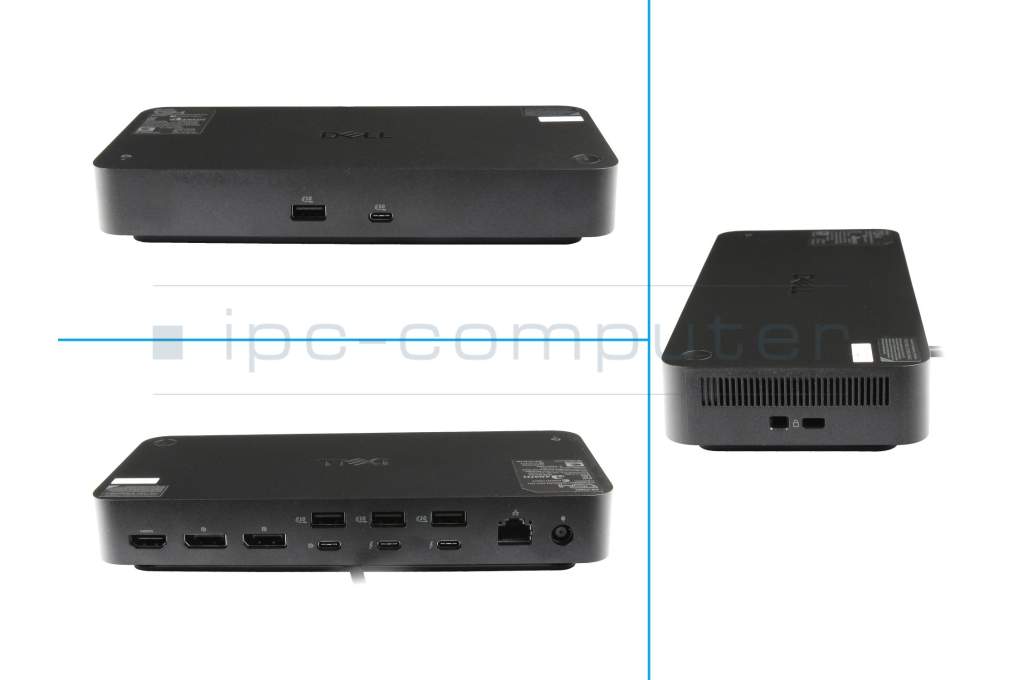

Connectors: 1x DC-In (Power supply)
1x Ethernet RJ-45 2.5Gbps
1x HDMI 2.1
1x USB-C 3.2 Gen 2
1x USB-C 3.2 Gen 2 + DisplayPort
2x DisplayPort 2.1
2x Kensington-Lock
2x Thunderbolt 5
4x USB-A 3.2 Gen 2
Max. resolution of external monitors: 1x 5K - 3440x1440 @ 60Hz
1x 8K - 7680x4320 @ 60Hz
2x 4K - 3840x2160 @ 60Hz
2x 6K - 6144 x 3456 @ 60Hz
3x 4K - 3840x2160 @ 120Hz
3x 4K - 3840x2160 @ 60Hz
3x WQHD - 3440x1440 @ 60 Hz
4x 4K - 3840x2160 @ 120Hz
4x 4K - 3840x2160 @ 60Hz
4x QHD - 2560x1440 @ 60Hz
Delivery includes: AC-Adapter
Manual
Pocket
Port Replicator
Power cable
Safety Information
Included ac-adaptor: 330W
Compatible operating systems: ChromeOS
Linux
Linux / Debian
Linux / Red Hat Enterprise
Linux / Ubuntu
Mac OS
Windows 10 (32bit/64bit)
Windows 11
Length / Width / Hight: 20.5 cm / 9 cm / 3.5 cm

Vorteile

Lösen Sie eingeschränkte Anschlussmöglichkeiten schnell und sicher mit diesem Port Replikator und verbinden Sie auf einfache Weise eine Maus, Drucker, weitere USB-Geräten. Spiegeln oder Erweitern Sie Ihren Desktop auf mehrere externe Monitore. Hier finden Sie den vollständigen Bericht über weitere Vorteile.

Mit einem USB-C-Anschluss benötigen Sie nicht nur kein zusätzliches Netzteil zum Betrieb des Notebooks, Sie können mit dem vorhandenen Port Replikator sogar Ihren Akku aufladen. Beachten Sie aber, dass über den USB-C Anschluss maximal eine Leistungsaufnahme von 100 Watt möglich ist. Sollte Ihr Notebook eine höhere Leistungsaufnahme haben, benötigen Sie weiterhin das Netzteil des Notebooks für den Betrieb.

Dell Pro Thunderbolt 5 Smart Dock – SD25TB5

The Dell Pro Thunderbolt 5 Smart Dock – SD25TB5 is a powerful docking station offering a wide range of connection options for professional workplaces. With cutting-edge Thunderbolt 5 technology, it enables fast data transfer, impressive video resolutions, and efficient power delivery in an elegant design. Ideal for demanding users requiring maximum connectivity and flexibility.

Technical Data

Management Functions

Kernel DMA protection (DMA = Direct Memory Access)
Port disablement
Wake-on-LAN
Dock power button sync
PXE boot
WLAN-to-LAN switch
MAC address forwarding
Intel AMT over Thunderbolt with selected Intel vPro PCs
Dell Command Update (DCU)

Monitor Connections & Video

Number of monitor ports: 4
Supported display modes:

6K @ 60Hz
8K @ 60Hz
4K @ 120Hz
5K @ 60Hz
4K @ 60Hz
WQHD @ 60Hz
QHD @ 60Hz

Supported resolutions:

7680 x 4320
2560 x 1440
6144 x 3456
3440 x 1440
5120 x 2160
3840 x 2160

Interfaces / Ports

Host interfaces:

2 x DisplayPort 2.1
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 multi-function DisplayPort 2.1
2 x Thunderbolt 5

USB ports (data only):

4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)

Total USB ports: 6
Ethernet: 2.5 Gigabit Ethernet
Network (RJ-45): Yes

Software & Operating Systems

Supported OS: Windows 10, Windows 11, Ubuntu 24.04, macOS, Red Hat Enterprise Linux 9.7, ChromeOS 141

Power Supply

Maximum power supply: 330 W
Power source: Power adapter

Dimensions, Weight & Others

Height: 205 mm
Width: 90 mm
Depth: 35,3 mm
Weight: 632 g

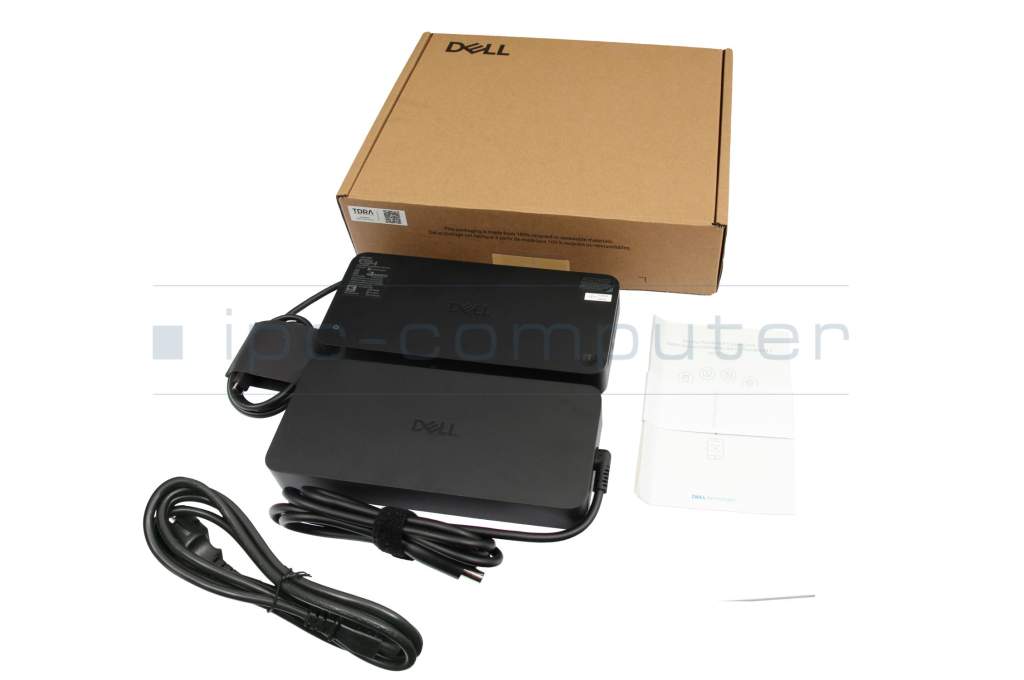

Package Contents

SD25TB5 Docking Station
Power supply
Power cable
Documentation (Quick start, safety, environmental, regulatory information)
