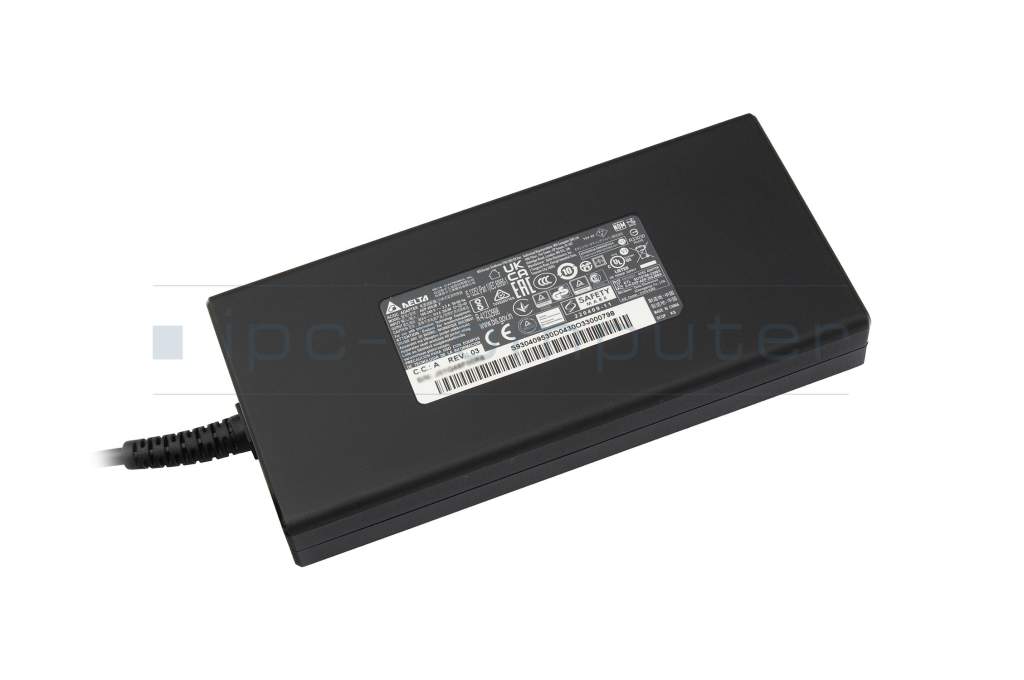

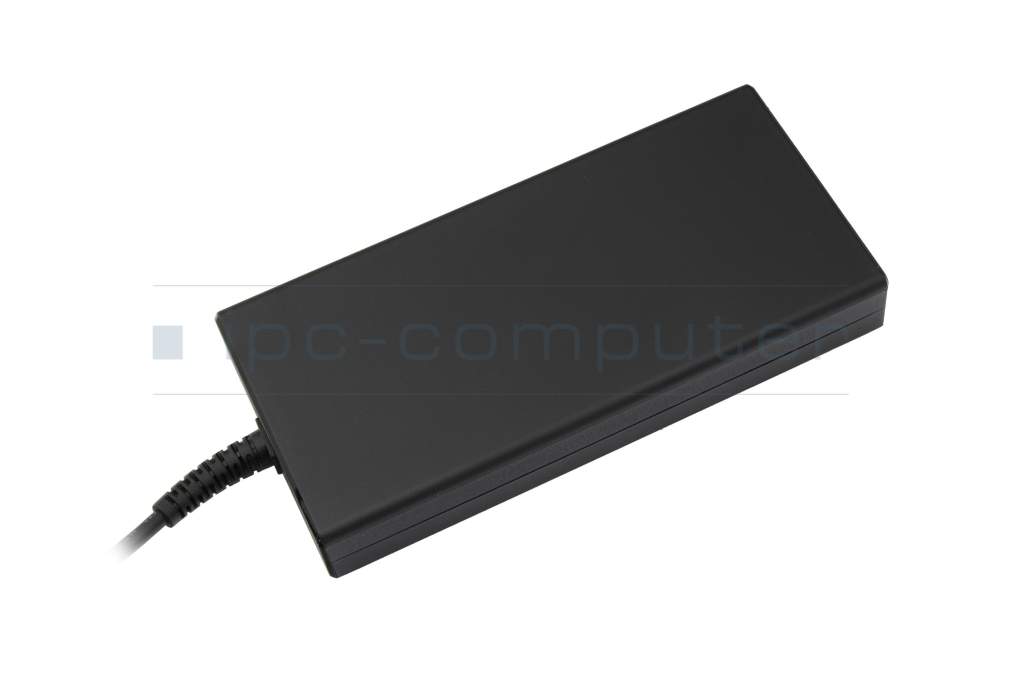

S93-0409530-D04 original MSI AC-adapter 200.0 Watt
Substitute part numbers:
S93-0409510-MSK
S93-0409420-C54 original MSI AC-adapter 240.0 Watt
plus shipping charges

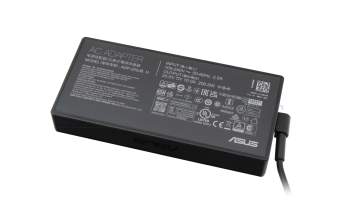

0A001-01120800 original Asus AC-adapter 200.0 Watt
plus shipping charges
0A001-01120800 original Asus AC-adapter 200.0 Watt
plus shipping charges
Product Info
- Manufacturer
- MSI
- Item Number
- S93-0409530-D04
- Sub-Partnumbers
- S93-0409510-MSK,
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
- Manufacturer
- Original directly from MSI
- Intended use
- Laptops
- Color
- black
- Delivery includes
- incl. power cable (3-pole cable C5)
Technical Data
- Tension (volt)
- 20 Volt
- Amperage (ampere)
- 10.0 Ampere
- Output (watt)
- 200.0 Watt
- Input (volt)
- 100-240V / 50-60Hz
- Energy efficiency
- VI

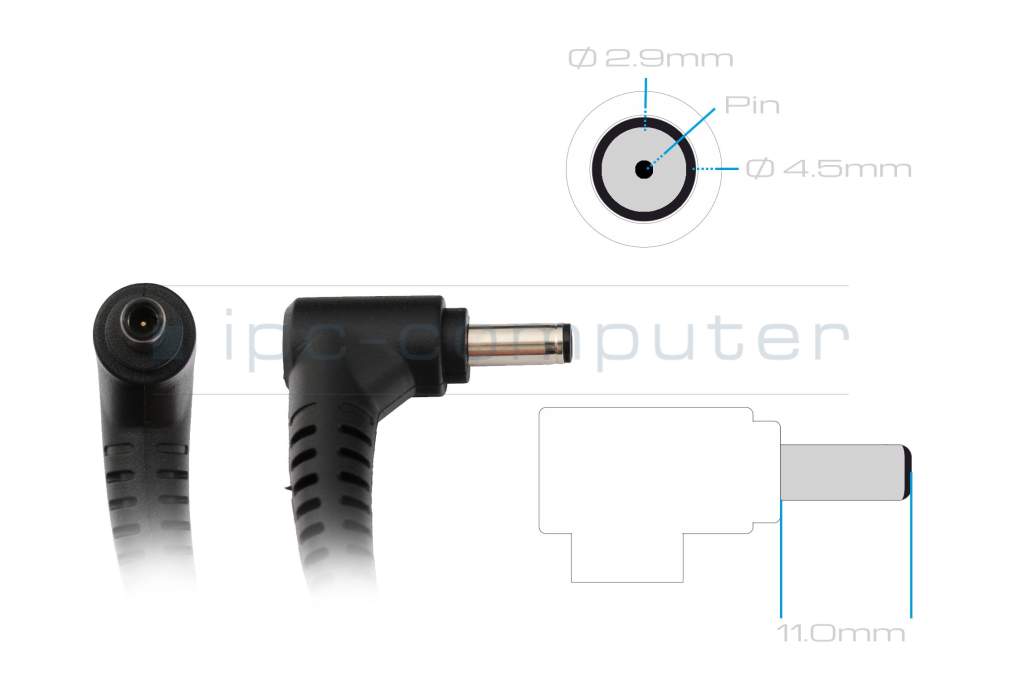

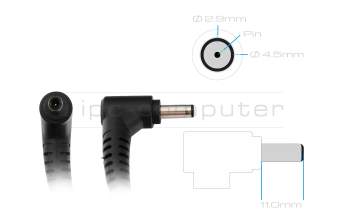

Laptop Plug
- Connector type / shape
- round / 90° angeld
- Connector length (mm)
- 11.0 mm
- Connector diameter outer / inner
- 4.5 mm / 2.9 mm
- Connector with pin
- Yes
- Length of the connector cable (m) (ca.)
- 1.75 m
Weight & Meassurements
- Length / Width / Hight
- 23 mm / 75 mm / 145 mm
More Information
- Overload-, short-circuit- and overheat-protected
- yes
- Seal of approval
-
CCC
CE
EAC
ENEC
NOM NYCE
Singapore Safety Mark
Technical Inspection Association (TÜV)
TÜV Argentina Certificado
UKCA
UL Listed
UL sustainability
Ukraine Safety
Category
- Category
- AC-Adaptor
- Usage
- Laptop
- Excerpt of suitable models for P/N S93-0409530-D04
- MSI Bravo 15 C7VE/C7UCX (MS-158N) , MSI CreatorPro M16 B13VI (MS-1585) , MSI Bravo 15 C7UCXK/C7UCXP (MS-158N) , MSI Crosshair 17 A12UGZK/A12UGSZK (MS-17L3) , MSI Crosshair 15 A12UEZK (MS-1583) , MSI GF66 Katana 12UGSOK/12UGSZOK (MS-1583) , MSI Katana A17 AI B8VEK/B8VFK/B8VGK , MSI Crosshair 17 HX D14VFKG (MS-17T2) , Gigabyte AORUS 17 XE5 , Gigabyte AORUS 17 KE4
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
Important and useful informations about laptop AC adapters
Frequently asked questions about AC adapters
- How do I find out how what the output power (watts) of my power supply is
All the necessary information to calculate it can be found on the back of the power supply. To calculate the output power of the unit, use the specifications listed under "output".
Calculation:
Ampere * Volt = Watt
Example: 4,74 A * 19 V = 90,06 W
The power supply therefor has 90 Watt.
- I have a 65 watt power supply, can I also use one with 90 watt?
Yes, you can use a power supply with a higher wattage, however you need to pay attention that the voltage doesn't deviate more than one volt from the voltage of the original power supply.
It also doesn't work the other way around; your new power supply needs to have at least the same wattage as the old one.
- My laptop battery is no longer charging, is my charger broken?
Not necessarily, try taking your battery out (if possible) and starting the computer while connected to the charger in question. If it starts, the power supply is working but something in the Notebook is broken.
There are also multiple indicator lights, on the laptop, whether it is being charged, also this can be seen in most operating systems. You can also use the indicator light found on some chargers to diagnose an issue with a cable.
- My power supply is getting pretty hot, is that normal?
Power supplies are subject to certain specifications and can reach up to 50°C. The most amount of heat is produced when working on the Notebook and charging the battery at the same time. As long as you can touch your charger without getting burnt, its temperature is probably within specification. However, it is most important, that the heat can be dissipated, therefor you should never put your power supply under a blanket or in a closed drawer.
- Will my battery charge faster with a power supply that has a higher wattage
No, because a circuit in the Notebook controls how much power arrives at the battery and not the charger.
