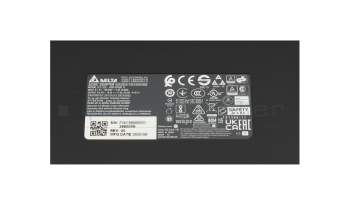

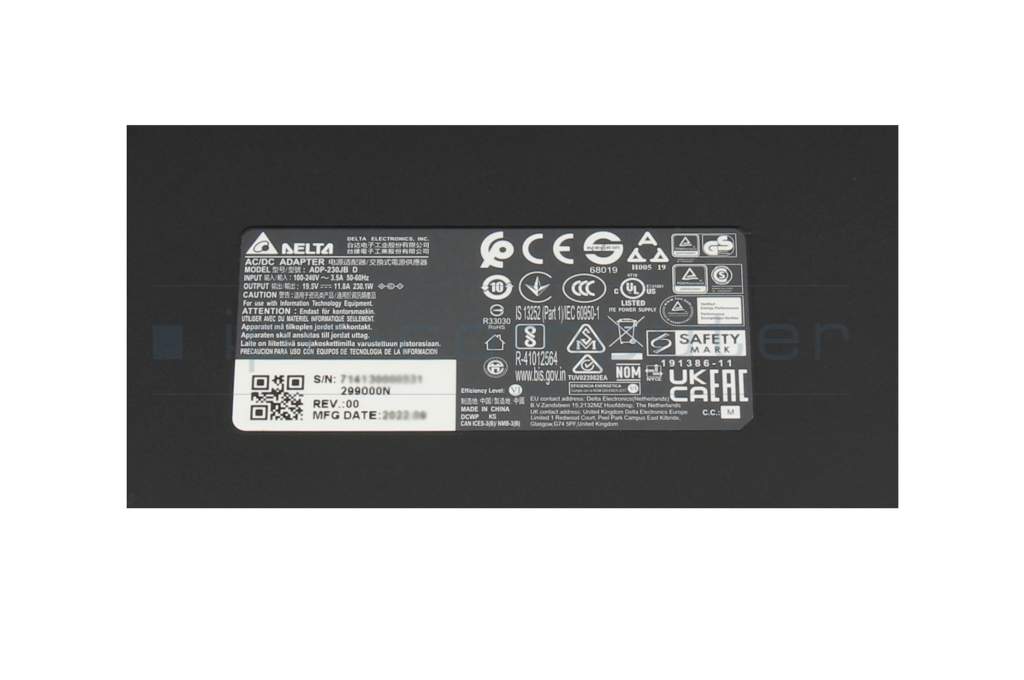

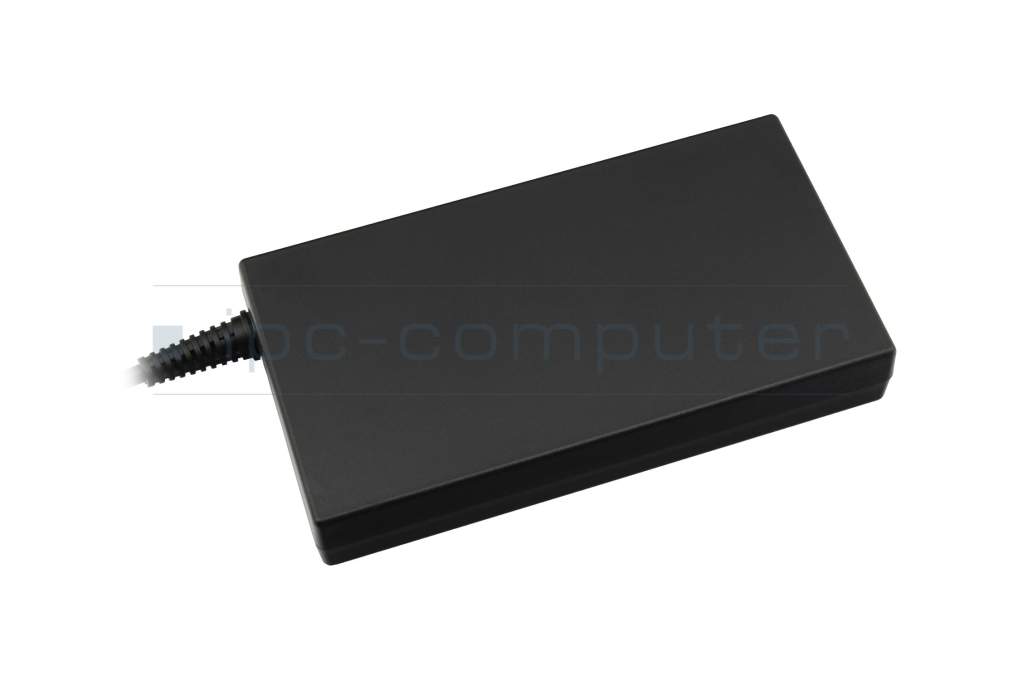

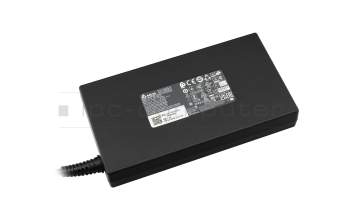

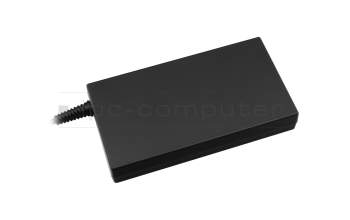

Alternative for PA-1131-07 LiteOn AC-adapter 230.0 Watt from Delta Electronics
Substitute part numbers:
HP 648964-001 (5711045091025), HP 866252-003, HP 910846-001, HP 647982-001, HP TPC-DA59
- Manufacturer
- Delta Electronics
- Substitute part number
- PA-1131-07
- Sub-Partnumbers
- 648964-001, 866252-003, 910846-001, 647982-001, TPC-DA59
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
This part number is a substitute with different specs.
Common data
- Condition
- New
- Manufacturer
- Original directly from Delta Electronics
- Intended use
- All-in-One PC's / Laptops
- Color
- black
- Delivery includes
- incl. power cable (3-pole cable C13)
Technical Data
- Tension (volt)
- 19.5 Volt
- Amperage (ampere)
- 11.8 Ampere
- Output (watt)
- 230.0 Watt
- Input (volt)
- 100-240V / 50-60Hz
- Energy efficiency
- VI

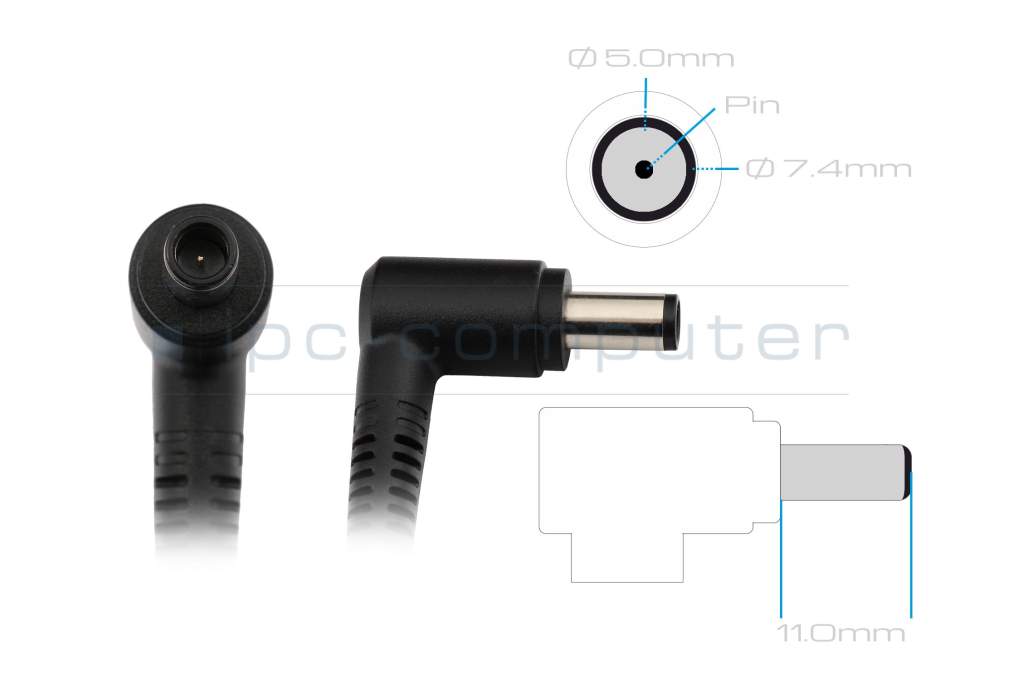

Laptop Plug
- Connector type / shape
- round / 90° angeld
- Connector length (mm)
- 11.0 mm
- Connector diameter outer / inner
- 7.4 mm / 5.0 mm
- Connector with pin
- Yes
- Length of the connector cable (m) (ca.)
- 1.75 m
Weight & Meassurements
- Length / Width / Hight
- 155 mm / 83 mm / 25 mm
More Information
- Overload-, short-circuit- and overheat-protected
- yes
- Seal of approval
-
CCC
CE
EAC
PSE
Technical Inspection Association (TÜV)
UL Listed
Category
- Category
- AC-Adaptor
- Usage
- Laptop
- Excerpt of suitable models for P/N PA-1131-07
- MSI GP65 Leopard 10SFSK/10SESK (MS-16U7) , Asus ROG Strix G15 G512LWS , MSI VR ONE 6RD/7RF (MS-1T21) , Asus ROG Zephyrus M15 GU502LU , MSI GL65 Leopard 10SDR/10SDK/10SEK (MS-16U7) , MSI GE63 Raider 9SF (MS-16P7) , MSI GL63 9RC/9RCX/9SC (MS-16P8) , MSI GL75 9SC/9SCK (MS-17E4) , MSI GP65 Leopard 9SC (MS-16U2) , HP ProDesk 400 G3 Mini-PC
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
