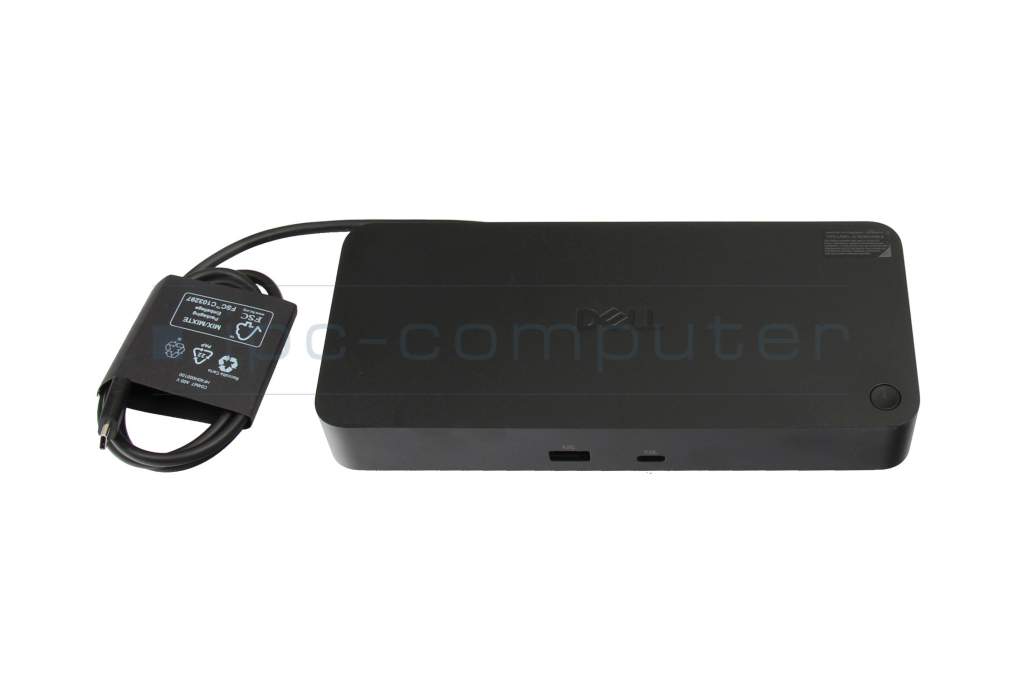

Dell Pro 13 Premium (PA13250) Pro Dock WD25Z incl. 180W Netzteil

245^00€

incl. Tax (19%)
plus shipping charges

30 Tage Rückgabe & Lösungsversprechen
Original Produkt

Only1 pieces in stock.

Standardlieferung 20. January - 20. January
Expresslieferung 19. January
bei Bestellung innerhalb 1 hrs 56 min

Common data

Condition: New

Technical Data

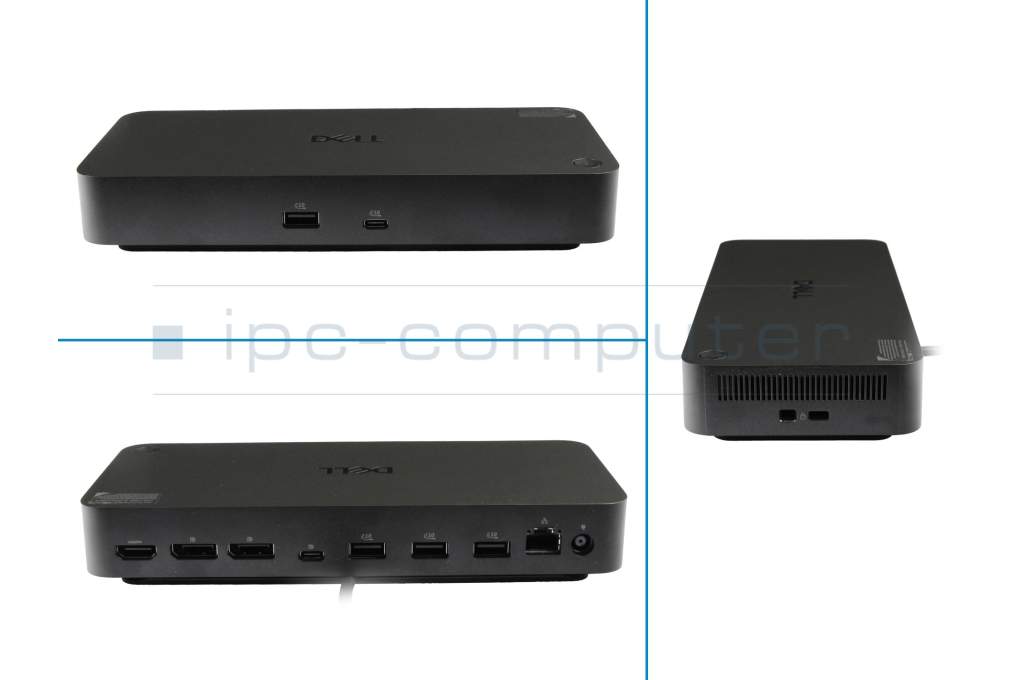

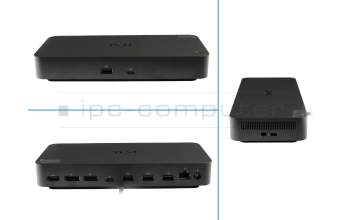

Connexion to the laptop: USB-C 3
Connectors: 1x DC-In (Power supply)
1x Ethernet RJ-45 2.5Gbps
1x HDMI 2.1
1x USB-C 3.2 Gen 2
1x USB-C 3.2 Gen 2 + PowerDelivery
2x DisplayPort 1.4
2x Kensington-Lock
4x USB-A 3.2 Gen 2
Max. resolution of external monitors: 1x 4K - 3840x2160 @ 60Hz
1x 6K - 6144 x 3456 @ 60Hz
2x 5K - 5120x1440 @ 60Hz
2x QHD - 2560x1440
3x FHD - 1920x1080
3x WQHD 3440 × 1440 @ 60 Hz
4x SXGA - 1280x1024 @ 60Hz
4x WQHD 3440 × 1440 @ 60 Hz
Delivery includes: AC-Adapter
Installation manual
Manual
Port Replicator
Power cable
Included ac-adaptor: 180W
Compatible operating systems: ChromeOS
Red Hat Enterprise Linux
Ubuntu
Windows 10 (32bit/64bit)
Windows 11
Length / Width / Hight: 20.5 cm / 9 cm / 3.5 cm

Dell Pro Dock WD25Z - Product Page

Dell Pro Dock – WD25Z: Maximum Productivity and Connectivity

The Dell Pro Dock WD25Z is the powerful hub for your modern workspace, providing reliable power delivery of up to 130 W for Dell systems. With support for up to four monitors and resolutions up to 6K, this docking station enables premium visual display and efficient multitasking. Thanks to future-proof interfaces such as 2.5 Gigabit Ethernet and USB 3.2 Gen 2, it integrates seamlessly into professional IT infrastructures and offers comprehensive management functions.

Technical Specifications

Model: Dell Pro Dock – WD25Z
Manufacturer Part: TK7PD

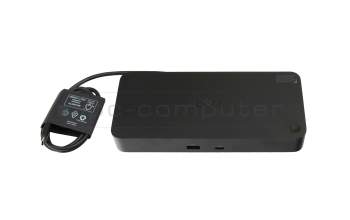

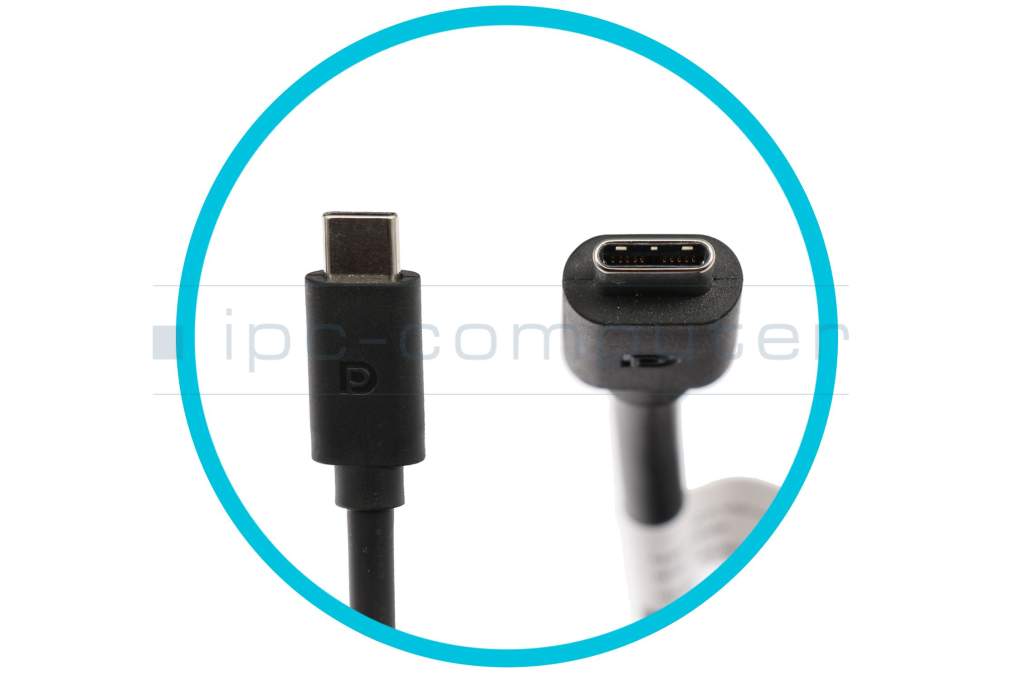

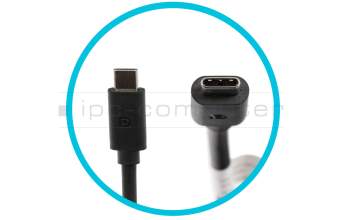

Connectivity: Wired (USB Type-C Host Interface)
Cable Length: 90 cm
Warranty: 3 Year Service

Video and Display Support

Number of Monitor Ports: 4
Max Resolution: Up to 6144 x 3456 (6K) @ 60Hz
Configuration Examples:

• Single Display: 6K @ 60 Hz / 4K @ 60 Hz
• Dual Display: 5K @ 60 Hz / QHD @ 60 Hz
• Triple/Quad Display: WQHD @ 60 Hz / FHD @ 60 Hz

Video Interfaces: 2x DisplayPort 1.4, 1x HDMI 2.1

Interfaces & Ports

Total USB Ports: 6

• 4x USB 3.2 Gen 2 Type-A
• 2x USB Type-C (including 1x USB 3.2 Gen 2)

Network: 1x RJ-45 (2.5 Gigabit Ethernet)

Power Supply

Power Adapter: 180 W (external power adapter)
Power Delivery Output:

• 130 W for Dell Systems
• 96 W for Non-Dell Systems

Management & Security

Features: MAC address pass-through, PXE Boot, Wake-on-LAN, Dock power button sync, Kernel DMA protection, Dell Command Update (DCU).
Security: Kensington security slot, Noble Wedge security slot.

System Compatibility

Operating Systems: Windows 10/11, Ubuntu 24.04, ChromeOS 137, Red Hat Enterprise Linux 9.6.

Physical Data

Dimensions (WxDxH): 90 mm x 35.3 mm x 205 mm
Weight: 550 g

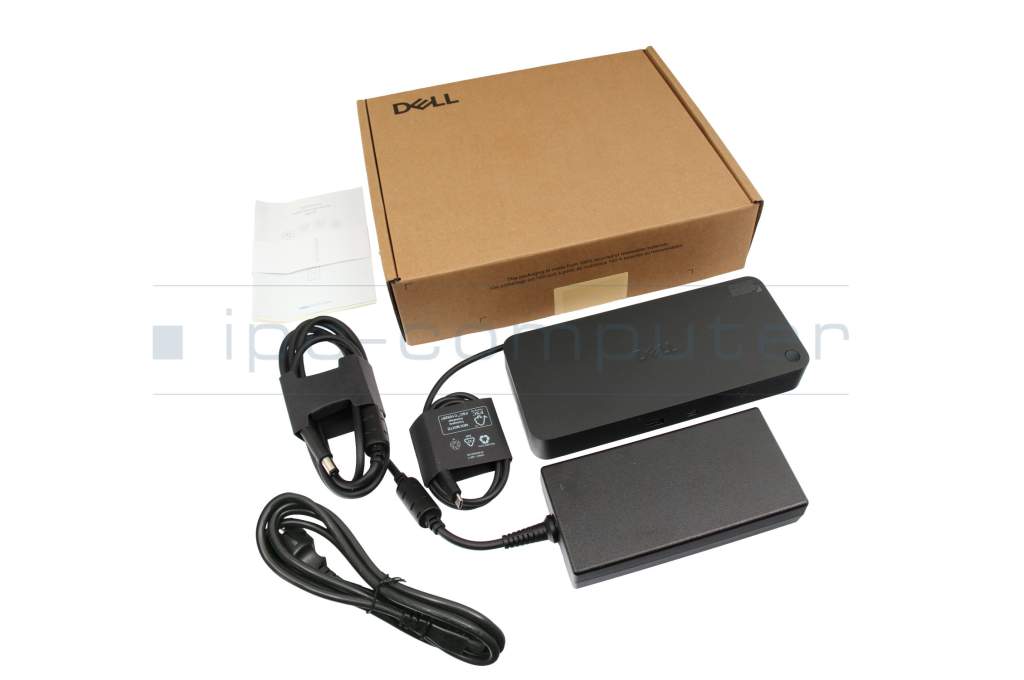

Scope of Delivery

Dell Pro Dock WD25Z, 180 W power adapter, power cord, documentation.
