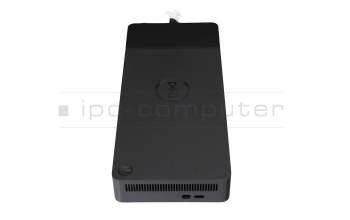

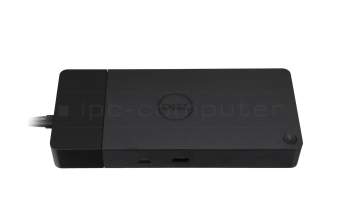

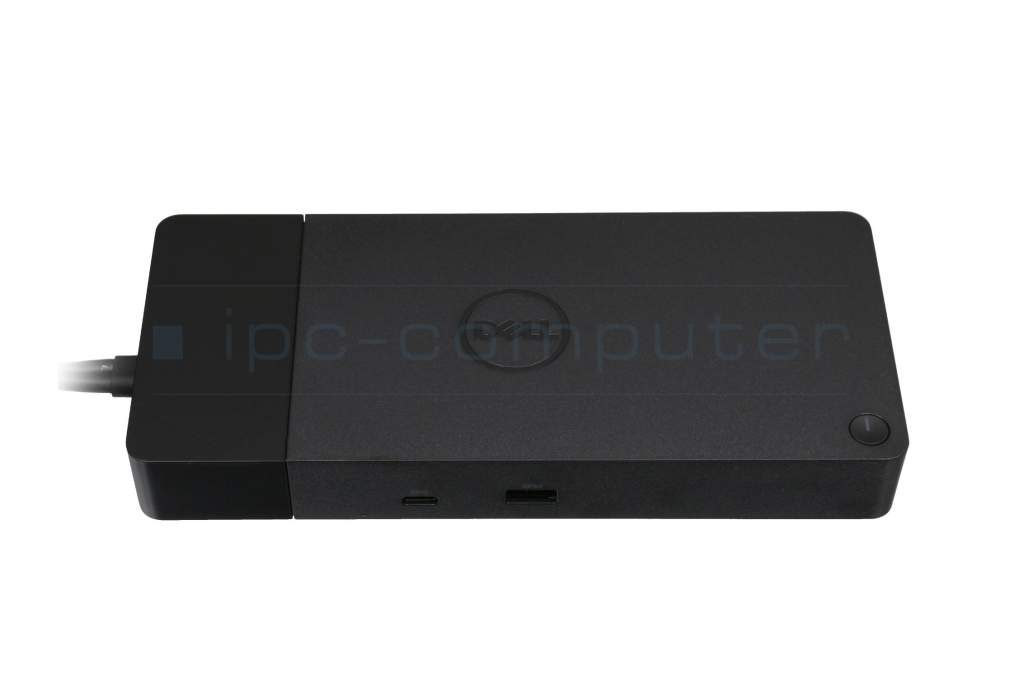

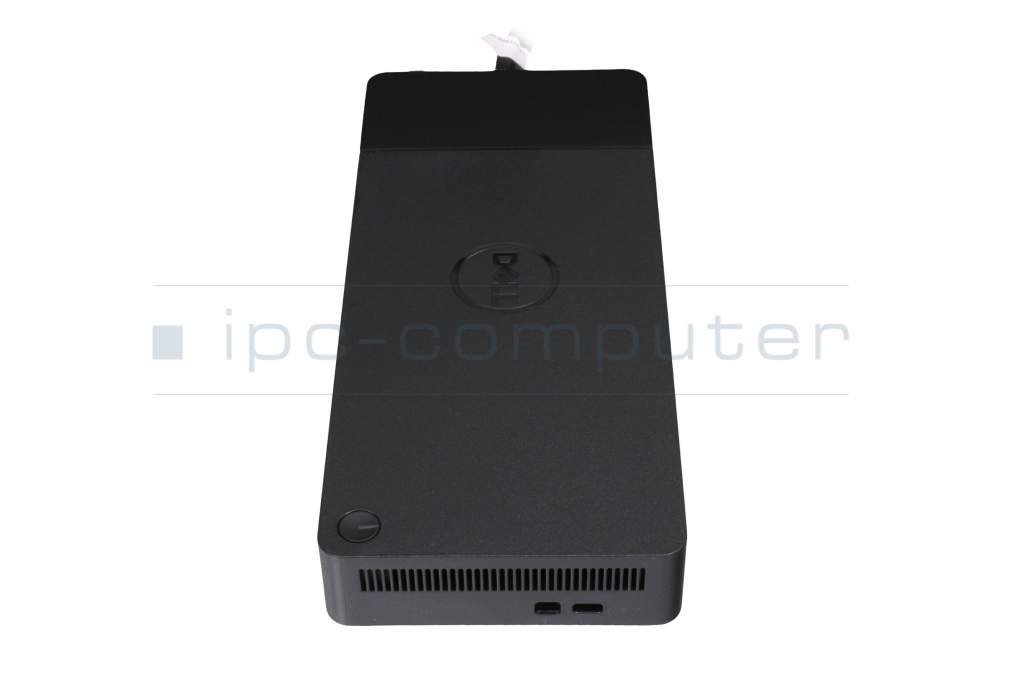

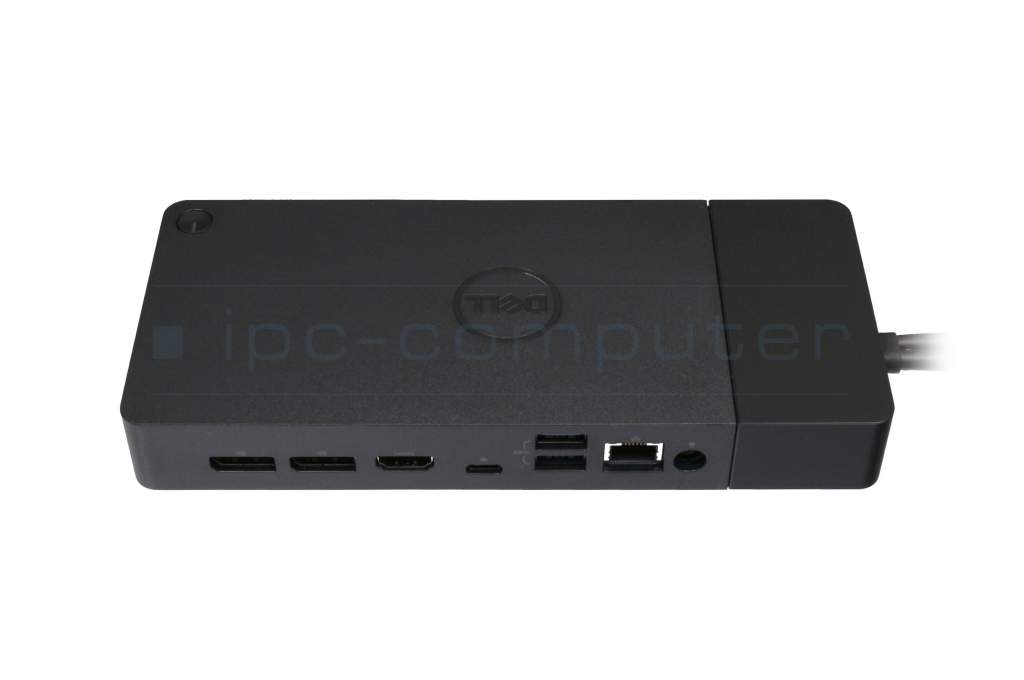

Dell Inspiron 15 (7560) Performance Dock WD19DCS incl. 240W Netzteil

349.00 €

incl. Tax (19%)
plus shipping charges

In stock.

Express shipping possible.

Common data

Condition: New

Technical Data

Connexion to the laptop: Dual USB-C

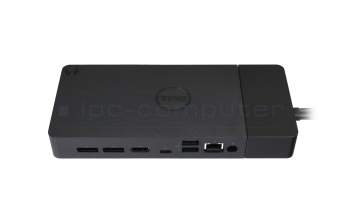

Connectors: 1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x HDMI
2x DisplayPort 1.4
2x USB-C 3.2 Gen 2
3x USB-A 3.2 Gen 2
Delivery includes: AC-Adapter
Docking Station
Documentation
Power cable
Included ac-adaptor: 240W
Compatible operating systems: Linux / Ubuntu
Windows 10 (32bit/64bit)
Windows 11
Length / Width / Hight: 20,5 cm / 9 cm / 3 cm

Power supply specifications according to Dell: 210 W power supply for Dell systems when using Dual USB-C, 90 W power supply for non-Dell systems.

Supported resolutions for dual USB-C operation:
with HBR2 PC
3 x FHD @ 60Hz
3 x QHD @ 60Hz
1 x 4K @ 60Hz

with HBR3 PC
3 x FHD @ 60Hz
3 x QHD @ 60Hz
2 x 4K @ 60Hz
1 x 8K @ 30 Hz

Max. Resolution: 5120 x 2880 @ 60Hz

The maximum resolution and number of external monitors that can be used depends on your notebook/monitors. You can find out whether your devices have the required technology and connections directly from the manufacturer.

Video interfaces:
2 x Full size DP1.4
1 x HDMI
1 x MFDP USB-C

USB ports:
3 x USB-A 3.1 Gen 1
2 x USB-C 3.1 Gen 2

Networking: Gigabit Ethernet

Security slot type:
1 x Kensington lock slot
1 x Noble Wedge lock slot

Supported operating systems:
Microsoft Windows 10/11
Ubuntu 18.04
Red Hat Enterprise Linux

Connection cable: 0.8m

Dimensions: 205mm x 90mm x 29mm

Management Features:
PXE Boot
Wake-On-LAN
MAC address pass-through
Port Disablement
Wake-On-Dock button
Wake-On-Dock
Dell Command Update (DCU)
Error messages and dock event notifications

Note: WD19DCS does not have 3.5 mm connectors.

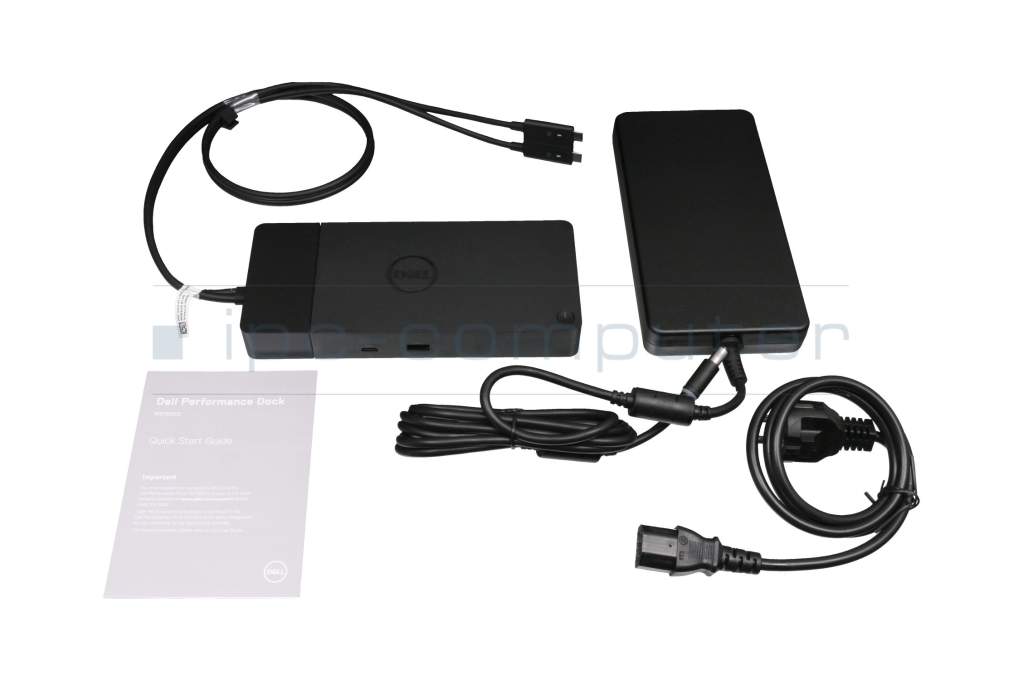

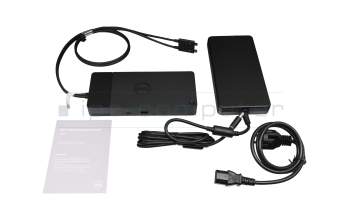

Scope of delivery: Port Replicator, power supply unit (240W), power cable (EU), user manual
