Dell Inspiron 13 (5310) Pro Thunderbolt 4 Dock - WD25TB4 incl. 180W Netzteil

293^00€

incl. Tax (19%)
plus shipping charges

Only1 pieces in stock.

Standardlieferung 9. March - 10. March
Expresslieferung 9. March
bei Bestellung innerhalb 23 hrs 23 min

Common data

Condition: New

Technical Data

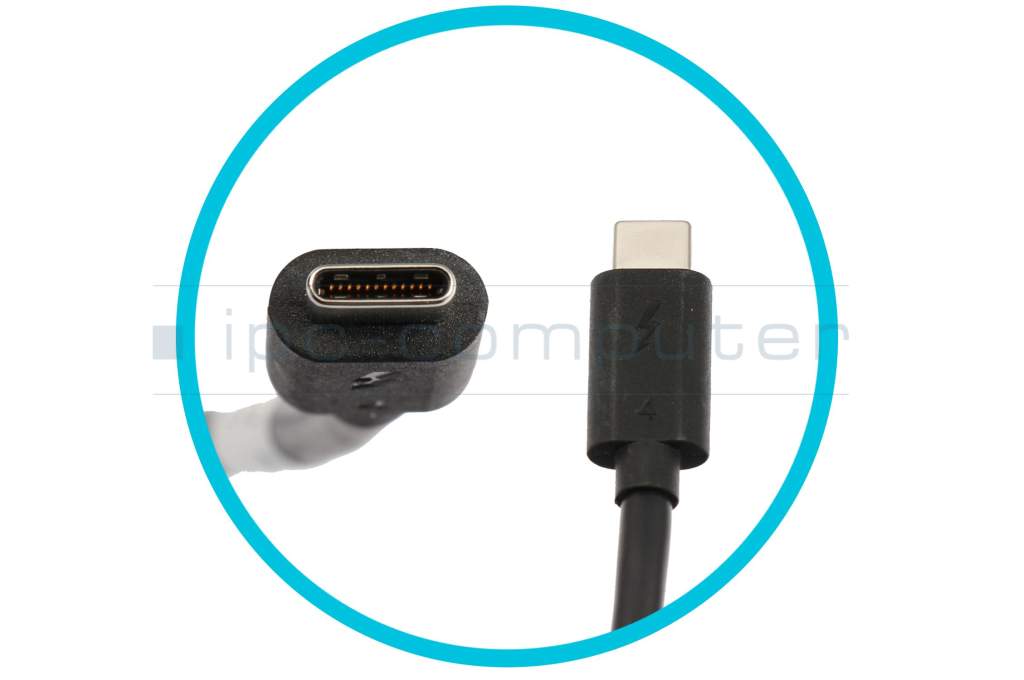

Connexion to the laptop: Thunderbolt 4

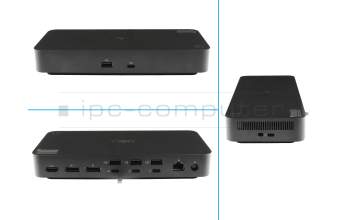

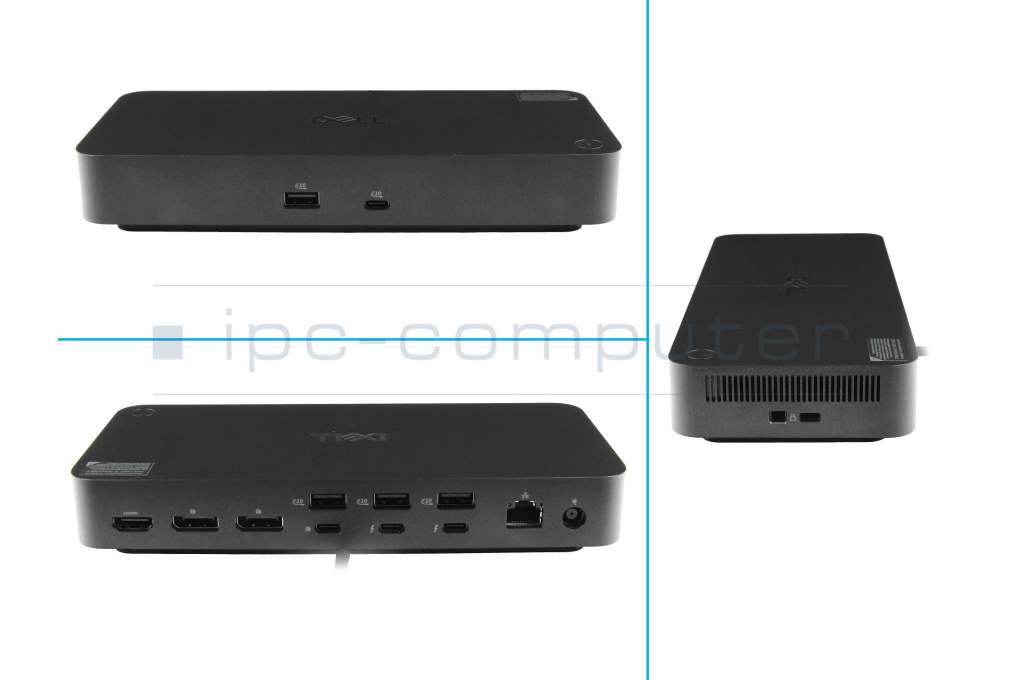

Connectors: 1x HDMI 2.1
1x Kensington-Lock
1x Noble Wedge Lock
1x RJ-45
1x USB-C
1x USB-C 3.2 Gen 2
2x DisplayPort 1.4
2x Thunderbolt 4
4x USB-A 3.2 Gen 2
Max. resolution of external monitors: 4x 4K - 3840x2160 @ 60Hz
4x QHD - 2560x1440 @ 60Hz
4x UHD - 3840x2160 @ 60Hz
4x WQHD 3440 × 1440 @ 60 Hz

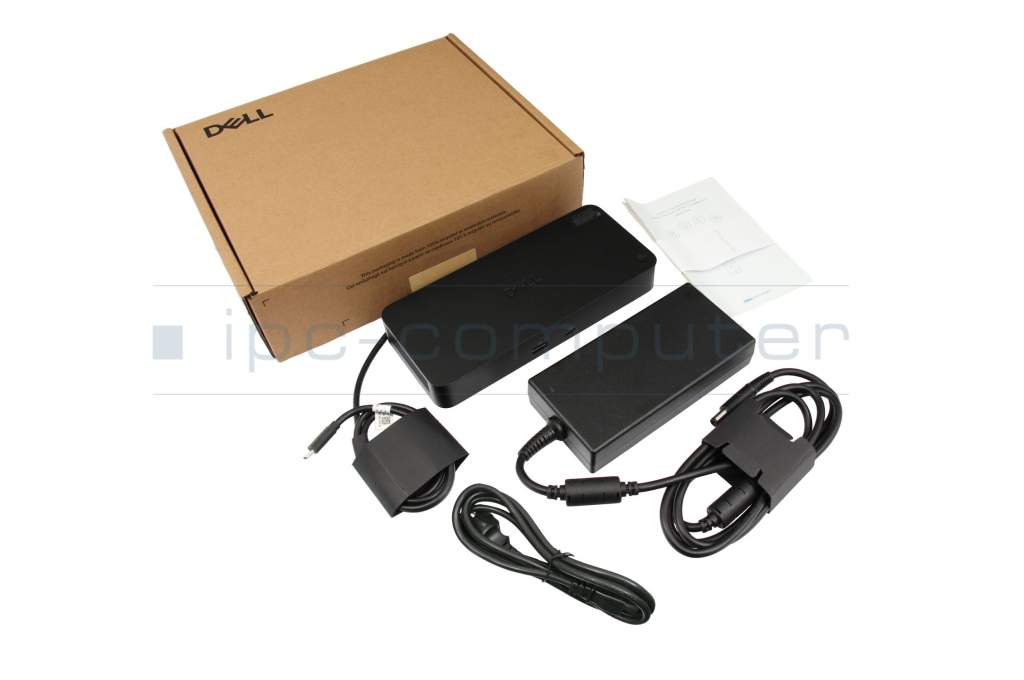

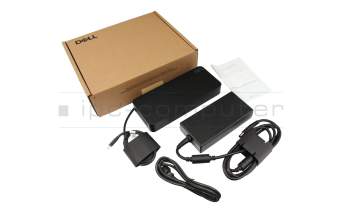

Delivery includes: AC-Adapter
Installation manual
Port Replicator
Power cable
Included ac-adaptor: 180W
Compatible operating systems: ChromeOS
Linux
Linux / Debian
Linux / Red Hat Enterprise
Linux / Ubuntu
Mac OS
Windows 10 (32bit/64bit)
Windows 11
Length / Width / Hight: 20.5 cm / 9 cm / 3.5 cm

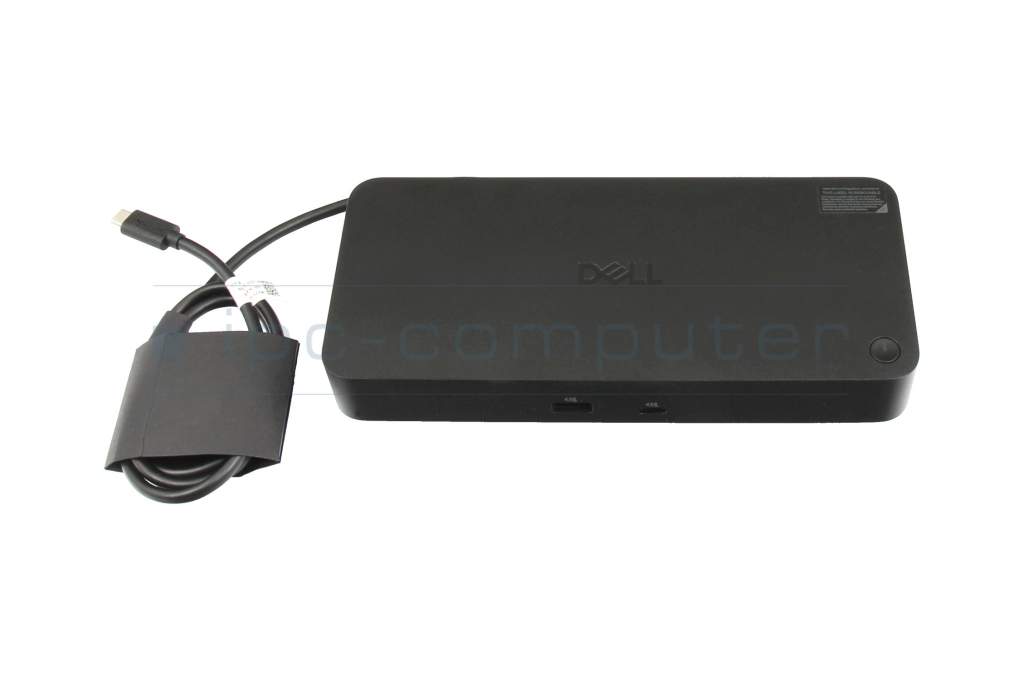

Dell Pro Thunderbolt 4 Dock – WD25TB4

The Dell WD25TB4 Dock is a powerful and versatile docking station designed specifically for demanding workplaces. With generous connectivity, high image resolution, and extensive management features, it supports notebook and desktop PC applications alike. The dock provides stable power, simplifies connection management, and offers secure, wireless networking options for an efficient work environment.

General

Model: Dell WD25TB4 docking station
Color: Black
Weight: 567 g
Dimensions (H x W x D): 205 mm x 90 mm x 35.3 mm
Scope of delivery: Docking station, power adapter, power cord, quick start guide, and safety information
Security features: Kensington security slot, Noble Wedge security socket

Connectivity and interfaces

Host interface: Thunderbolt 4 (2 ports)
USB ports: 6 in total
USB Type-A: 4 ports, USB 3.2 Gen 2
USB Type-C: 2 ports, USB 3.2 Gen 2
Network: 2.5 Gigabit Ethernet (RJ-45)
Video outputs: 2 DisplayPort 1.4, 1 HDMI 2.1
Total monitor outputs: 4 (maximum 8K @ 60Hz, or other resolutions depending on configuration)
Cable length: 83 cm

Display and video resolution

Supported screen modes:
- QHD @ 60Hz
- WQHD @ 60Hz
- 4K @ 60Hz (dual display, quad display)
- 5K @ 60Hz
- 6K @ 60Hz
- 8K @ 60Hz
Maximum supported resolutions: 3840 x 2160 to 7680 x 4320 (8K)
Video resolution details:
- QHD - 60 Hz (quad display)
- WQHD - 60 Hz (triple display)
- 4K - 60 Hz (dual display/quad display)
- 5K - 60 Hz (single display)
- 6K - 60 Hz (dual display)
- 8K - 60 Hz (single display)

Network and communication

Ethernet: 2.5 Gigabit Ethernet
Wi-Fi features: Support for Wi-Fi-to-LAN switch (connectivity based on software feature)

Power

Included power adapter: 180W, compatible with Dell and non-Dell systems
- Power supply for Dell systems: 130W
- Power supply for non-Dell systems: 96W

Management and security

Management features: Intel AMT over Thunderbolt (on select Intel vPro systems), MAC address forwarding, PXE boot, dock power button sync, wake-on-LAN, WLAN-to-LAN switch, kernel DMA protection, firmware updates (host and separation control), Dell Command Update (DCU)
Security slots: Kensington security lock, Noble Wedge security socket

Software compatibility

Supported operating systems: Windows 10, Windows 11, Ubuntu 24.04, macOS, ChromeOS 137, Red Hat Enterprise Linux 9.6

Mounting and design

Dimensions (H x W x D): 205 mm x 90 mm x 35.3 mm
Weight: 567 g

This dock offers reliable connectivity, flexible connection options, and advanced security.
